SculpfunDiode laser engraver

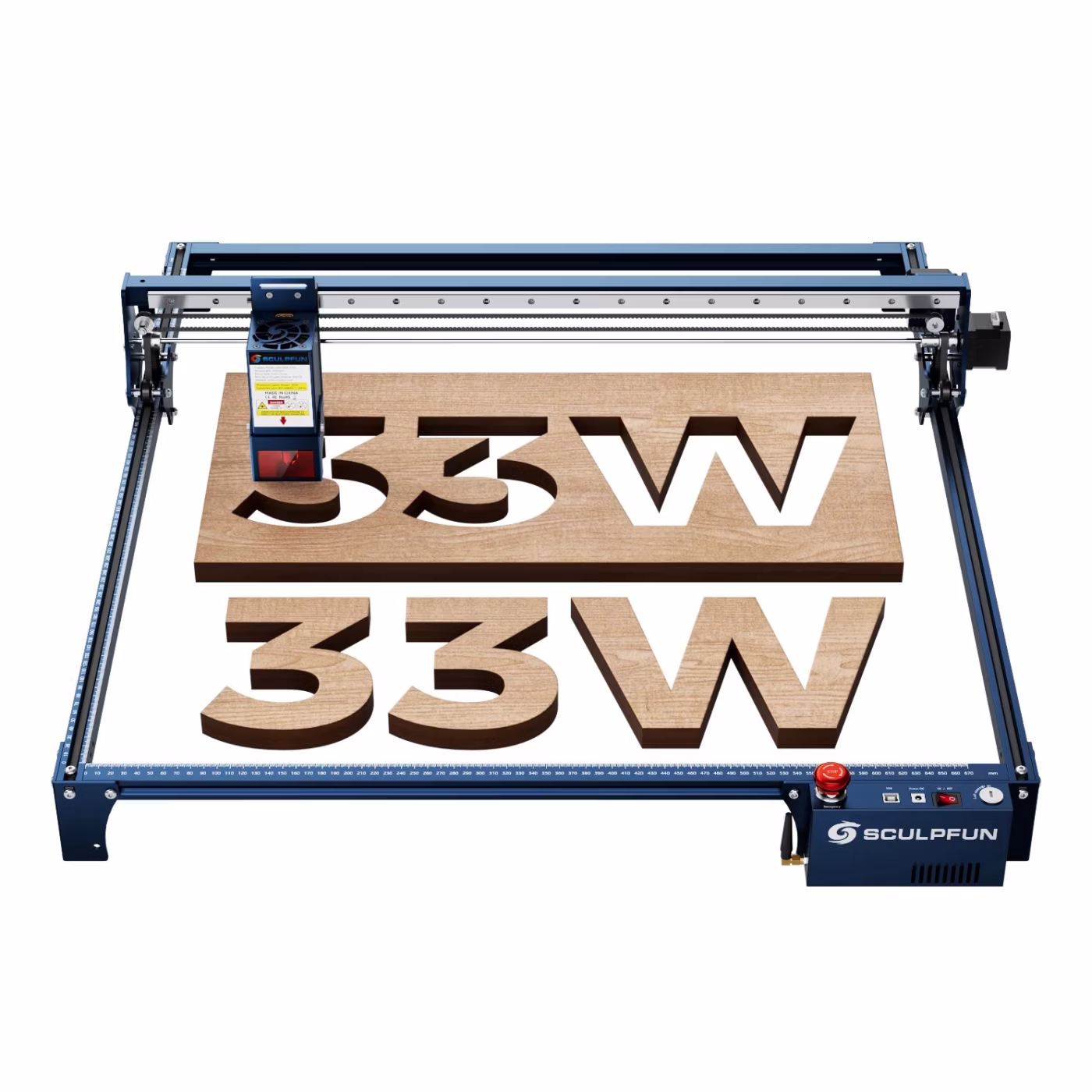

Sculpfun S30 Ultra 33W
Sculpfun S30 Ultra 33W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 33 W, work area 590 × 595 mm, laser spot size 0.1 mm.
8.9Score
Power & cutting8.4
Precision6.7
Work area9.4
Safety5.6
Features & ease of use6.9
price rangeUS$690–850
- Year
- 2023
- Brand
Sculpfun- Popularity
- #95 of 406
Blue diode (≈455 nm)Laser sources
33 WLaser output power
590 × 595 mmWork area
0.1 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is S30 Ultra 33W a good choice?
Work area (surface): 3,510 cm²better than 94% of diode laser engravers
Laser output power: 33 Wbetter than 81% of diode laser engravers
Positioning accuracy: 0.005 mmbetter than 95% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 33 W
Work area
- Work area
- 590 × 595 mm
- Work area width (X)
- 590 mm
- Work area depth (Y)
- 595 mm
- Work area (surface)
- 3,510 cm²
- Work-area extension kit
- Yes
Precision
- Laser spot size
- 0.1 mm
- Positioning accuracy
- 0.005 mm
- Linear rails
- Yes
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- No
- Emergency stop button
- Yes
- Laser shield / filter cover
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- No
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
