SainSmartDiode laser engraver

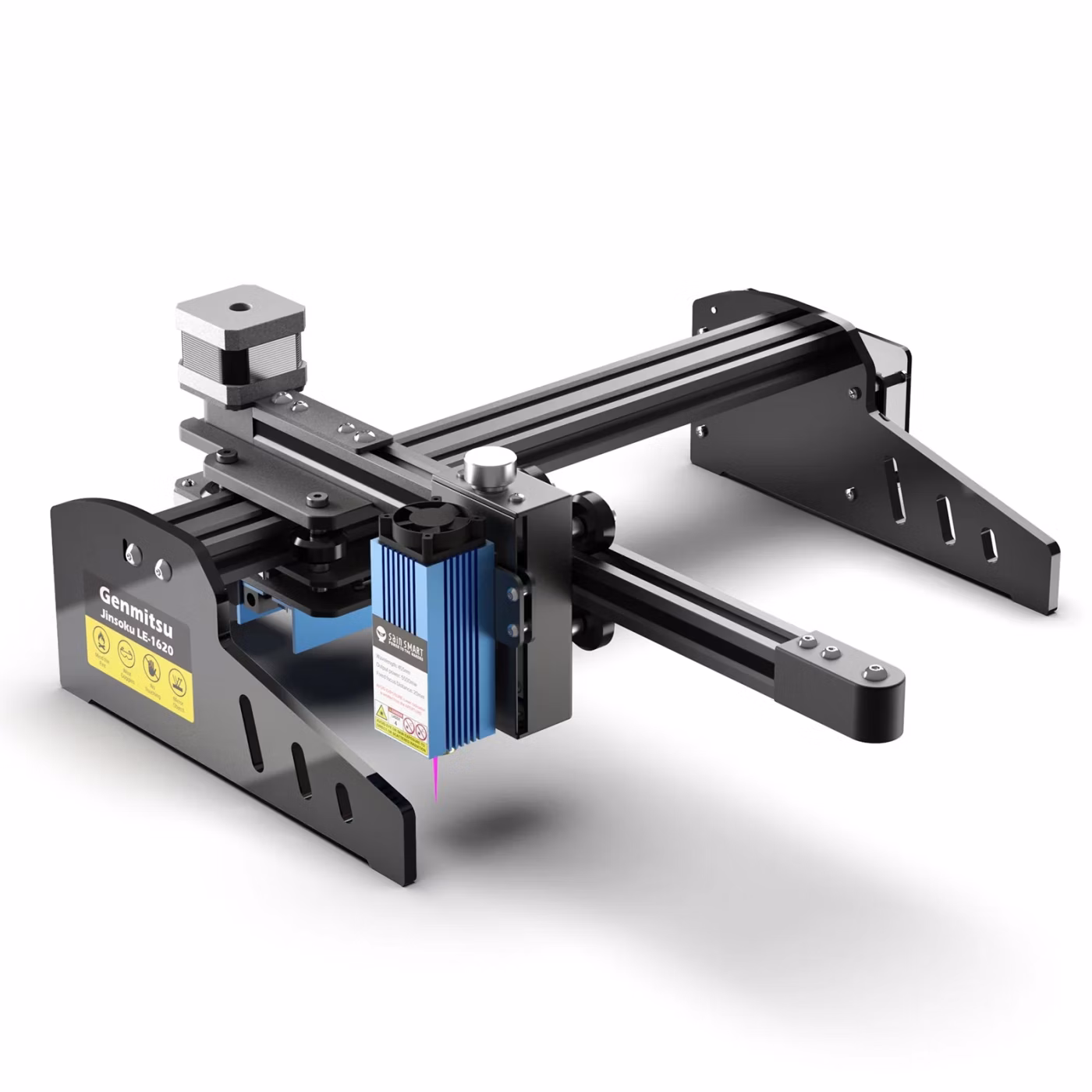

SainSmart Jinsoku LE-1620 5.5W

Name: SainSmart Jinsoku LE-1620 5.5W
Brand: SainSmart

SainSmart Jinsoku LE-1620 5.5W is a diode laser engraver released in 2021. Key specs: laser sources Blue diode (≈455 nm), laser output power 5.5 W, work area 200 × 160 mm.

4.4Score

Power & cutting3.8

Work area4.2

Safety6.4

Features & ease of use3.4

price rangeUS$195–240

Full specifications

Year: 2021
Type: Diode laser engraver
Brand: SainSmart
Popularity: #368 of 406

Blue diode (≈455 nm)Laser sources

5.5 WLaser output power

200 × 160 mmWork area

NoEnclosed (fully covered)

Specifications

Full specifications

General

Laser sources: Blue diode (≈455 nm)
Motion system: Gantry (XY rails)
Two laser sources: No

Laser power

Laser output power: 5.5 W

Work area

Work area: 200 × 160 mm
Work area width (X): 200 mm
Work area depth (Y): 160 mm
Work area (surface): 320 cm²

Safety

Enclosed (fully covered): No
Flame / fire detection: Yes
Laser shield / filter cover: Yes

Features

Air assist: No
Built-in camera: No
Autofocus / auto height: No
Rotary attachment support: Yes

Connectivity & software

Compatible software: LightBurn, LaserGRBL
LightBurn compatible: Yes

Size & power

Width: 410 mm
Depth: 400 mm
Height: 160 mm

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
