OMTechFibre laser marker

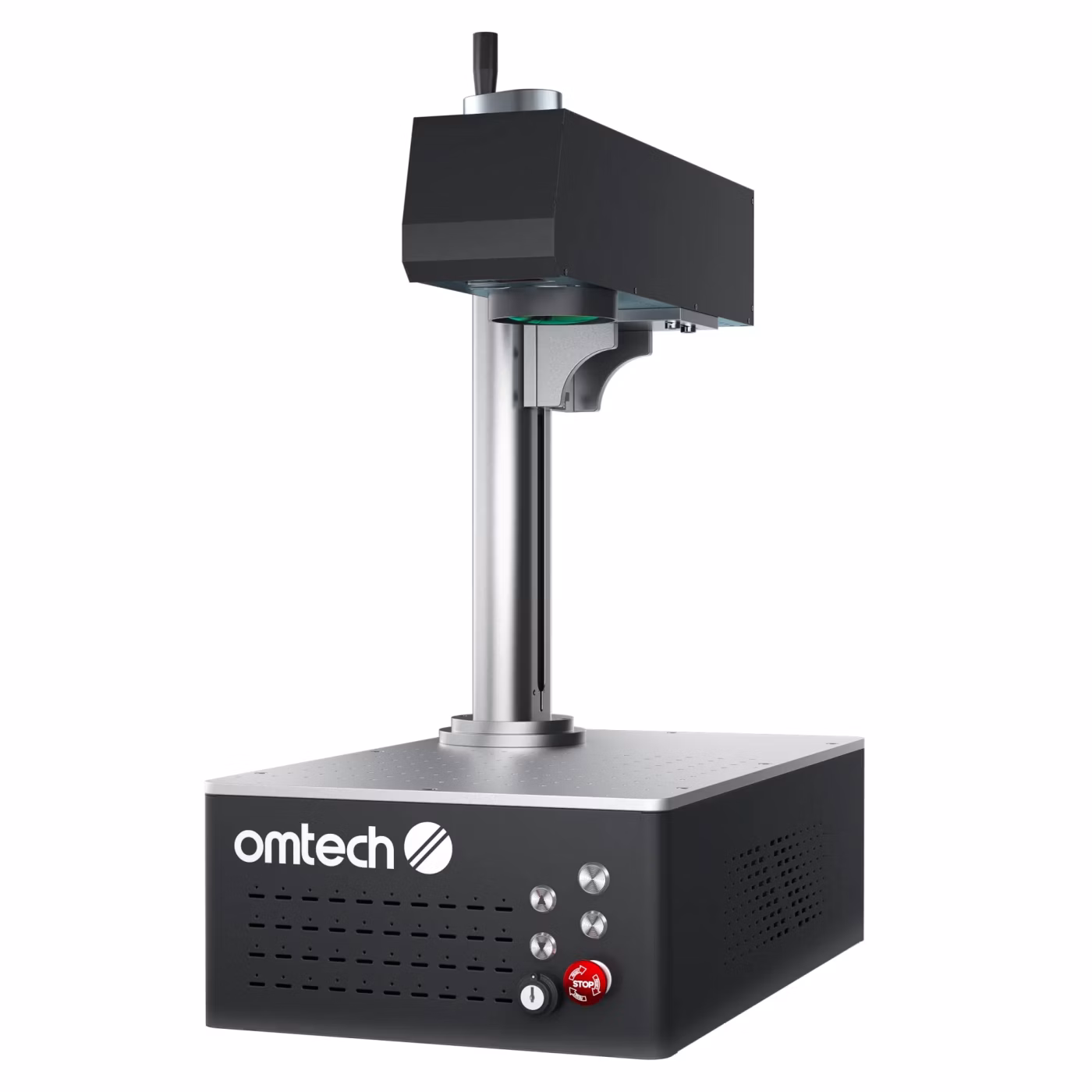

OMTech MOPA 20W
OMTech MOPA 20W is a fibre laser marker released in 2024. Key specs: laser sources Fibre (1064 nm), laser output power 20 W, work area 150 × 150 mm, max engraving / travel speed 10,000 mm/s.
3.5Score
Power & cutting2.7
Speed4.9
Precision3.6
Work area5.1
Safety2.2
Features & ease of use2.2
price rangeUS$2,500–3,100
- Year
- 2024
- Brand
OMTech- Popularity
- #86 of 406
Fibre (1064 nm)Laser sources
20 WLaser output power
150 × 150 mmWork area
10,000 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Class 4 (open beam)Laser safety class
Spec guide
How it ranks among fibre laser markers of 2024
Compared with fibre laser markers released in 2024. Bars show the share of models it beats.
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- MOPA fibre source (adjustable pulse)
- Yes
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 150 × 150 mm
- Work area width (X)
- 150 mm
- Work area depth (Y)
- 150 mm
- Work area (surface)
- 225 cm²
Speed & cutting
- Max engraving / travel speed
- 10,000 mm/s
Precision
- Positioning accuracy
- 0.01 mm
Features
- Built-in camera
- No
- Autofocus / auto height
- No
Connectivity & software
- Connections
- USB
- USB
- Yes
- File formats
- AI, BMP, DXF, GIF, JPG, PLT, PNG, TIF
Size & power
- Width
- 555 mm
- Depth
- 335 mm
- Height
- 720 mm
- Weight
- 28 kg
- Rated power consumption
- 60 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
