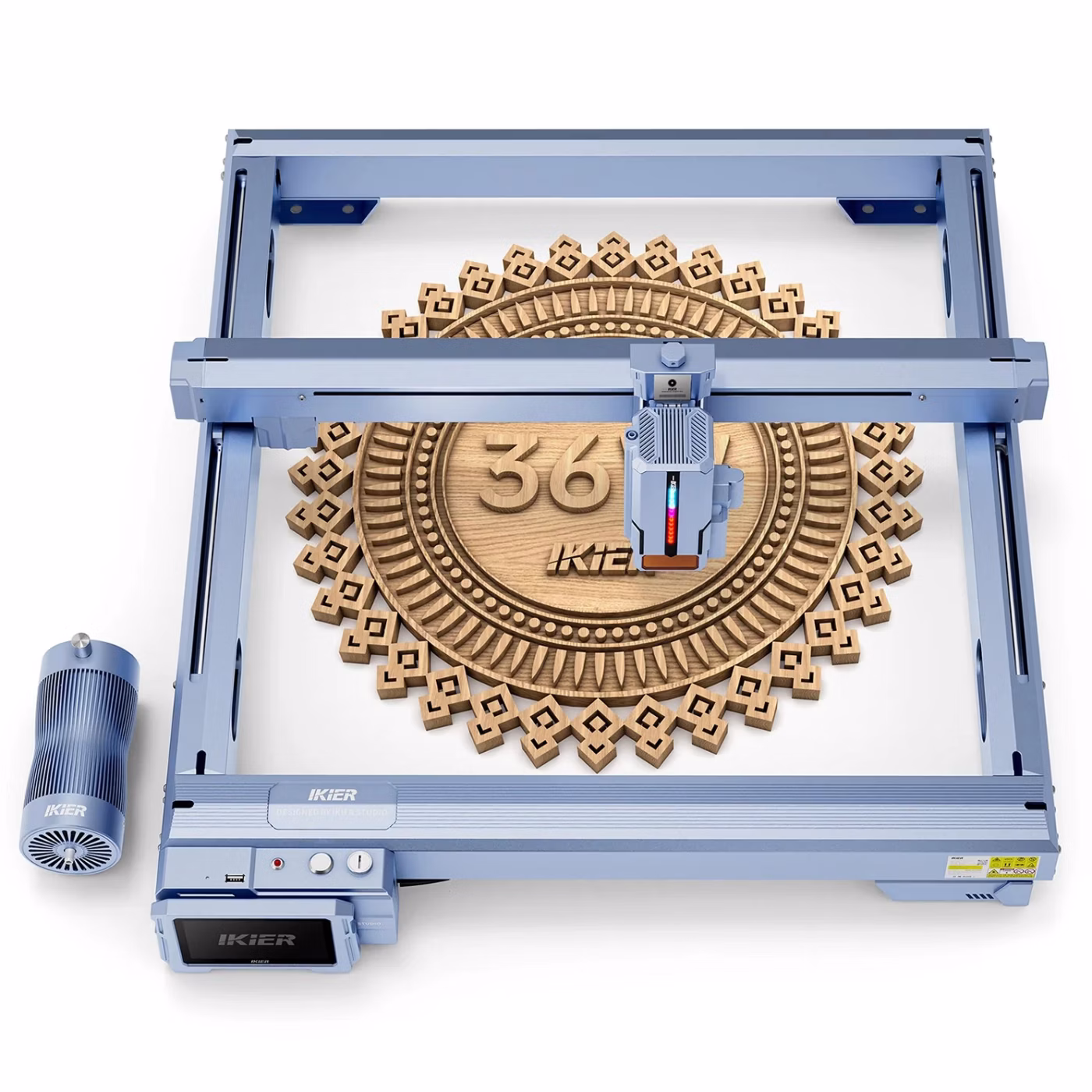

Ikier K1 Ultra 36W
Ikier K1 Ultra 36W is a diode laser engraver released in 2022. Key specs: laser sources Blue diode (≈455 nm), laser output power 36 W, work area 410 × 410 mm, max engraving / travel speed 800 mm/s.
9.4Score
Power & cutting8.6
Speed9.2
Precision5.4
Work area8.5
Safety6.4
Features & ease of use9.3
price rangeUS$310–390
- Year
- 2022
- Brand
Ikier- Popularity
- #359 of 406
Blue diode (≈455 nm)Laser sources
36 WLaser output power
410 × 410 mmWork area
800 mm/sMax engraving / travel speed
0.1 mmLaser spot size
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers
Laser output power · 36 WTop 37%
Max engraving / travel speed · 800 mm/sTop 36%
Laser spot size · 0.1 mmBottom 37%
Compared with every model of this kind in the catalog.
compared with other diode laser engravers
Why is K1 Ultra 36W a good choice?
Laser output power: 36 Wbetter than 83% of diode laser engravers
Work area (surface): 1,681 cm²better than 83% of diode laser engravers
Max engraving / travel speed: 800 mm/sbetter than 92% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 36 W
Work area
- Work area
- 410 × 410 mm
- Work area width (X)
- 410 mm
- Work area depth (Y)
- 410 mm
- Work area (surface)
- 1,681 cm²
Speed & cutting
- Max engraving / travel speed
- 800 mm/s
Precision
- Laser spot size
- 0.1 mm
- Positioning accuracy
- 0.01 mm
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
- File formats
- SVG, DXF, JPG, PNG, BMP, TIF
Size & power
- Width
- 650 mm
- Depth
- 750 mm
- Height
- 222 mm
- Weight
- 12 kg
- Input voltage
- 100–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
