IkierDiode laser engraver

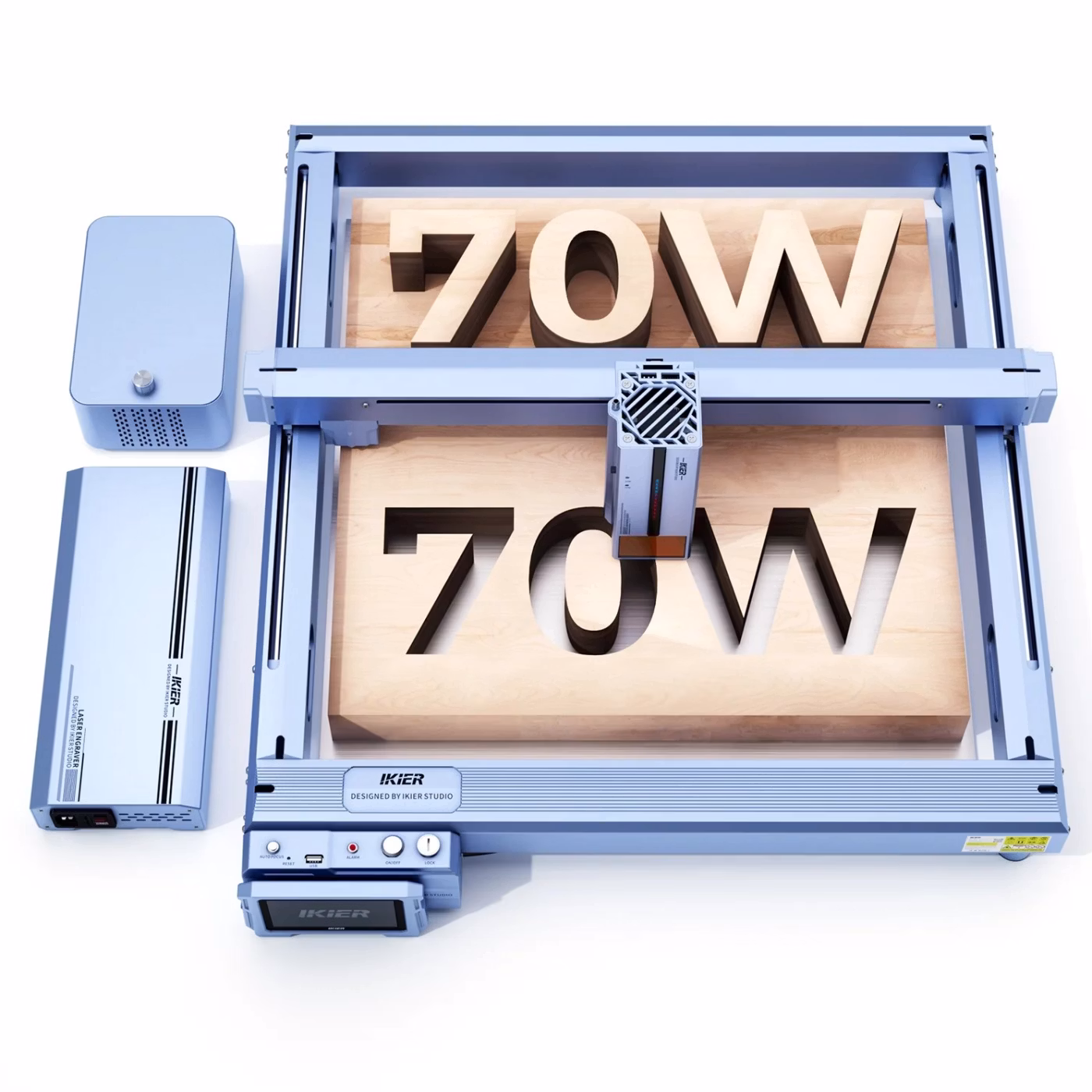

Ikier K1 Pro Max 70W
Ikier K1 Pro Max 70W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 70 W, work area 410 × 410 mm, max engraving / travel speed 900 mm/s.
9.3Score
Power & cutting9.6
Speed9.4
Precision3.8
Work area8.5
Safety6.7
Features & ease of use7.9
price rangeUS$1,550–1,950
- Year
- 2023
- Brand
Ikier- Popularity
- #305 of 406
Blue diode (≈455 nm)Laser sources
70 WLaser output power
410 × 410 mmWork area
900 mm/sMax engraving / travel speed
0.2 mmLaser spot size
30 mmMax cutting depth – wood / plywood (one pass)
NoEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 70 WTop 11%
Max engraving / travel speed · 900 mm/sTop 24%
Laser spot size · 0.2 mmBottom 5%
Max cutting depth – wood / plywood (one pass) · 30 mmTop 7%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is K1 Pro Max 70W a good choice?
Laser output power: 70 Wbetter than 96% of diode laser engravers
Max engraving / travel speed: 900 mm/sbetter than 95% of diode laser engravers
Work area (surface): 1,681 cm²better than 83% of diode laser engravers
Max cutting depth – wood / plywood (one pass): 30 mmbetter than 92% of diode laser engravers
Weak points
Laser spot size: 0.2 mmworse than 95% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 70 W
Work area
- Work area
- 410 × 410 mm
- Work area width (X)
- 410 mm
- Work area depth (Y)
- 410 mm
- Work area (surface)
- 1,681 cm²
Speed & cutting
- Max engraving / travel speed
- 900 mm/s
- Max cutting depth – wood / plywood (one pass)
- 30 mm
Precision
- Laser spot size
- 0.2 mm
- Positioning accuracy
- 0.01 mm
- Linear rails
- Yes
Safety
- Enclosed (fully covered)
- No
- Flame / fire detection
- Yes
- Tilt / movement sensor
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
- Offline engraving (no computer)
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
- File formats
- SVG, DXF, JPG, PNG, BMP, TIF
Size & power
- Width
- 780 mm
- Depth
- 500 mm
- Height
- 153 mm
- Weight
- 12 kg
- Input voltage
- 100–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
