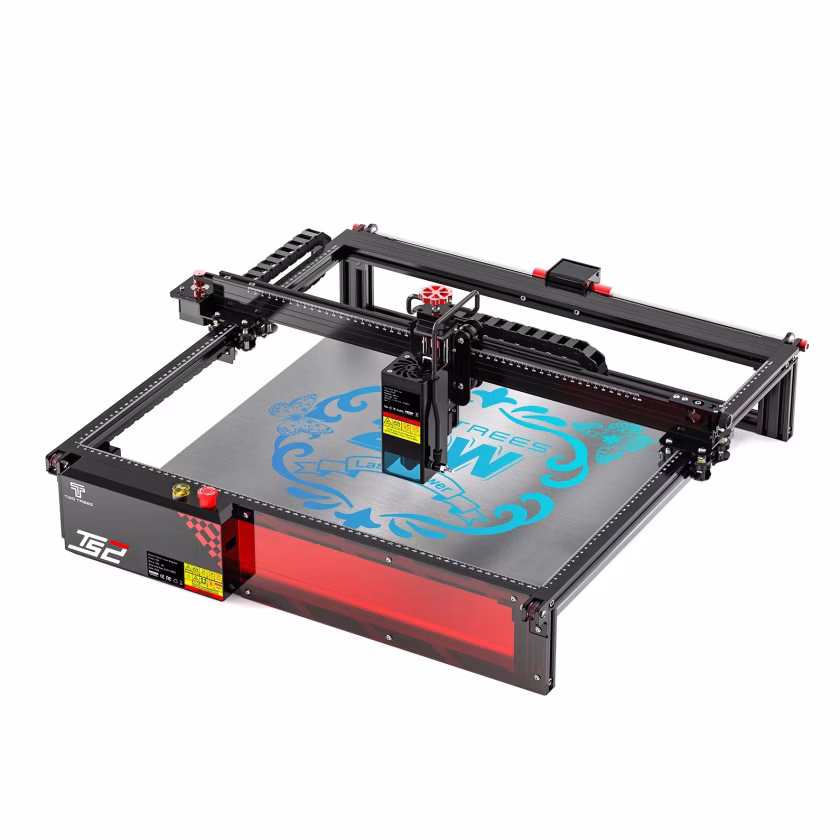

Sculpfun C1 Mini 3W vs Two Trees TS2 20W
What C1 Mini 3W does better (0) and where TS2 20W wins (7) — every spec side by side.
vs
2.5Power & cutting7.7
9.4Precision2.1
3.5Work area8.5
3.2Safety3.2
2.7Features & ease of use7.9
Why is C1 Mini 3W better than TS2 20W?
C1 Mini 3W has no measurable advantages in this pair.
Why is TS2 20W better than C1 Mini 3W?
- Laser output power3 W vs 20 W6.7×
- Work area (surface)195 cm² vs 1,681 cm²8.6×
- Air assistNo · C1 Mini 3W: Yes
- Autofocus / auto heightNo · C1 Mini 3W: Yes
- Work area width (X)150 mm vs 410 mm2.7×
- Work area depth (Y)130 mm vs 410 mm3.2×
- Wi-FiNo · C1 Mini 3W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 3 W | 20 W |
| Work area | ||
| Work area | 150 × 130 mm | 410 × 410 mm |
| Work area width (X) | 150 mm | 410 mm |
| Work area depth (Y) | 130 mm | 410 mm |
| Work area (surface) | 195 cm² | 1,681 cm² |
| Work-area extension kit | — | Yes |
| Precision | ||
| Laser spot size | 0.04 mm | — |
| Positioning accuracy | — | 0.21 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | Yes |
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi, SD / USB drive |
| Wi-Fi | No | Yes |
| USB | Yes | Yes |
| SD / TF card | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 290 mm | — |
| Depth | 250 mm | — |
| Height | 140 mm | — |
| Weight | 1.1 kg | — |
