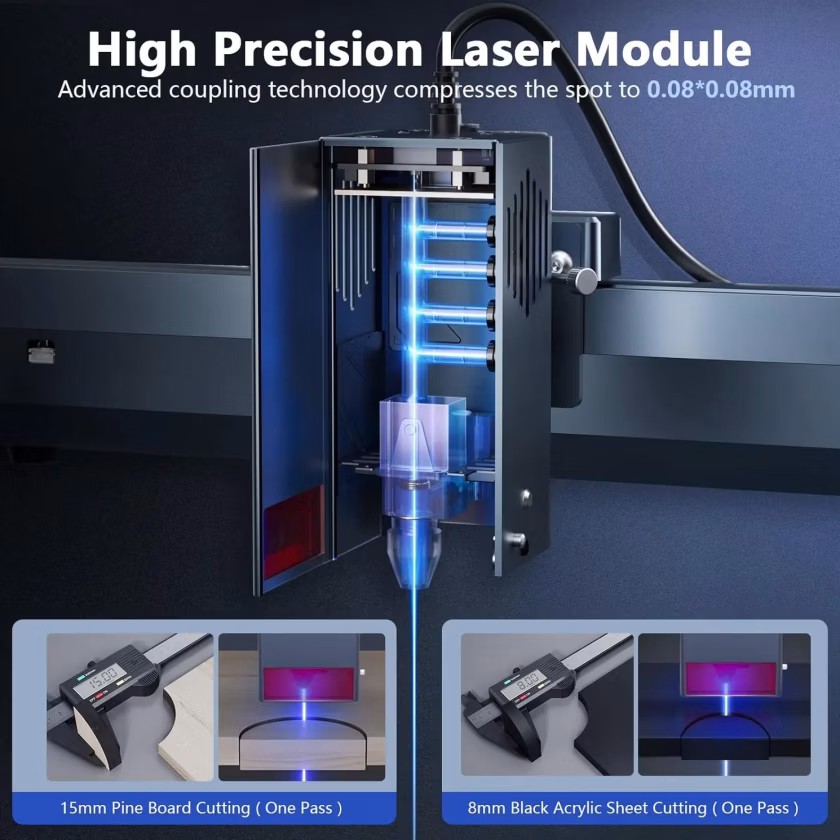

Ortur LM3 40W vs xTool F1
What LM3 40W does better (4) and where F1 wins (3) — every spec side by side.
Why is LM3 40W better than F1?
- Work area (surface)1,420 cm² vs 132 cm²10.8×
- Air assistYes · F1: No
- Work area width (X)400 mm vs 115 mm3.5×
- Work area depth (Y)355 mm vs 115 mm3.1×
Why is F1 better than LM3 40W?
- Enclosed (fully covered)No · LM3 40W: Yes
- Built-in cameraNo · LM3 40W: Yes
- Two laser sourcesNo · LM3 40W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm), Infrared diode (1064 nm) |
| Motion system | Gantry (XY rails) | Galvo (scanning mirrors) |
| Two laser sources | No | Yes |
| Wavelength | — | 455 nm |
| Laser power | ||
| Laser output power | 40 W | — |
| Second laser output power | — | 10 W |
| Work area | ||
| Work area | 400 × 355 mm | 115 × 115 mm |
| Work area width (X) | 400 mm | 115 mm |
| Work area depth (Y) | 355 mm | 115 mm |
| Work area (surface) | 1,420 cm² | 132 cm² |
| Max workpiece height | — | 113 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | — | 4,000 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 6 mm |
| Precision | ||
| Laser spot size | 0.08 mm | 0.08 mm |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Flame / fire detection | No | No |
| Emergency stop button | — | Yes |
| Built-in fume filter / purifier | Yes | — |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | Yes |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | — |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Compatible software | LightBurn, LaserGRBL | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | — | SVG, DXF, PNG, JPG, BMP |
| Size & power | ||
| Width | — | 179 mm |
| Depth | — | 235 mm |
| Height | — | 334 mm |
| Weight | — | 4.6 kg |
