- Reno 45W vs Maker MF1624-60 60W

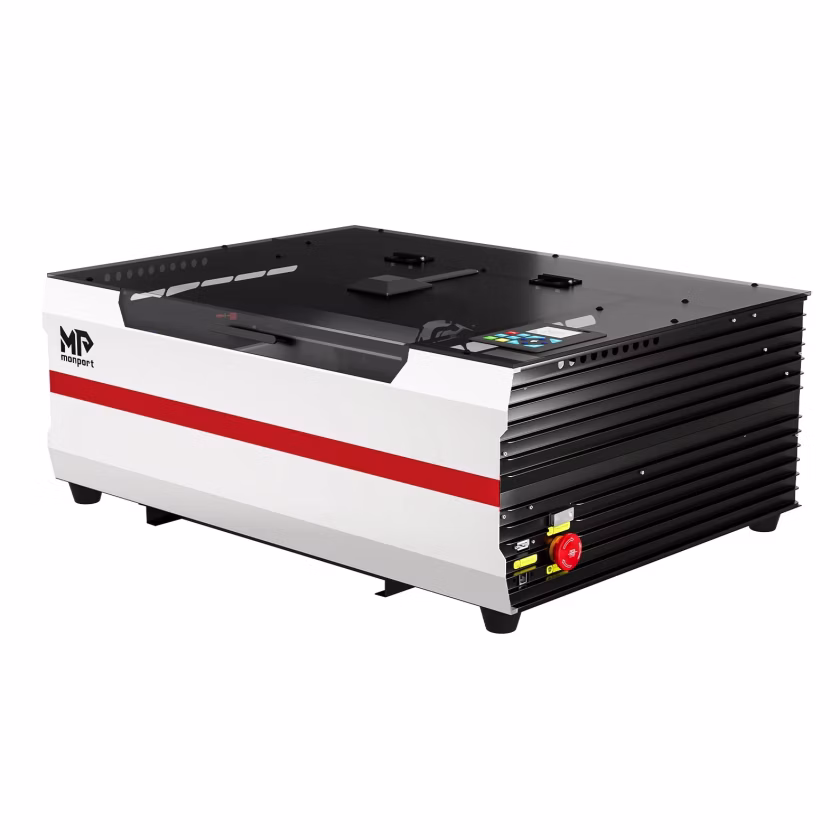

Monport Reno 45W vs OMTech Maker MF1624-60 60W
What Reno 45W does better (5) and where Maker MF1624-60 60W wins (3) — every spec side by side.
vs
3.0Power & cutting4.9
3.5Speed5.8
6.2Work area5.6
4.7Safety4.7
7.1Features & ease of use3.1
Dimensions
Size comparison
Reno 45WMaker MF1624-60 60W
| Reno 45W | Maker MF1624-60 60W | Difference | |
|---|---|---|---|
| Height | 285 mm | 660 mm | −375 mm |
| Width | 800 mm | 1,140 mm | −340 mm |
| Depth | 575 mm | 749 mm | −174 mm |
| Weight | 30.4 kg | 84.8 kg | −54.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Reno 45W better than Maker MF1624-60 60W?
- Autofocus / auto heightYes · Maker MF1624-60 60W: No
- Work area (surface)2,531 cm² vs 2,477 cm²+2%
- Weight30.4 kg vs 84.8 kg2.8×
- Wi-FiYes · Maker MF1624-60 60W: No
- Work area width (X)711 mm vs 610 mm+17%
Why is Maker MF1624-60 60W better than Reno 45W?
- Laser output power45 W vs 60 W+33%
- Max engraving / travel speed500 mm/s vs 600 mm/s+20%
- Work area depth (Y)356 mm vs 406 mm+14%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 10,600 nm | — |
| Laser power | ||
| Laser output power | 45 W | 60 W |
| Work area | ||
| Work area | 711 × 356 mm | 610 × 406 mm |
| Work area width (X) | 711 mm | 610 mm |
| Work area depth (Y) | 356 mm | 406 mm |
| Work area (surface) | 2,531 cm² | 2,477 cm² |
| Pass-through slot | Yes | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 500 mm/s | 600 mm/s |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Features | ||
| Air assist | Yes | — |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | Yes | Yes |
| Water cooling | Yes | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, SD / USB drive | USB, Ethernet |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| Ethernet (LAN) | — | Yes |
| SD / TF card | Yes | — |
| Compatible software | LightBurn, LaserGRBL | RDWorks |
| LightBurn compatible | Yes | — |
| File formats | — | AI, BMP, DXF, GIF |
| Size & power | ||
| Width | 800 mm | 1,140 mm |
| Depth | 575 mm | 749 mm |
| Height | 285 mm | 660 mm |
| Weight | 30.4 kg | 84.8 kg |
| Rated power consumption | 45 W | 60 W |
