- Ray5 20W vs S30 5W

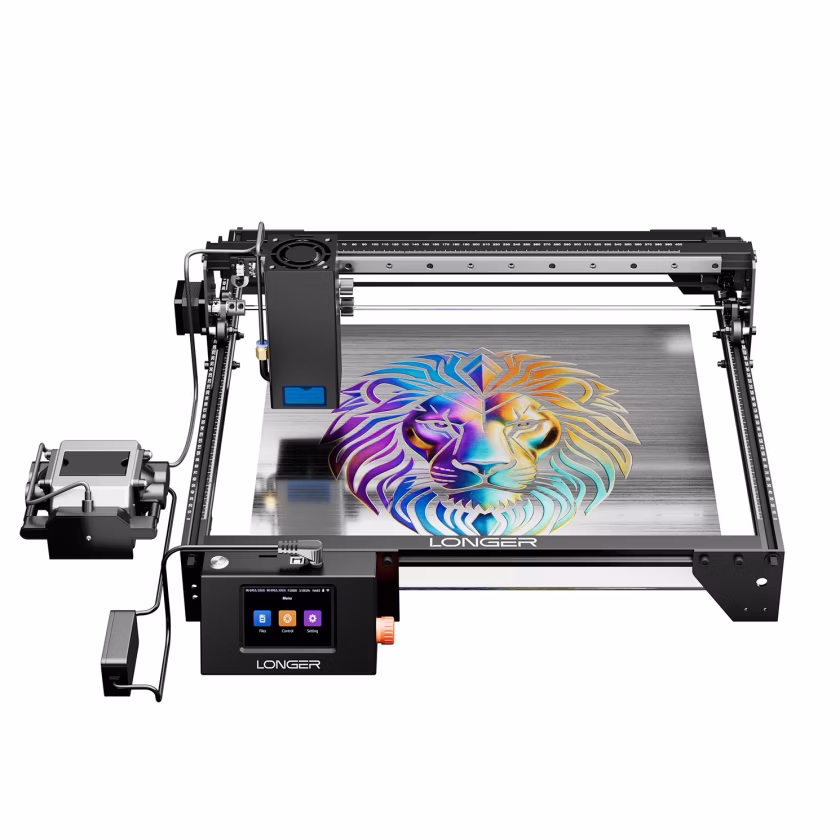

Longer Ray5 20W vs Sculpfun S30 5W
What Ray5 20W does better (2) and where S30 5W wins (1) — every spec side by side.
Why is Ray5 20W better than S30 5W?
- Laser output power20 W vs 5 W4×
- Flame / fire detectionYes · S30 5W: No
Why is S30 5W better than Ray5 20W?
- Laser spot size0.15 mm vs 0.06 mm2.5×
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 460 nm | 455 nm |
| Laser power | ||
| Laser output power | 20 W | 5 W |
| Work area | ||
| Work area | 385 × 385 mm | 380 × 385 mm |
| Work area width (X) | 385 mm | 380 mm |
| Work area depth (Y) | 385 mm | 385 mm |
| Work area (surface) | 1,482 cm² | 1,463 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 400 mm/s | — |
| Max cutting depth – wood / plywood (one pass) | 30 mm | — |
| Precision | ||
| Laser spot size | 0.15 mm | 0.06 mm |
| Positioning accuracy | — | 0.005 mm |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | Class 4 (open beam) | — |
| Flame / fire detection | Yes | No |
| Emergency stop button | Yes | — |
| Tilt / movement sensor | Yes | — |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, SD / USB drive | USB, Wi-Fi, Bluetooth, SD / USB drive |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Bluetooth | — | Yes |
| SD / TF card | Yes | Yes |
| Phone app control | Yes | — |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, PNG, BMP, GIF, SVG, AI | — |
| Size & power | ||
| Rated power consumption | — | 60 W |
