- Reizer Pro 40W vs Ray5 20W

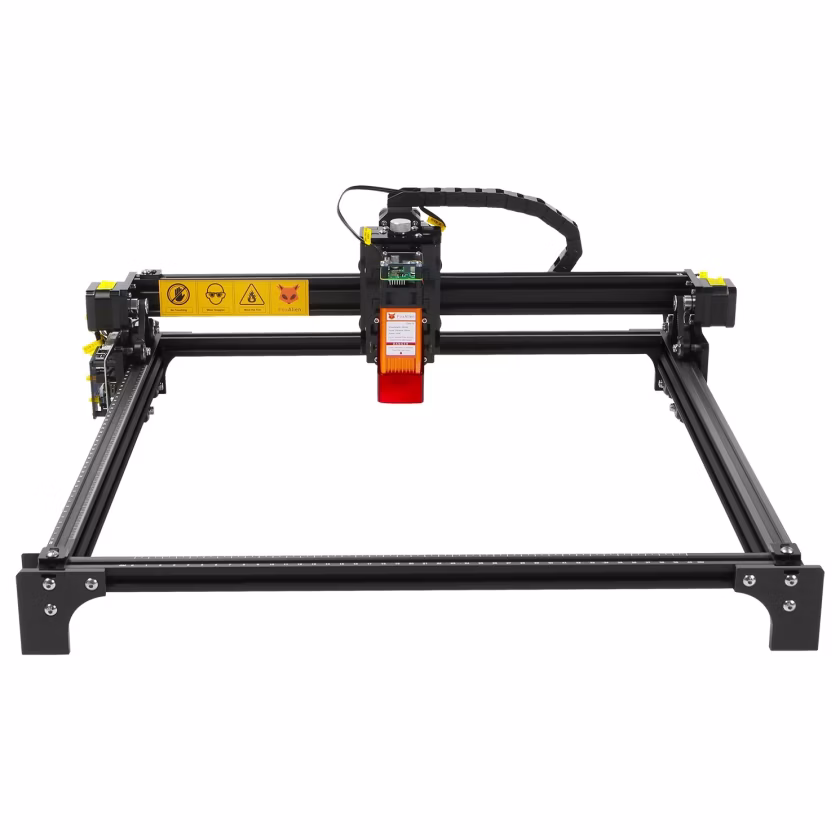

FoxAlien Reizer Pro 40W vs Longer Ray5 20W
What Reizer Pro 40W does better (4) and where Ray5 20W wins (3) — every spec side by side.
vs
9.0Power & cutting8.2
2.5Precision3.0
6.9Work area6.8
3.2Safety4.3
2.2Features & ease of use6.2
Why is Reizer Pro 40W better than Ray5 20W?
- Laser output power40 W vs 20 W2×
- Work area (surface)1,600 cm² vs 1,482 cm²+8%
- Work area width (X)400 mm vs 385 mm+4%
- Work area depth (Y)400 mm vs 385 mm+4%
Why is Ray5 20W better than Reizer Pro 40W?
- Air assistNo · Reizer Pro 40W: Yes
- Flame / fire detectionNo · Reizer Pro 40W: Yes
- Wi-FiNo · Reizer Pro 40W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 460 nm |
| Laser power | ||
| Laser output power | 40 W | 20 W |
| Work area | ||
| Work area | 400 × 400 mm | 385 × 385 mm |
| Work area width (X) | 400 mm | 385 mm |
| Work area depth (Y) | 400 mm | 385 mm |
| Work area (surface) | 1,600 cm² | 1,482 cm² |
| Max workpiece height | 40 mm | — |
| Speed & cutting | ||
| Max engraving / travel speed | — | 400 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 30 mm |
| Precision | ||
| Laser spot size | — | 0.15 mm |
| Positioning accuracy | 0.1 mm | — |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | — | Class 4 (open beam) |
| Flame / fire detection | No | Yes |
| Emergency stop button | — | Yes |
| Tilt / movement sensor | — | Yes |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Touchscreen / control panel | — | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi, SD / USB drive |
| Wi-Fi | No | Yes |
| USB | Yes | Yes |
| SD / TF card | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn, LaserGRBL, Candle | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | — | JPG, PNG, BMP, GIF, SVG, AI |
