- K1 Ultra 36W vs S30 Ultra 11W

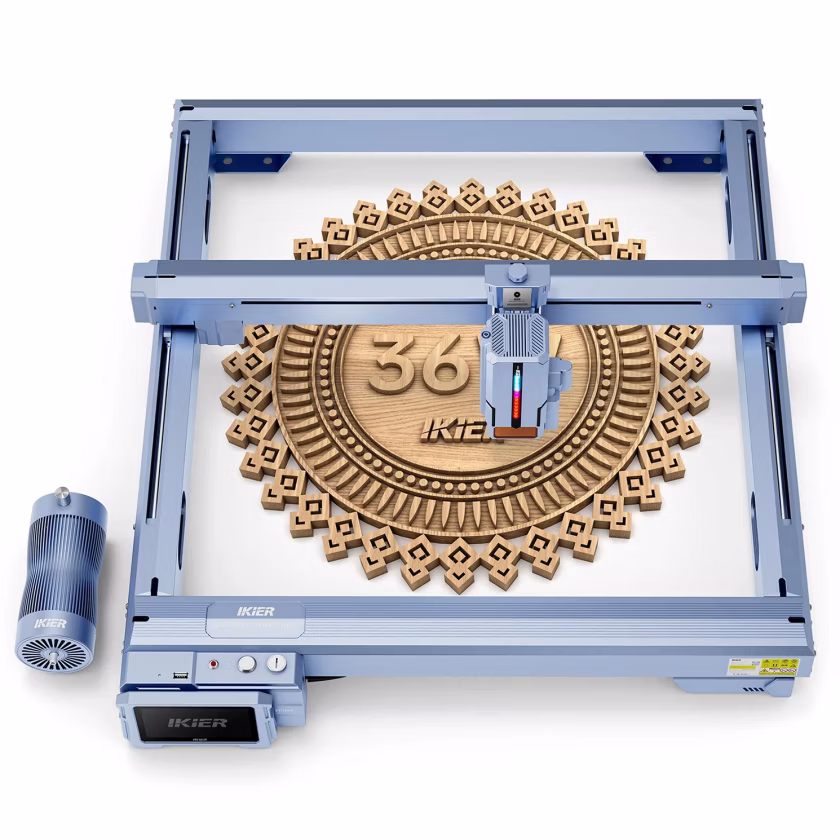

Ikier K1 Ultra 36W vs Sculpfun S30 Ultra 11W
What K1 Ultra 36W does better (3) and where S30 Ultra 11W wins (4) — every spec side by side.
vs
8.6Power & cutting6.5
5.4Precision6.7
8.5Work area9.4
6.4Safety5.6
9.3Features & ease of use6.9
Why is K1 Ultra 36W better than S30 Ultra 11W?
- Laser output power36 W vs 11 W3.3×
- Autofocus / auto heightYes · S30 Ultra 11W: No
- Flame / fire detectionYes · S30 Ultra 11W: No
Why is S30 Ultra 11W better than K1 Ultra 36W?
- Work area (surface)1,681 cm² vs 3,510 cm²2.1×
- Positioning accuracy0.01 mm vs 0.005 mm2×
- Work area depth (Y)410 mm vs 595 mm+45%
- Work area width (X)410 mm vs 590 mm+44%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | 455 nm |
| Frame material | — | Aluminium |
| Laser power | ||
| Laser output power | 36 W | 11 W |
| Work area | ||
| Work area | 410 × 410 mm | 590 × 595 mm |
| Work area width (X) | 410 mm | 590 mm |
| Work area depth (Y) | 410 mm | 595 mm |
| Work area (surface) | 1,681 cm² | 3,510 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 800 mm/s | — |
| Precision | ||
| Laser spot size | 0.1 mm | 0.1 mm |
| Positioning accuracy | 0.01 mm | 0.005 mm |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | Yes | No |
| Emergency stop button | — | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, SD / USB drive | USB, Wi-Fi, Bluetooth |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Bluetooth | — | Yes |
| SD / TF card | Yes | — |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | SVG, DXF, JPG, PNG, BMP, TIF | — |
| Size & power | ||
| Width | 650 mm | — |
| Depth | 750 mm | — |
| Height | 222 mm | — |
| Weight | 12 kg | — |
| Input voltage | 100–240 V | — |
