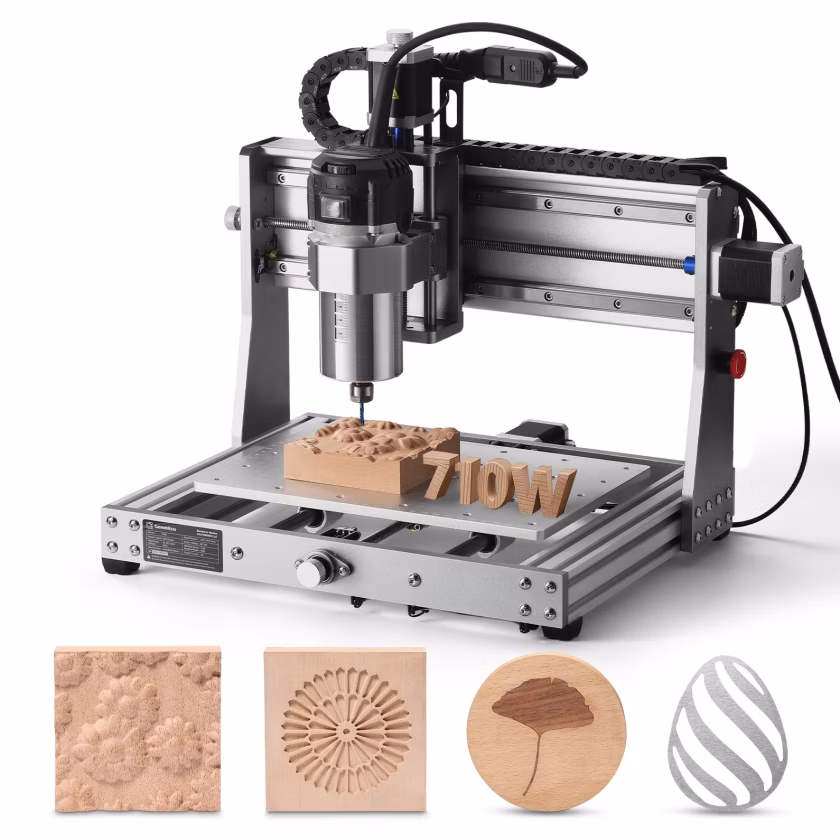

Genmitsu 3020-Pro Ultra vs Genmitsu PRONAX Forge
What 3020-Pro Ultra does better (1) and where PRONAX Forge wins (8) — every spec side by side.
vs
7.6Power & cutting9.1
3.7Precision8.5
4.0Work area9.0
6.5Safety6.5
7.0Features & ease of use9.0
Why is 3020-Pro Ultra better than PRONAX Forge?
- Laser module option (CNC)Yes · PRONAX Forge: No
Why is PRONAX Forge better than 3020-Pro Ultra?
- Work area (surface)615 cm² vs 5,400 cm²8.8×
- Spindle power710 W vs 2,200 W3.1×
- Closed-loop motors / servosNo · 3020-Pro Ultra: Yes
- Automatic tool changerNo · 3020-Pro Ultra: Yes
- Z travel78 mm vs 118 mm+51%
- Work area depth (Y)205 mm vs 900 mm4.4×
- Work area width (X)300 mm vs 600 mm2×
- Ball screwsNo · 3020-Pro Ultra: Yes
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Steel |
| Work area | ||
| Work area | 300 × 205 mm | 600 × 900 mm |
| Work area width (X) | 300 mm | 600 mm |
| Work area depth (Y) | 205 mm | 900 mm |
| Work area (surface) | 615 cm² | 5,400 cm² |
| Z travel | 78 mm | 118 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 104 mm/s |
| Precision | ||
| Closed-loop motors / servos | No | Yes |
| Linear rails | Yes | Yes |
| Ball screws | No | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | Yes | Yes |
| Features | ||
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | Yes | No |
| Automatic tool changer | No | Yes |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | SD / USB drive | USB |
| USB | — | Yes |
| SD / TF card | Yes | — |
| Compatible software | — | Easel, Candle, UGS |
| Controller / firmware | — | GRBL |
| CNC milling | ||
| Spindle power | 710 W | 2,200 W |
| Size & power | ||
| Width | — | 968 mm |
| Depth | — | 1,225 mm |
| Height | — | 510 mm |
| Weight | — | 62.3 kg |
| Input voltage | — | 110–230 V |
