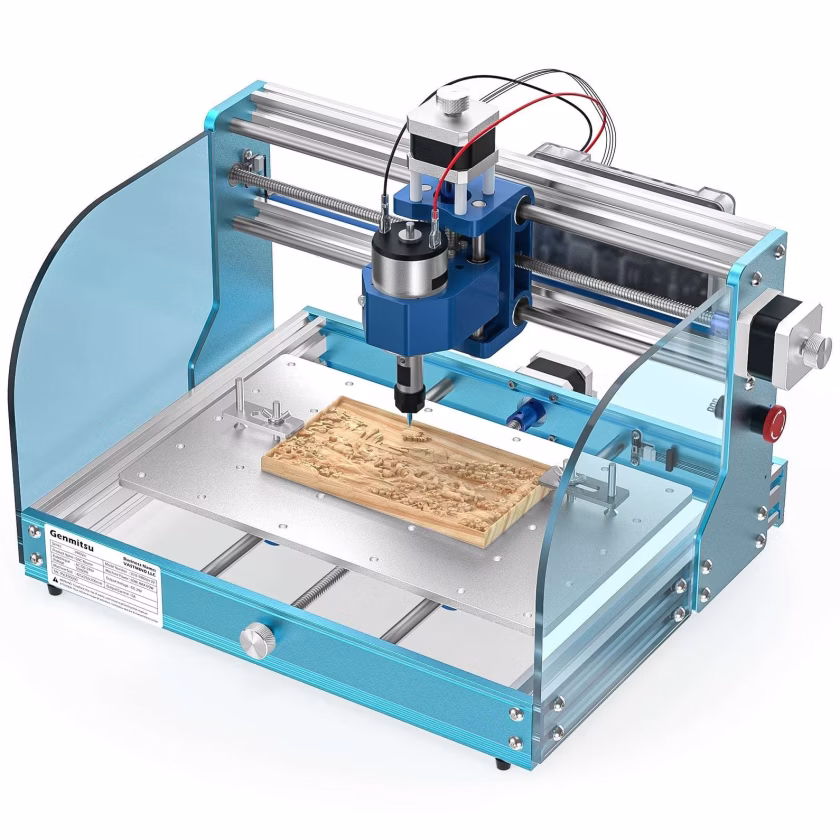

Genmitsu 3018-PROVer V2 vs Two Trees TTC3018
What 3018-PROVer V2 does better (4) and where TTC3018 wins (2) — every spec side by side.
vs
4.8Speed2.6
3.7Precision4.5
2.5Work area3.2
6.5Safety3.1
6.5Features & ease of use3.4
Why is 3018-PROVer V2 better than TTC3018?
- Max engraving / travel speed50 mm/s vs 25 mm/s2×
- Linear railsYes · TTC3018: No
- Laser module option (CNC)Yes · TTC3018: No
- Tool length / Z probeYes · TTC3018: No
Why is TTC3018 better than 3018-PROVer V2?
- Work area (surface)522 cm² vs 540 cm²+3%
- Work area width (X)290 mm vs 300 mm+3%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 290 × 180 mm | 300 × 180 mm |
| Work area width (X) | 290 mm | 300 mm |
| Work area depth (Y) | 180 mm | 180 mm |
| Work area (surface) | 522 cm² | 540 cm² |
| Z travel | 40 mm | 40 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 50 mm/s | 25 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.05 mm |
| Closed-loop motors / servos | No | No |
| Linear rails | Yes | No |
| Ball screws | No | No |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | Yes | — |
| Features | ||
| Offline engraving (no computer) | Yes | — |
| Laser module option (CNC) | Yes | No |
| Automatic tool changer | No | No |
| Tool length / Z probe | Yes | No |
| Connectivity & software | ||
| Connections | SD / USB drive | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| SD / TF card | Yes | — |
| Phone app control | Yes | — |
| Compatible software | Easel, Fusion 360, Candle, UGS | — |
| Size & power | ||
| Width | — | 420 mm |
| Depth | — | 355 mm |
| Height | — | 280 mm |
| Weight | — | 6.4 kg |
