- TTC3018 vs TTC3018 Pro

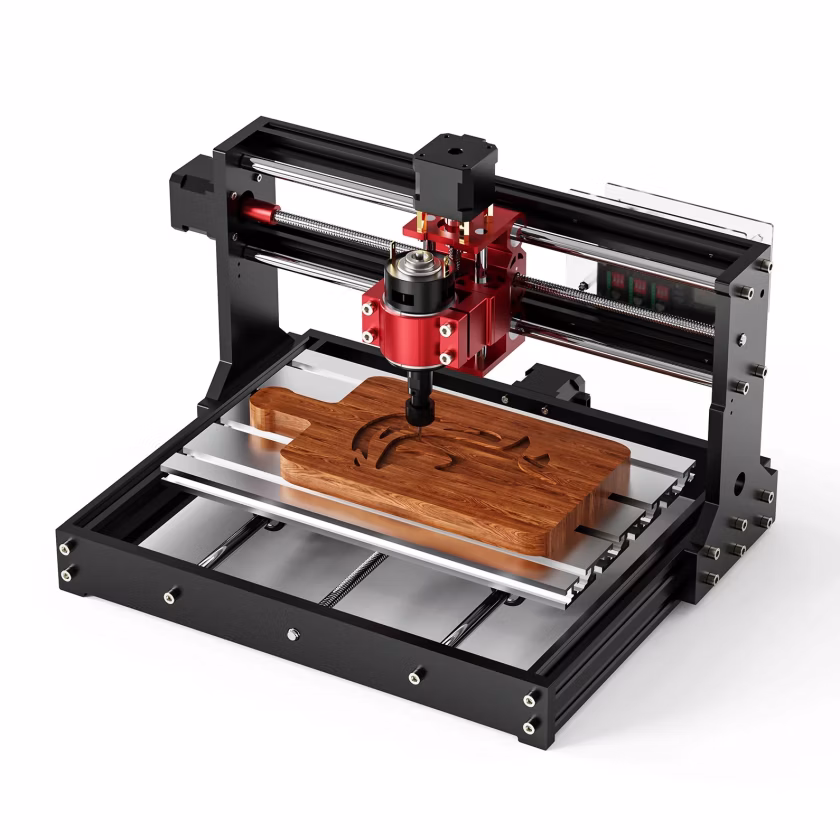

Two Trees TTC3018 vs Two Trees TTC3018 Pro
What TTC3018 does better (1) and where TTC3018 Pro wins (1) — every spec side by side.
vs
2.6Speed2.6
4.5Precision4.5
3.2Work area3.2
3.1Safety3.1
3.4Features & ease of use5.5
Dimensions
Size comparison
TTC3018TTC3018 Pro
| TTC3018 | TTC3018 Pro | Difference | |
|---|---|---|---|
| Height | 280 mm | 280 mm | = |
| Width | 420 mm | 420 mm | = |
| Depth | 355 mm | 355 mm | = |
| Weight | 6.4 kg | 6.8 kg | −0.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is TTC3018 better than TTC3018 Pro?
- Weight6.4 kg vs 6.8 kg+6%
Why is TTC3018 Pro better than TTC3018?
- Laser module option (CNC)No · TTC3018: Yes
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | Aluminium | Aluminium |
| Work area | ||
| Work area | 300 × 180 mm | 300 × 180 mm |
| Work area width (X) | 300 mm | 300 mm |
| Work area depth (Y) | 180 mm | 180 mm |
| Work area (surface) | 540 cm² | 540 cm² |
| Z travel | 40 mm | 40 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 25 mm/s | 25 mm/s |
| Precision | ||
| Positioning accuracy | 0.05 mm | 0.05 mm |
| Closed-loop motors / servos | No | No |
| Linear rails | No | No |
| Ball screws | No | No |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Features | ||
| Touchscreen / control panel | — | Yes |
| Laser module option (CNC) | No | Yes |
| Automatic tool changer | No | No |
| Tool length / Z probe | No | No |
| Connectivity & software | ||
| Connections | USB, Wi-Fi | USB, Wi-Fi |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Ethernet (LAN) | — | Yes |
| SD / TF card | — | Yes |
| Compatible software | — | Easel, Fusion 360 |
| CNC milling | ||
| Max spindle speed | — | 9,000 rpm |
| Size & power | ||
| Width | 420 mm | 420 mm |
| Depth | 355 mm | 355 mm |
| Height | 280 mm | 280 mm |
| Weight | 6.4 kg | 6.8 kg |
| Rated power consumption | — | 33 W |
| Input voltage | — | 12–24 V |
