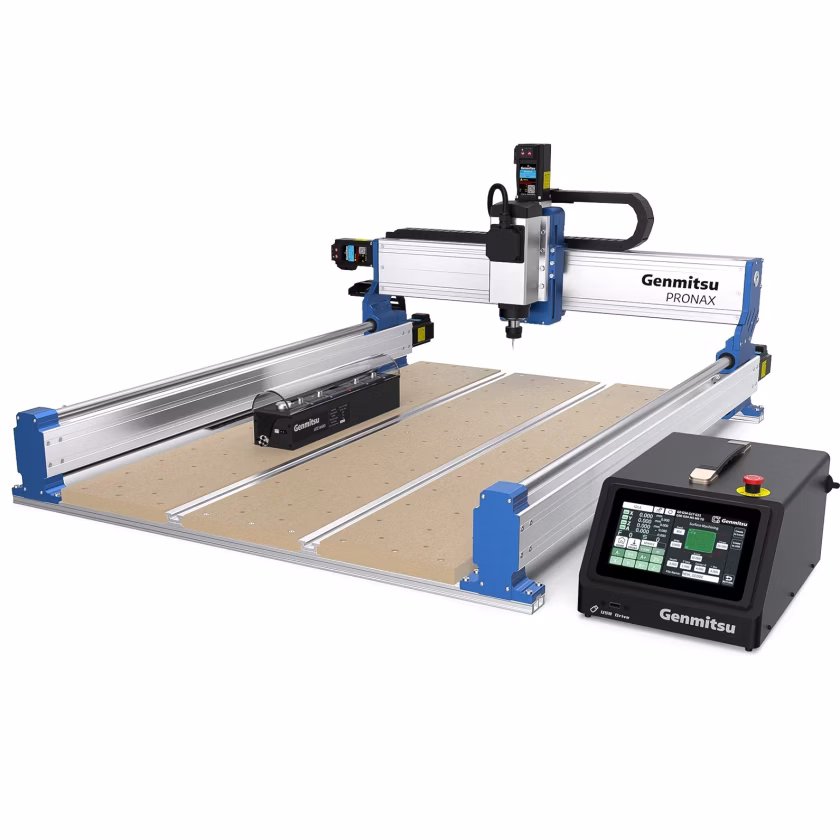

FoxAlien XE-Pro vs Genmitsu PRONAX Spark
What XE-Pro does better (1) and where PRONAX Spark wins (8) — every spec side by side.
vs
4.9Power & cutting9.1
7.0Speed9.2
8.5Precision8.5
5.7Work area9.0
3.1Safety6.5
4.0Features & ease of use9.0
Why is XE-Pro better than PRONAX Spark?
- Laser module option (CNC)Yes · PRONAX Spark: No
Why is PRONAX Spark better than XE-Pro?
- Work area (surface)1,600 cm² vs 5,400 cm²3.4×
- Spindle power400 W vs 2,200 W5.5×
- Automatic tool changerNo · XE-Pro: Yes
- Max engraving / travel speed83 mm/s vs 104 mm/s+25%
- Work area depth (Y)400 mm vs 900 mm2.2×
- Z travel95 mm vs 118 mm+24%
- Tool length / Z probeNo · XE-Pro: Yes
- Work area width (X)400 mm vs 600 mm+50%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Steel |
| Work area | ||
| Work area | 400 × 400 mm | 600 × 900 mm |
| Work area width (X) | 400 mm | 600 mm |
| Work area depth (Y) | 400 mm | 900 mm |
| Work area (surface) | 1,600 cm² | 5,400 cm² |
| Z travel | 95 mm | 118 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 83 mm/s | 104 mm/s |
| Precision | ||
| Closed-loop motors / servos | Yes | Yes |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | — | Yes |
| Features | ||
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | Yes | No |
| Automatic tool changer | No | Yes |
| Tool length / Z probe | No | Yes |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| Compatible software | — | Easel, Candle, UGS |
| Controller / firmware | — | GRBL |
| CNC milling | ||
| Spindle power | 400 W | 2,200 W |
| Size & power | ||
| Width | — | 968 mm |
| Depth | — | 1,225 mm |
| Height | — | 510 mm |
| Weight | — | 62.3 kg |
| Input voltage | — | 110–230 V |
