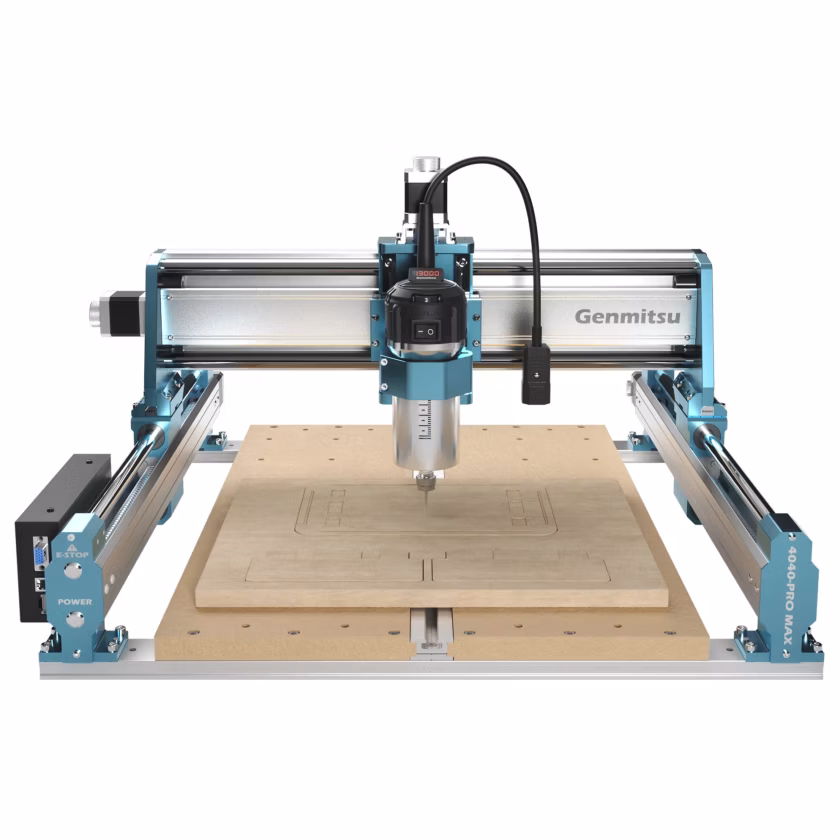

FoxAlien XE-Pro vs Genmitsu 4040-Pro Max
What XE-Pro does better (4) and where 4040-Pro Max wins (2) — every spec side by side.
vs
4.9Power & cutting8.4
8.5Precision2.9
5.7Work area5.2
3.1Safety6.5
4.0Features & ease of use6.1
Why is XE-Pro better than 4040-Pro Max?
- Closed-loop motors / servosYes · 4040-Pro Max: No
- Z travel95 mm vs 78 mm+22%
- Ball screwsYes · 4040-Pro Max: No
- Laser module option (CNC)Yes · 4040-Pro Max: No
Why is 4040-Pro Max better than XE-Pro?
- Spindle power400 W vs 710 W+77%
- Tool length / Z probeNo · XE-Pro: Yes
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Frame material | — | Aluminium |
| Work area | ||
| Work area | 400 × 400 mm | 400 × 400 mm |
| Work area width (X) | 400 mm | 400 mm |
| Work area depth (Y) | 400 mm | 400 mm |
| Work area (surface) | 1,600 cm² | 1,600 cm² |
| Z travel | 95 mm | 78 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 83 mm/s | — |
| Precision | ||
| Positioning accuracy | — | 0.1 mm |
| Closed-loop motors / servos | Yes | No |
| Linear rails | Yes | Yes |
| Ball screws | Yes | No |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | — | Yes |
| Features | ||
| Rotary attachment support | — | Yes |
| Offline engraving (no computer) | Yes | Yes |
| Laser module option (CNC) | Yes | No |
| Automatic tool changer | No | No |
| Tool length / Z probe | No | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| Compatible software | — | LightBurn, LaserGRBL, Vectric VCarve, Candle |
| LightBurn compatible | — | Yes |
| CNC milling | ||
| Spindle power | 400 W | 710 W |
| Max spindle speed | — | 30,000 rpm |
| Size & power | ||
| Width | — | 660 mm |
| Depth | — | 666 mm |
| Height | — | 390 mm |
| Weight | — | 24.6 kg |
