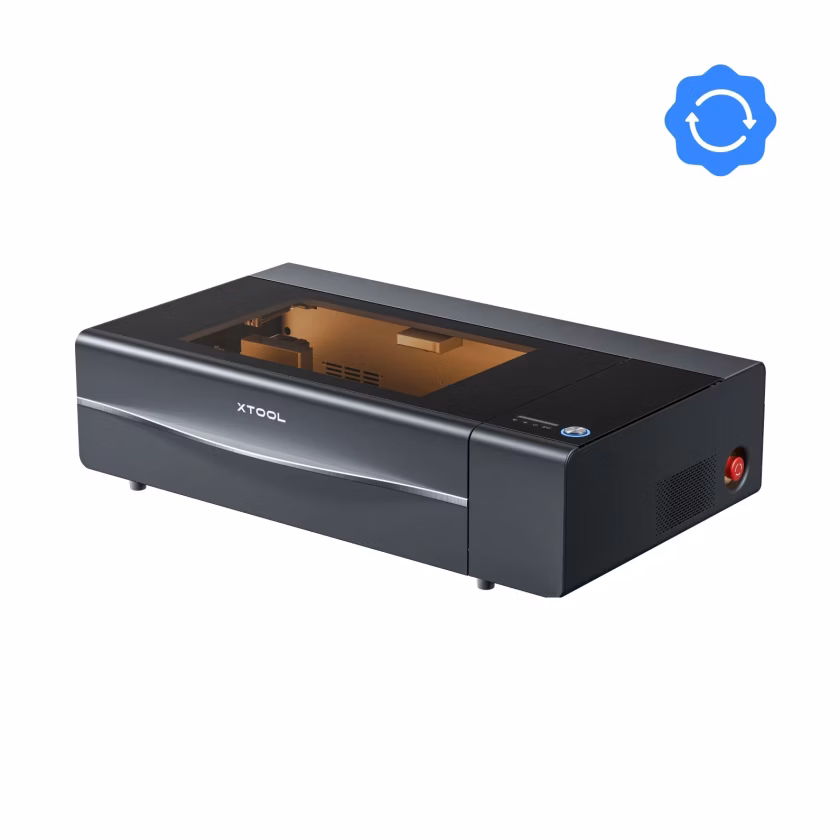

FLUX HEXA vs xTool P2 55W
What HEXA does better (5) and where P2 55W wins (1) — every spec side by side.
Dimensions
Size comparison
HEXAP2 55W
| HEXA | P2 55W | Difference | |
|---|---|---|---|
| Height | 273 mm | 269 mm | +4 mm |
| Width | 1,110 mm | 1,001 mm | +109 mm |
| Depth | 670 mm | 638 mm | +32 mm |
| Weight | 58 kg | 45 kg | +13 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is HEXA better than P2 55W?
- Work area (surface)2,993 cm² vs 1,830 cm²+64%
- Max engraving / travel speed900 mm/s vs 600 mm/s+50%
- Laser output power60 W vs 55 W+9%
- Work area depth (Y)410 mm vs 305 mm+34%
- Work area width (X)730 mm vs 600 mm+22%
Why is P2 55W better than HEXA?
- Weight58 kg vs 45 kg+29%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | — | No |
| Wavelength | 10,640 nm | — |
| Laser power | ||
| Laser output power | 60 W | 55 W |
| Work area | ||
| Work area | 730 × 410 mm | 600 × 305 mm |
| Work area width (X) | 730 mm | 600 mm |
| Work area depth (Y) | 410 mm | 305 mm |
| Work area (surface) | 2,993 cm² | 1,830 cm² |
| Max workpiece height | — | 216 mm |
| Pass-through slot | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 900 mm/s | 600 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 18 mm |
| Max cutting depth – acrylic | — | 20 mm |
| Precision | ||
| Laser spot size | 0.2 mm | 0.2 mm |
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Flame / fire detection | — | Yes |
| Emergency stop button | — | Yes |
| Exhaust fan | — | Yes |
| Features | ||
| Air assist | — | Yes |
| Built-in camera | Yes | Yes |
| Autofocus / auto height | — | Yes |
| Touchscreen / control panel | Yes | — |
| Water cooling | — | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, Ethernet | USB, Wi-Fi, Ethernet |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Ethernet (LAN) | Yes | Yes |
| Compatible software | Beam Studio | LightBurn |
| LightBurn compatible | — | Yes |
| File formats | — | SVG, DXF, JPG, PNG, BMP |
| Size & power | ||
| Width | 1,110 mm | 1,001 mm |
| Depth | 670 mm | 638 mm |
| Height | 273 mm | 269 mm |
| Weight | 58 kg | 45 kg |
| Rated power consumption | — | 55 W |
