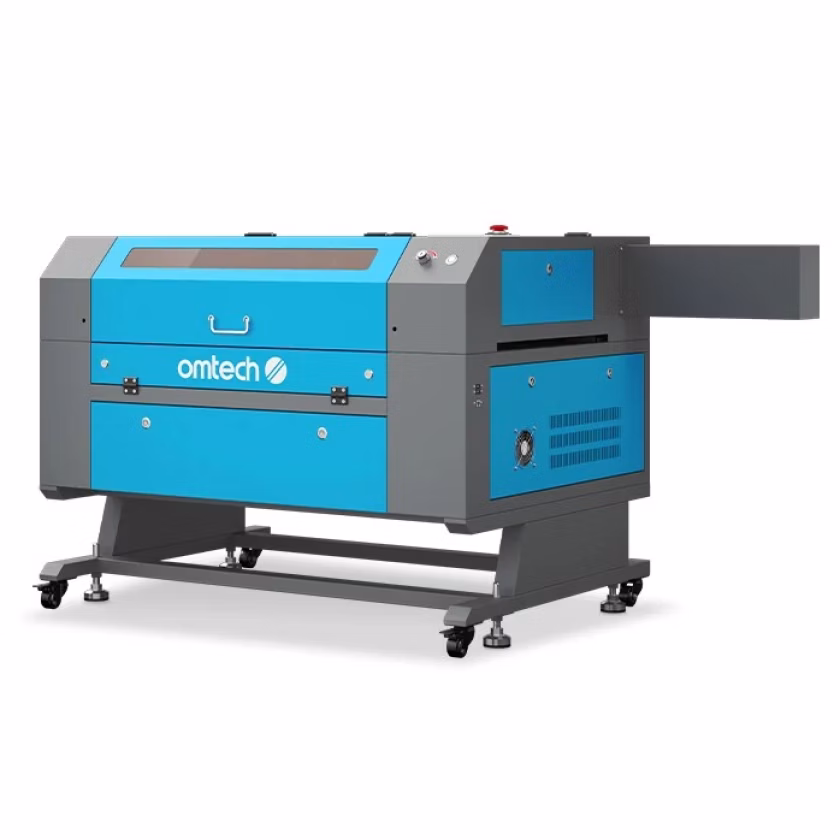

FLUX HEXA vs OMTech Maker MF2028-100 100W
What HEXA does better (5) and where Maker MF2028-100 100W wins (3) — every spec side by side.
vs
4.9Power & cutting8.3
8.1Speed5.8
2.5Precision8.0
6.7Work area7.2
4.7Safety4.7
9.5Features & ease of use4.1
Dimensions
Size comparison
HEXAMaker MF2028-100 100W
| HEXA | Maker MF2028-100 100W | Difference | |
|---|---|---|---|
| Height | 273 mm | 930 mm | −657 mm |
| Width | 1,110 mm | 1,650 mm | −540 mm |
| Depth | 670 mm | 870 mm | −200 mm |
| Weight | 58 kg | 114 kg | −56 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is HEXA better than Maker MF2028-100 100W?
- Max engraving / travel speed900 mm/s vs 600 mm/s+50%
- Built-in cameraYes · Maker MF2028-100 100W: No
- Wi-FiYes · Maker MF2028-100 100W: No
- Weight58 kg vs 114 kg+97%
- Work area width (X)730 mm vs 711 mm+3%
Why is Maker MF2028-100 100W better than HEXA?
- Laser output power60 W vs 100 W+67%
- Work area (surface)2,993 cm² vs 3,612 cm²+21%
- Work area depth (Y)410 mm vs 508 mm+24%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | — | No |
| Wavelength | 10,640 nm | — |
| Laser power | ||
| Laser output power | 60 W | 100 W |
| Work area | ||
| Work area | 730 × 410 mm | 711 × 508 mm |
| Work area width (X) | 730 mm | 711 mm |
| Work area depth (Y) | 410 mm | 508 mm |
| Work area (surface) | 2,993 cm² | 3,612 cm² |
| Pass-through slot | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 900 mm/s | 600 mm/s |
| Precision | ||
| Laser spot size | 0.2 mm | — |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Exhaust fan | — | Yes |
| Features | ||
| Air assist | — | Yes |
| Built-in camera | Yes | No |
| Autofocus / auto height | — | No |
| Rotary attachment support | — | Yes |
| Touchscreen / control panel | Yes | Yes |
| Water cooling | — | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, Ethernet | USB, Ethernet |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| Ethernet (LAN) | Yes | Yes |
| Compatible software | Beam Studio | RDWorks |
| File formats | — | AI, BMP, DXF, GIF, HPGL, JPG, PDF, PLT, PNG, SVG, TIFF |
| Size & power | ||
| Width | 1,110 mm | 1,650 mm |
| Depth | 670 mm | 870 mm |
| Height | 273 mm | 930 mm |
| Weight | 58 kg | 114 kg |
| Rated power consumption | — | 100 W |
