- X12 Pro vs AL3 5W

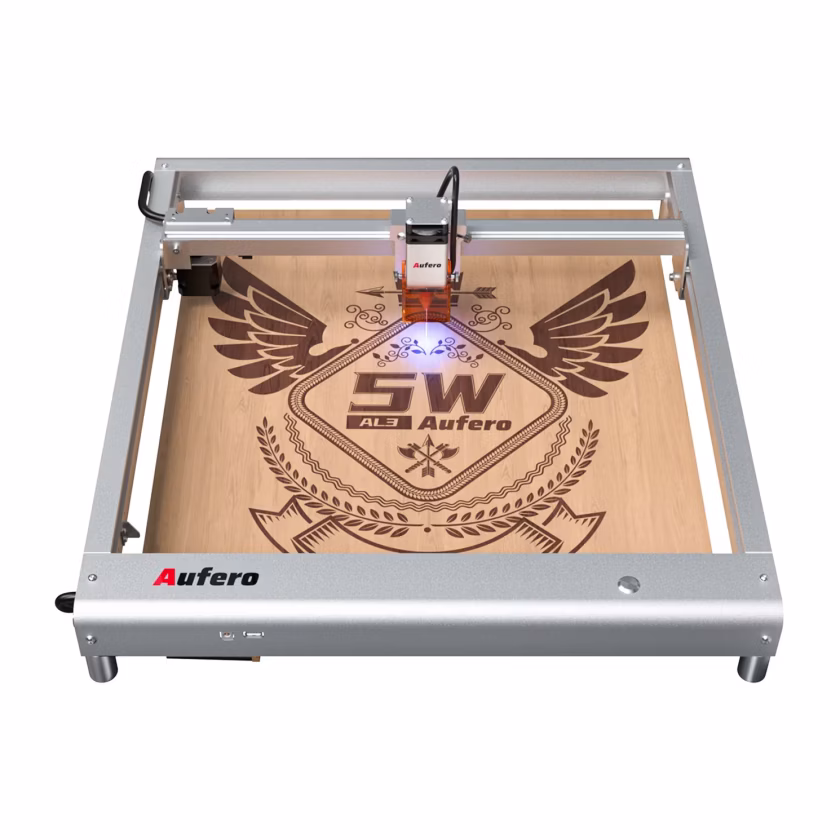

AtomStack X12 Pro vs Aufero AL3 5W
What X12 Pro does better (1) and where AL3 5W wins (1) — every spec side by side.
Why is X12 Pro better than AL3 5W?
- Laser output power12 W vs 5 W2.4×
Why is AL3 5W better than X12 Pro?
- Air assistNo · X12 Pro: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 12 W | 5 W |
| Work area | ||
| Work area | 365 × 305 mm | — |
| Work area width (X) | 365 mm | — |
| Work area depth (Y) | 305 mm | — |
| Work area (surface) | 1,113 cm² | — |
| Precision | ||
| Laser spot size | 0.06 mm | — |
| Linear rails | Yes | — |
| Safety | ||
| Enclosed (fully covered) | No | — |
| Flame / fire detection | No | — |
| Tilt / movement sensor | Yes | — |
| Laser shield / filter cover | Yes | — |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | — |
| Autofocus / auto height | No | — |
| Rotary attachment support | — | Yes |
| Connectivity & software | ||
| Connections | USB | — |
| Wi-Fi | No | — |
| USB | Yes | — |
| Phone app control | Yes | — |
| Compatible software | LightBurn, LaserGRBL | — |
| LightBurn compatible | Yes | — |
| File formats | JPG, SVG, PNG, BMP, PDF, G-code, DXF | — |
| Size & power | ||
| Rated power consumption | 50 W | — |
| Input voltage | 100–240 V | — |
