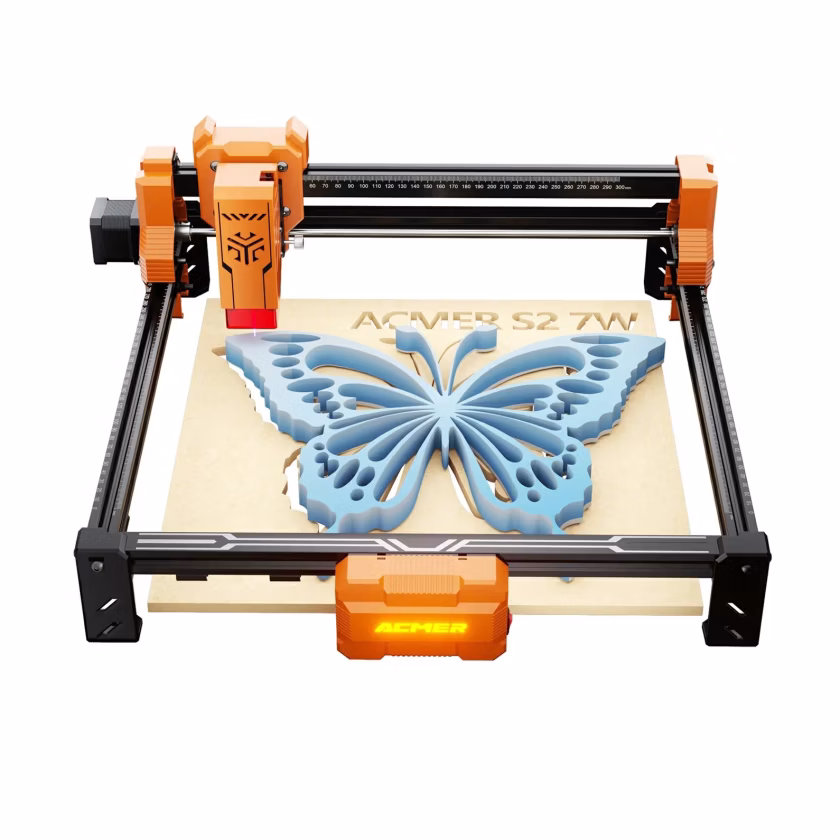

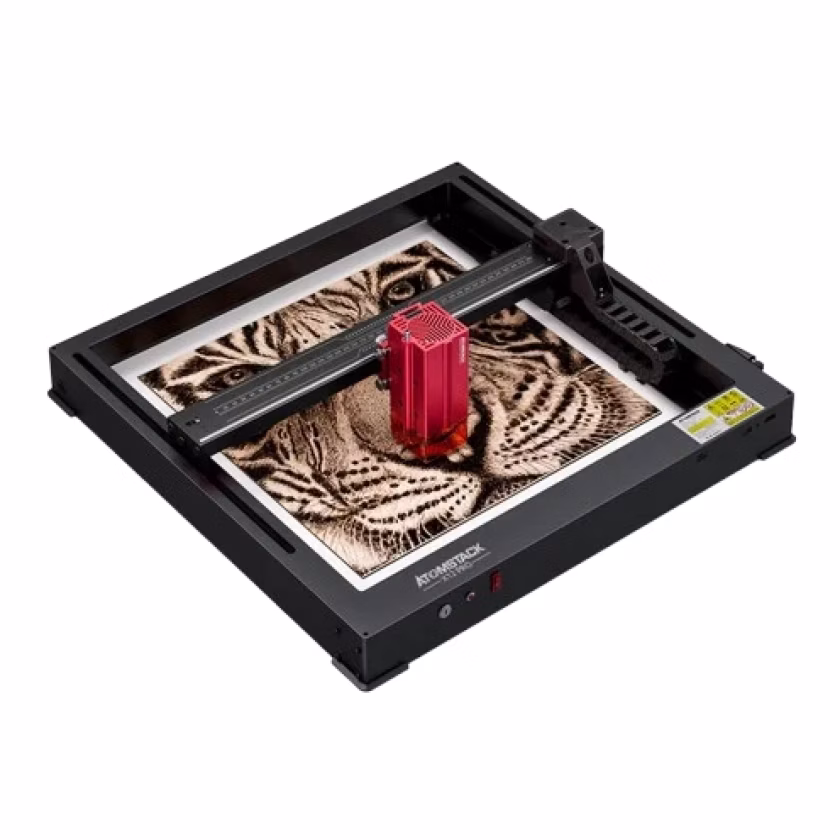

Acmer S2 12W vs AtomStack X12 Pro
What S2 12W does better (1) and where X12 Pro wins (2) — every spec side by side.
Why is S2 12W better than X12 Pro?
- Air assistYes · X12 Pro: No
Why is X12 Pro better than S2 12W?
- Work area (surface)900 cm² vs 1,113 cm²+24%
- Work area width (X)300 mm vs 365 mm+22%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 12 W | 12 W |
| Work area | ||
| Work area | 300 × 300 mm | 365 × 305 mm |
| Work area width (X) | 300 mm | 365 mm |
| Work area depth (Y) | 300 mm | 305 mm |
| Work area (surface) | 900 cm² | 1,113 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | — |
| Precision | ||
| Laser spot size | 0.06 mm | 0.06 mm |
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Tilt / movement sensor | — | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | — |
| Connectivity & software | ||
| Connections | — | USB |
| Wi-Fi | — | No |
| USB | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | — | JPG, SVG, PNG, BMP, PDF, G-code, DXF |
| Size & power | ||
| Width | 490 mm | — |
| Depth | 500 mm | — |
| Height | 195 mm | — |
| Rated power consumption | — | 50 W |
| Input voltage | — | 100–240 V |
