- P1 S pro 10W vs iCube Pro Max 10W

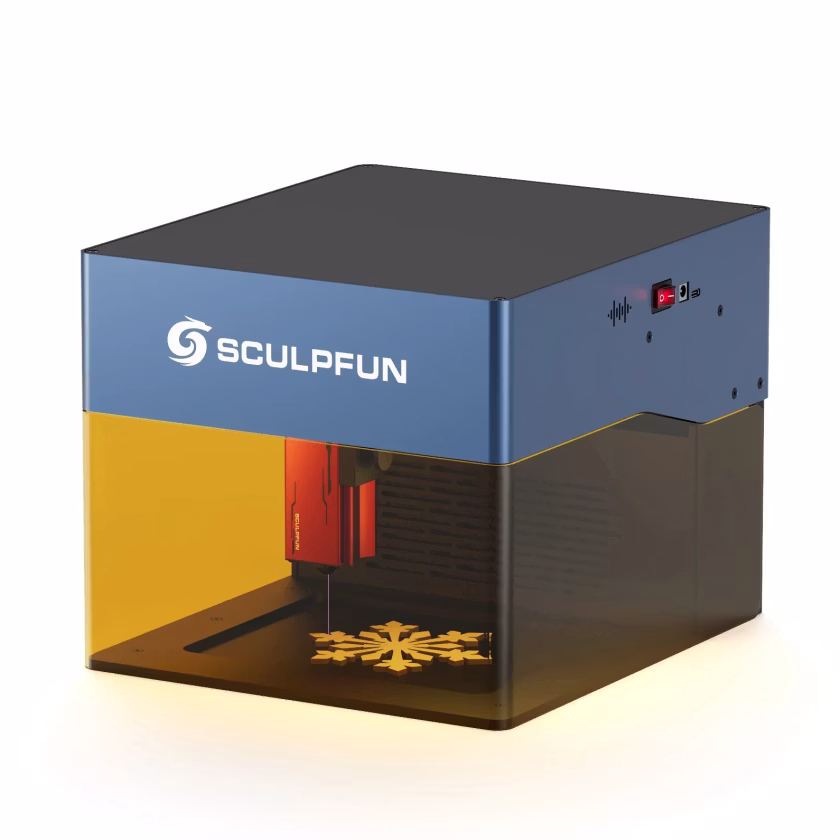

Acmer P1 S pro 10W vs Sculpfun iCube Pro Max 10W
What P1 S pro 10W does better (5) and where iCube Pro Max 10W wins (1) — every spec side by side.
vs
5.7Power & cutting5.7
3.5Speed3.5
6.2Work area2.6
3.2Safety8.6
5.7Features & ease of use3.2
Why is P1 S pro 10W better than iCube Pro Max 10W?
- Work area (surface)1,406 cm² vs 144 cm²9.8×
- Air assistYes · iCube Pro Max 10W: No
- Work area width (X)380 mm vs 120 mm3.2×
- Work area depth (Y)370 mm vs 120 mm3.1×
- Rotary attachment supportYes · iCube Pro Max 10W: No
Why is iCube Pro Max 10W better than P1 S pro 10W?
- Enclosed (fully covered)No · P1 S pro 10W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 455 nm |
| Laser power | ||
| Laser output power | 10 W | 10 W |
| Work area | ||
| Work area | 380 × 370 mm | 120 × 120 mm |
| Work area width (X) | 380 mm | 120 mm |
| Work area depth (Y) | 370 mm | 120 mm |
| Work area (surface) | 1,406 cm² | 144 cm² |
| Max workpiece height | — | 40 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | 167 mm/s |
| Precision | ||
| Laser spot size | — | 0.08 mm |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Flame / fire detection | No | No |
| Built-in fume filter / purifier | — | Yes |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | No |
| Connectivity & software | ||
| Connections | — | Wi-Fi, Bluetooth |
| Wi-Fi | — | Yes |
| Bluetooth | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, PNG, BMP, GIF, SVG | JPG, BMP, TIF, GIF |
| Size & power | ||
| Width | — | 262 mm |
| Depth | — | 300 mm |
| Height | — | 226 mm |
| Weight | — | 3.2 kg |
| Input voltage | — | 110–240 V |
