WeCreatDiode laser engraver

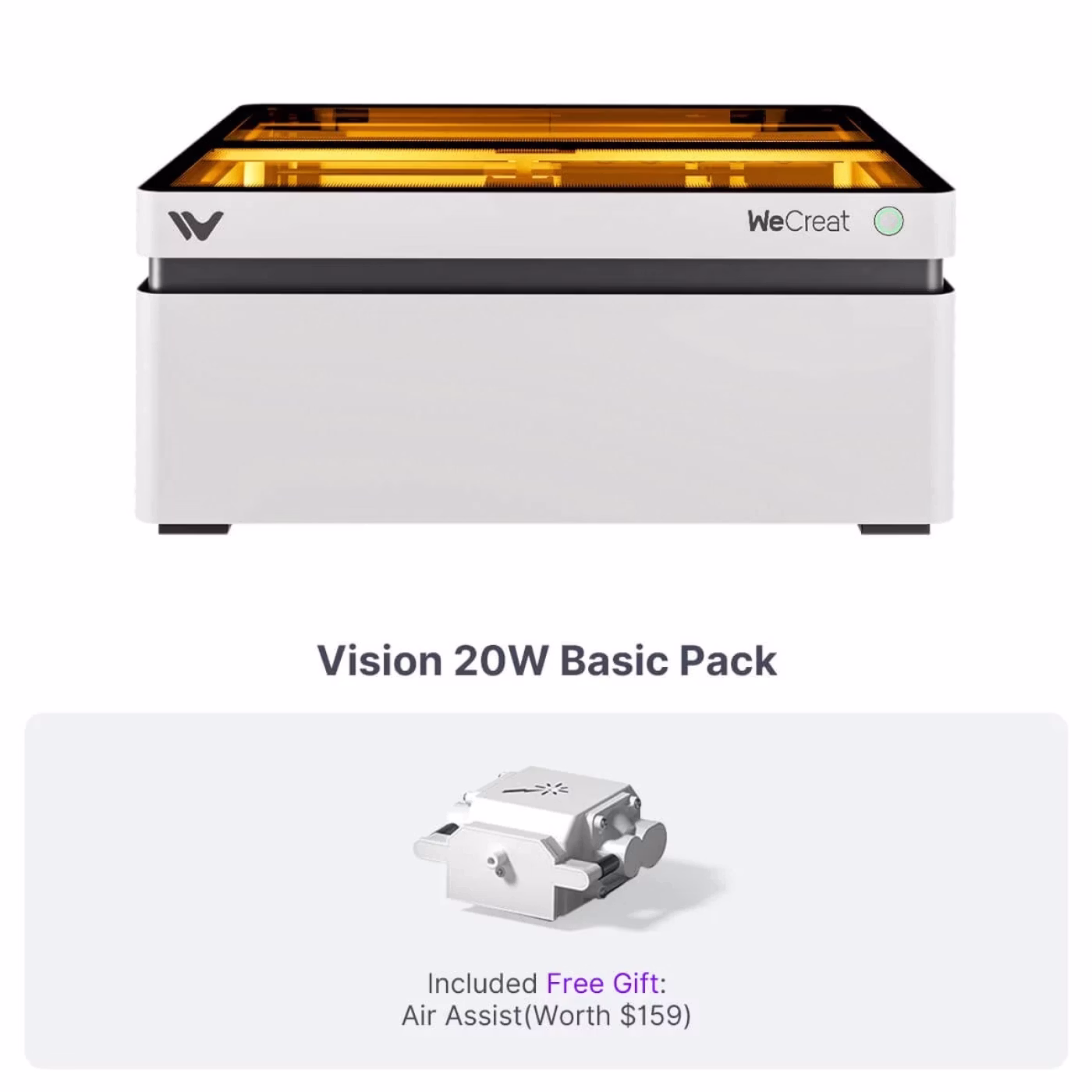

WeCreat Vision 20W
WeCreat Vision 20W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 20 W, work area 420 × 290 mm, max engraving / travel speed 600 mm/s.
8.6Score
Power & cutting6.9
Speed8.0
Precision7.0
Work area5.9
Safety7.9
Features & ease of use8.9
price rangeUS$1,250–1,600
- Year
- 2023
- Brand
WeCreat- Popularity
- #235 of 406
Blue diode (≈455 nm)Laser sources
20 WLaser output power
420 × 290 mmWork area
600 mm/sMax engraving / travel speed
0.08 mmLaser spot size
10 mmMax cutting depth – wood / plywood (one pass)
YesEnclosed (fully covered)
Class 1 (eye-safe, enclosed)Laser safety class
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 20 WBottom 45%
Max engraving / travel speed · 600 mm/sTop 47%
Laser spot size · 0.08 mmTop 42%
Max cutting depth – wood / plywood (one pass) · 10 mmBottom 30%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is Vision 20W a good choice?
Laser output power: 20 Wbetter than 70% of diode laser engravers
Max engraving / travel speed: 600 mm/sbetter than 76% of diode laser engravers
Max cutting depth – acrylic: 11 mmbetter than 79% of diode laser engravers
Specifications
Full specifications
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 420 × 290 mm
- Work area width (X)
- 420 mm
- Work area depth (Y)
- 290 mm
- Work area (surface)
- 1,218 cm²
- Pass-through slot
- Yes
Speed & cutting
- Max engraving / travel speed
- 600 mm/s
- Max cutting depth – wood / plywood (one pass)
- 10 mm
- Max cutting depth – acrylic
- 11 mm
Precision
- Laser spot size
- 0.08 mm
- Positioning accuracy
- 0.01 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Emergency stop button
- Yes
Features
- Air assist
- No
- Built-in camera
- Yes
- Autofocus / auto height
- Yes
- Rotary attachment support
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi
- Wi-Fi
- Yes
- USB
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 589 mm
- Depth
- 531 mm
- Height
- 253 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
