WainluxDiode laser engraver

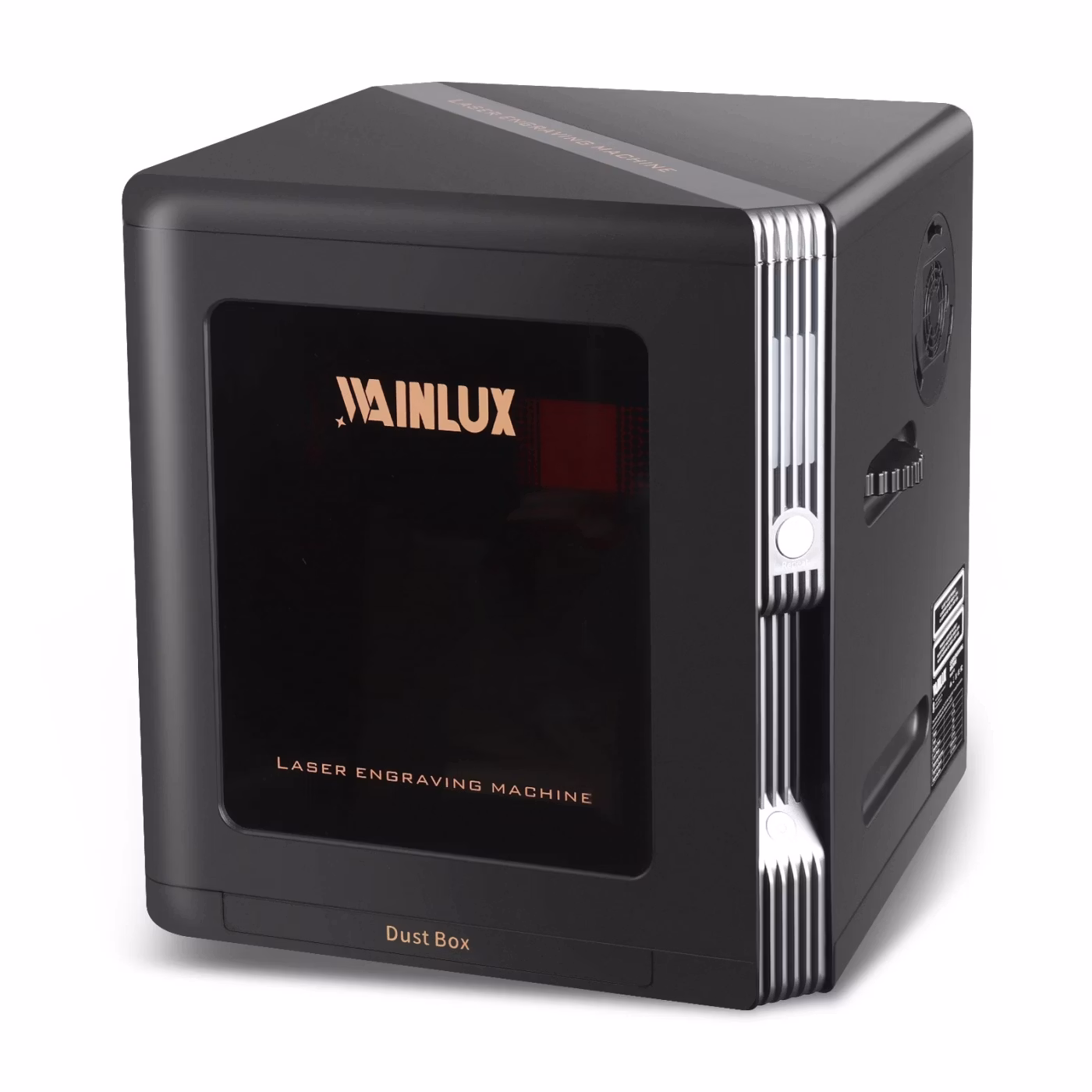

Wainlux K8 Mini 10W
Wainlux K8 Mini 10W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 10 W, work area 130 × 130 mm, laser spot size 0.08 mm.
6.1Score
Power & cutting4.8
Precision6.2
Work area2.9
Safety9.6
Features & ease of use5.2
price rangeUS$350–440
- Year
- 2023
- Brand
Wainlux- Popularity
- #12 of 406
Blue diode (≈455 nm)Laser sources
10 WLaser output power
130 × 130 mmWork area
0.08 mmLaser spot size
8 mmMax cutting depth – wood / plywood (one pass)
YesEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 10 WBottom 27%
Laser spot size · 0.08 mmTop 42%
Max cutting depth – wood / plywood (one pass) · 8 mmBottom 19%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
Specifications
Full specifications
Laser power
- Laser output power
- 10 W
Work area
- Work area
- 130 × 130 mm
- Work area width (X)
- 130 mm
- Work area depth (Y)
- 130 mm
- Work area (surface)
- 169 cm²
Speed & cutting
- Max cutting depth – wood / plywood (one pass)
- 8 mm
Precision
- Laser spot size
- 0.08 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Exhaust fan
- Yes
Features
- Air assist
- No
- Built-in camera
- Yes
- Autofocus / auto height
- No
- Offline engraving (no computer)
- Yes
Connectivity & software
- Phone app control
- Yes
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
Compare
Compare K8 Mini 10W with
vs
Wainlux K8 Mini 10WvsAcmer P1 S pro 20W
6.16.0
vs
Wainlux K8 Mini 10WvsAcmer P1 S pro 36W
6.16.4
vs
Wainlux K8 Mini 10WvsTwo Trees TS2 10W
6.15.9
vs

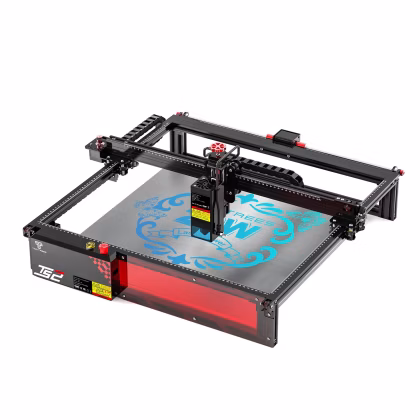

Wainlux K8 Mini 10WvsTwo Trees TS2 20W
