SculpfunDiode laser engraver

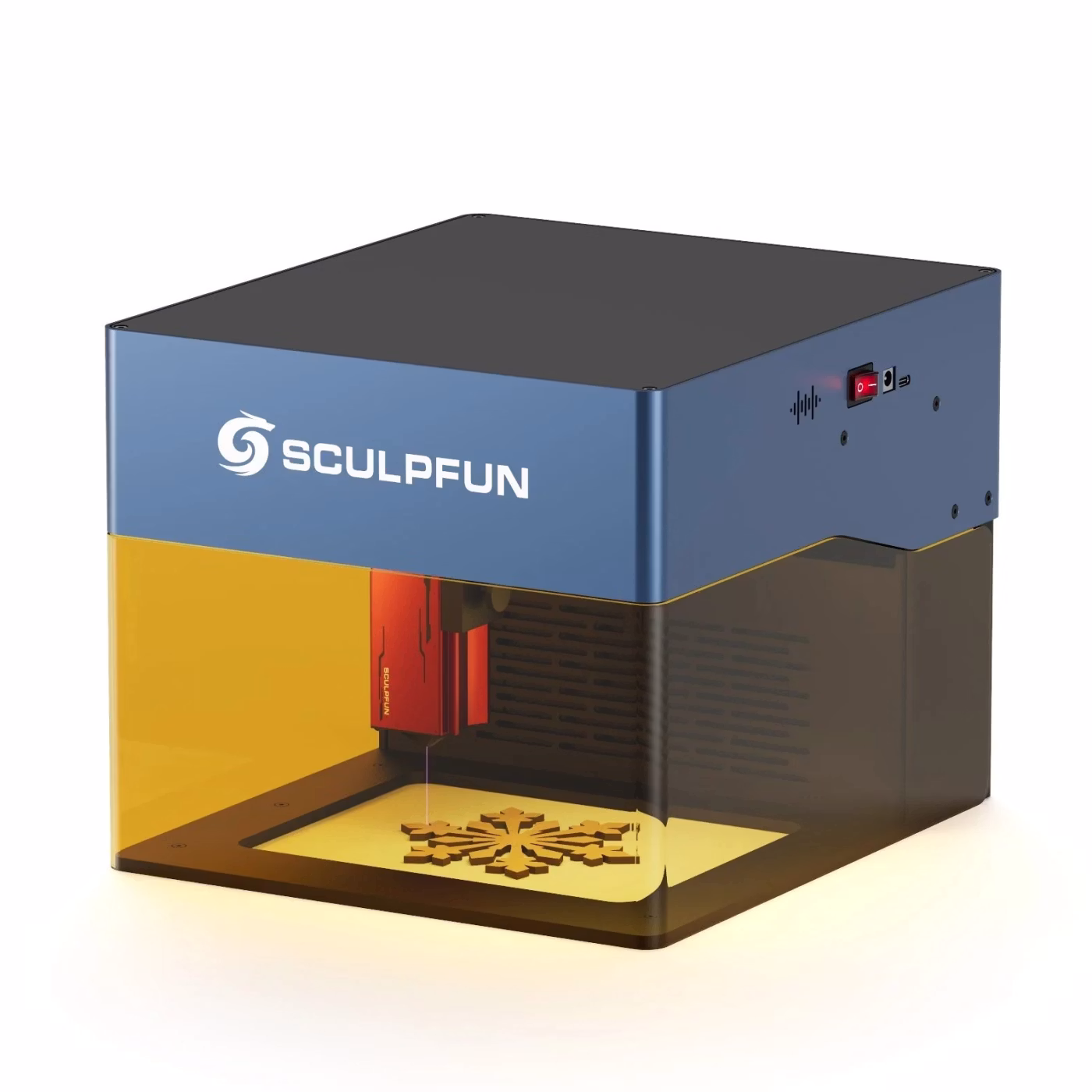

Sculpfun iCube Pro 5W
Sculpfun iCube Pro 5W is a diode laser engraver released in 2023. Key specs: laser sources Blue diode (≈455 nm), laser output power 5 W, work area 125 × 125 mm, max engraving / travel speed 167 mm/s.
4.9Score
Power & cutting3.2
Speed3.5
Precision8.7
Work area2.6
Safety8.6
Features & ease of use3.2
price rangeUS$150–190
- Year
- 2023
- Brand
Sculpfun- Popularity
- #183 of 406
Blue diode (≈455 nm)Laser sources
5 WLaser output power
125 × 125 mmWork area
167 mm/sMax engraving / travel speed
0.06 mmLaser spot size
YesEnclosed (fully covered)
Spec guide
How it ranks among diode laser engravers of 2023
Laser output power · 5 WBottom 13%
Max engraving / travel speed · 167 mm/sBottom 17%
Laser spot size · 0.06 mmTop 21%
Compared with diode laser engravers released in 2023. Bars show the share of models it beats.
compared with other diode laser engravers
Why is iCube Pro 5W a good choice?
Laser spot size: 0.06 mmbetter than 77% of diode laser engravers
Weak points
Laser output power: 5 Wworse than 87% of diode laser engravers
Work area (surface): 156 cm²worse than 88% of diode laser engravers
Max engraving / travel speed: 167 mm/sworse than 90% of diode laser engravers
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 455 nm
Laser power
- Laser output power
- 5 W
Work area
- Work area
- 125 × 125 mm
- Work area width (X)
- 125 mm
- Work area depth (Y)
- 125 mm
- Work area (surface)
- 156 cm²
- Max workpiece height
- 40 mm
Speed & cutting
- Max engraving / travel speed
- 167 mm/s
Precision
- Laser spot size
- 0.06 mm
Safety
- Enclosed (fully covered)
- Yes
- Flame / fire detection
- No
- Built-in fume filter / purifier
- Yes
- Laser shield / filter cover
- Yes
Features
- Air assist
- No
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- No
Connectivity & software
- Connections
- Wi-Fi, Bluetooth
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Phone app control
- Yes
- LightBurn compatible
- Yes
- File formats
- JPG, BMP, TIF, GIF
Size & power
- Width
- 262 mm
- Depth
- 300 mm
- Height
- 226 mm
- Weight
- 3.2 kg
- Rated power consumption
- 60 W
- Input voltage
- 110–240 V
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
