OMTechFibre laser marker

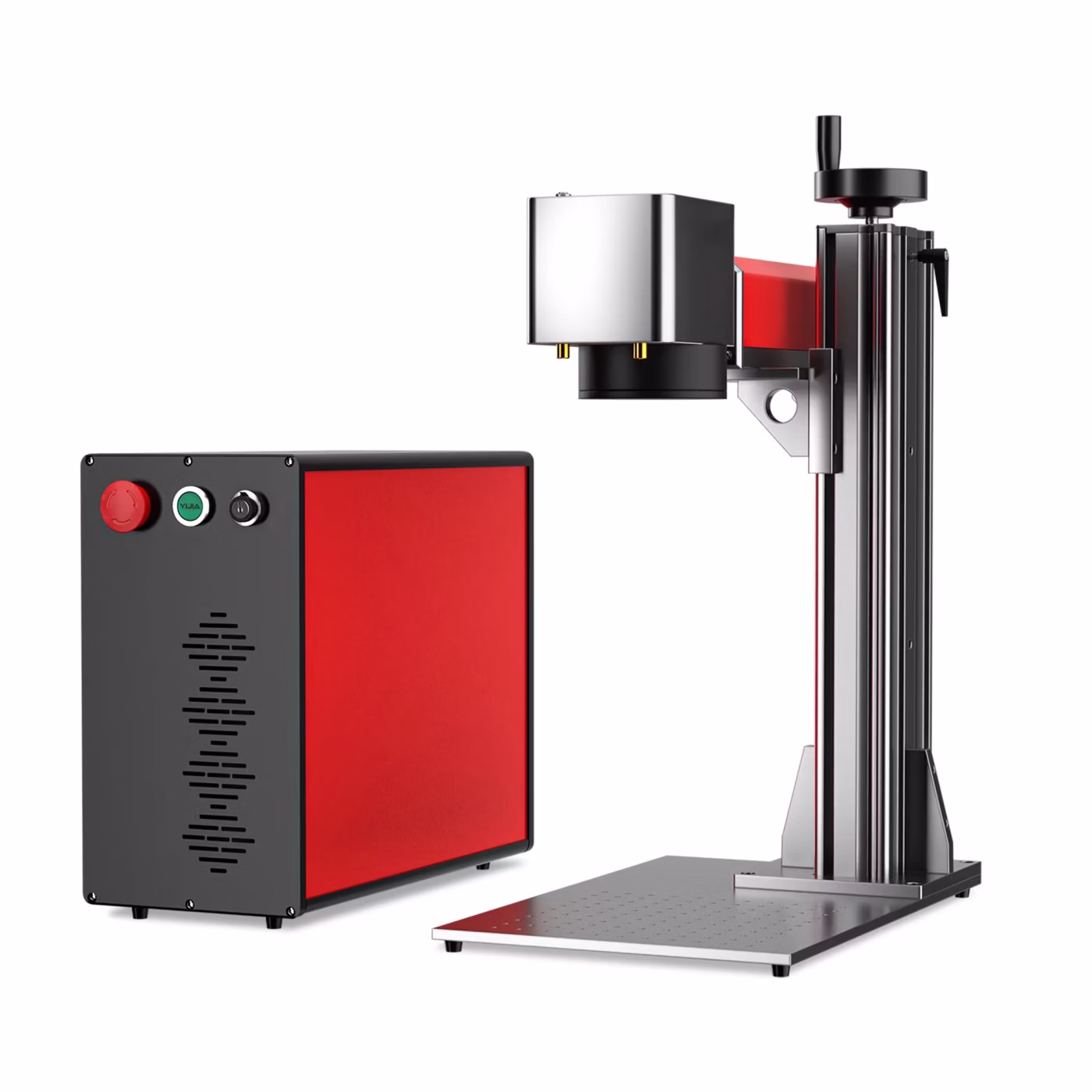

OMTech MOPA Split 20W
OMTech MOPA Split 20W is a fibre laser marker released in 2022. Key specs: laser sources Fibre (1064 nm), laser output power 20 W, work area 175 × 175 mm, max engraving / travel speed 10,008 mm/s.
5.5Score
Power & cutting2.6
Speed7.6
Work area6.9
Safety7.2
Features & ease of use3.1
price rangeUS$2,400–3,000
- Year
- 2022
- Brand
OMTech- Popularity
- #287 of 447
Fibre (1064 nm)Laser sources
20 WLaser output power
175 × 175 mmWork area
10,008 mm/sMax engraving / travel speed
NoEnclosed (fully covered)
Spec guide
How it ranks among fibre laser markers
Compared with every model of this kind in the catalog.
compared with other fibre laser markers
Why is MOPA Split 20W a good choice?
Max engraving / travel speed: 10,008 mm/sbetter than 72% of fibre laser markers
Weak points
Laser output power: 20 Wworse than 95% of fibre laser markers
Specifications
Full specifications
General
- Motion system
- Galvo (scanning mirrors)
- Two laser sources
- No
- MOPA fibre source (adjustable pulse)
- Yes
- Wavelength
- 1,064 nm
Laser power
- Laser output power
- 20 W
Work area
- Work area
- 175 × 175 mm
- Work area width (X)
- 175 mm
- Work area depth (Y)
- 175 mm
- Work area (surface)
- 306 cm²
Speed & cutting
- Max engraving / travel speed
- 10,008 mm/s
Safety
- Enclosed (fully covered)
- No
- Built-in fume filter / purifier
- Yes
Features
- Built-in camera
- No
- Autofocus / auto height
- No
- Rotary attachment support
- Yes
- Touchscreen / control panel
- Yes
Connectivity & software
- Connections
- USB
- USB
- Yes
- File formats
- AI, BMP, DXF, GIF, JPG, PLT, PNG, TIF
Size & power
- Width
- 570 mm
- Depth
- 350 mm
- Height
- 650 mm
- Weight
- 31 kg
- Rated power consumption
- 60 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
