MonportCO2 laser cutter

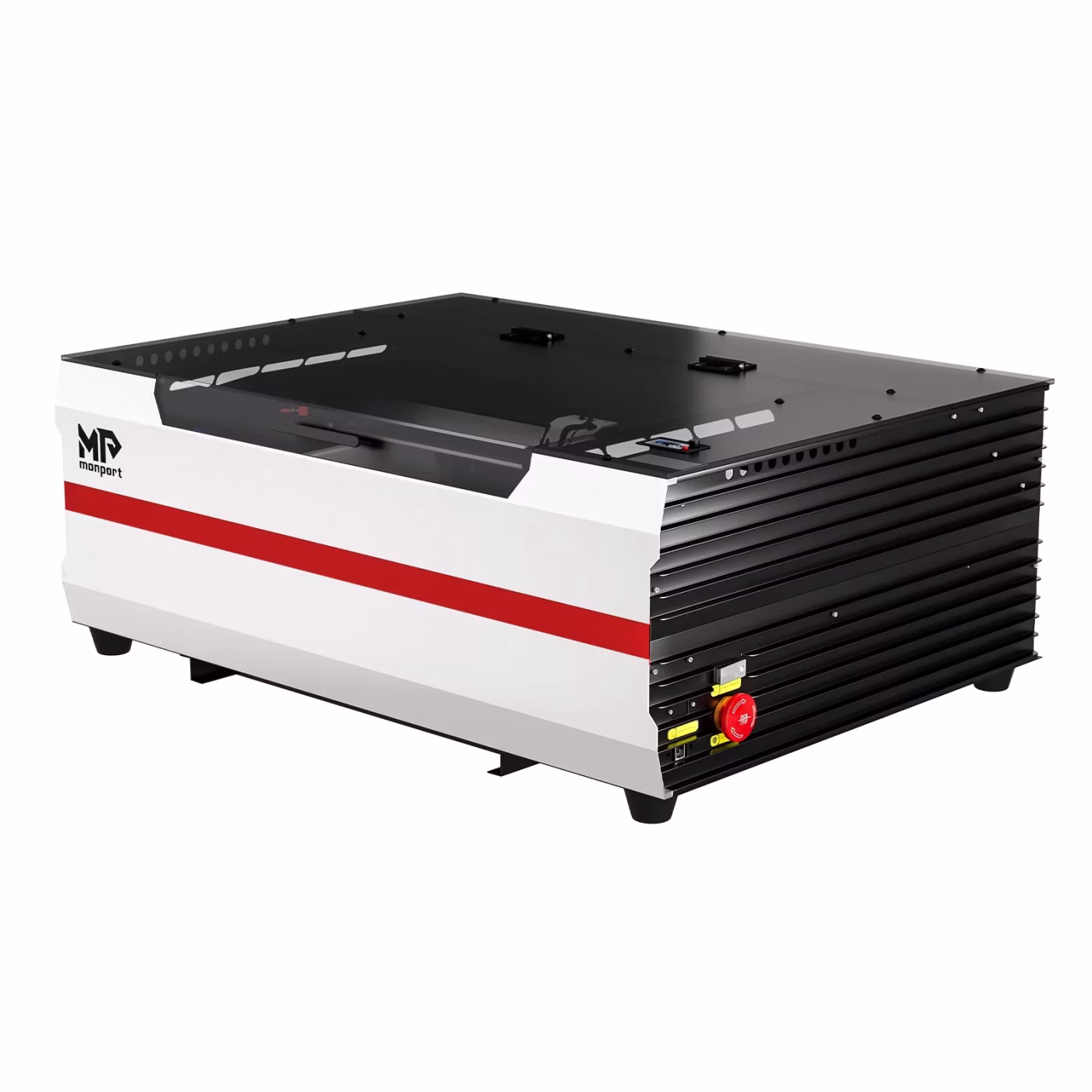

Monport Reno45 45W
Monport Reno45 45W is a CO2 laser cutter released in 2024. Key specs: laser sources CO2 (10.6 µm), laser output power 45 W, work area 711 × 356 mm, max engraving / travel speed 500 mm/s.
4.6Score
Power & cutting3.0
Speed3.6
Work area6.2
Safety4.8
Features & ease of use6.9
price rangeUS$1,000–1,300
- Year
- 2024
- Type
- CO2 laser cutter
- Brand
Monport- Popularity
- #163 of 430
CO2 (10.6 µm)Laser sources
45 WLaser output power
711 × 356 mmWork area
500 mm/sMax engraving / travel speed
YesEnclosed (fully covered)
Spec guide
How it ranks among CO2 laser cutters of 2024
Compared with CO2 laser cutters released in 2024. Bars show the share of models it beats.
compared with other CO2 laser cutters
Why is Reno45 45W a good choice?
Weight: 30.4 kgbetter than 70% of CO2 laser cutters
Weak points
Laser output power: 45 Wworse than 90% of CO2 laser cutters
Max engraving / travel speed: 500 mm/sworse than 85% of CO2 laser cutters
Specifications
Full specifications
General
- Motion system
- Gantry (XY rails)
- Two laser sources
- No
- Wavelength
- 10,600 nm
Laser power
- Laser output power
- 45 W
Work area
- Work area
- 711 × 356 mm
- Work area width (X)
- 711 mm
- Work area depth (Y)
- 356 mm
- Work area (surface)
- 2,531 cm²
- Pass-through slot
- Yes
Speed & cutting
- Max engraving / travel speed
- 500 mm/s
Safety
- Enclosed (fully covered)
- Yes
Features
- Air assist
- Yes
- Built-in camera
- No
- Autofocus / auto height
- Yes
- Touchscreen / control panel
- Yes
- Water cooling
- Yes
Connectivity & software
- Connections
- USB, Wi-Fi, SD / USB drive
- Wi-Fi
- Yes
- USB
- Yes
- SD / TF card
- Yes
- LightBurn compatible
- Yes
Size & power
- Width
- 800 mm
- Depth
- 575 mm
- Height
- 285 mm
- Weight
- 30.4 kg
- Rated power consumption
- 45 W
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
