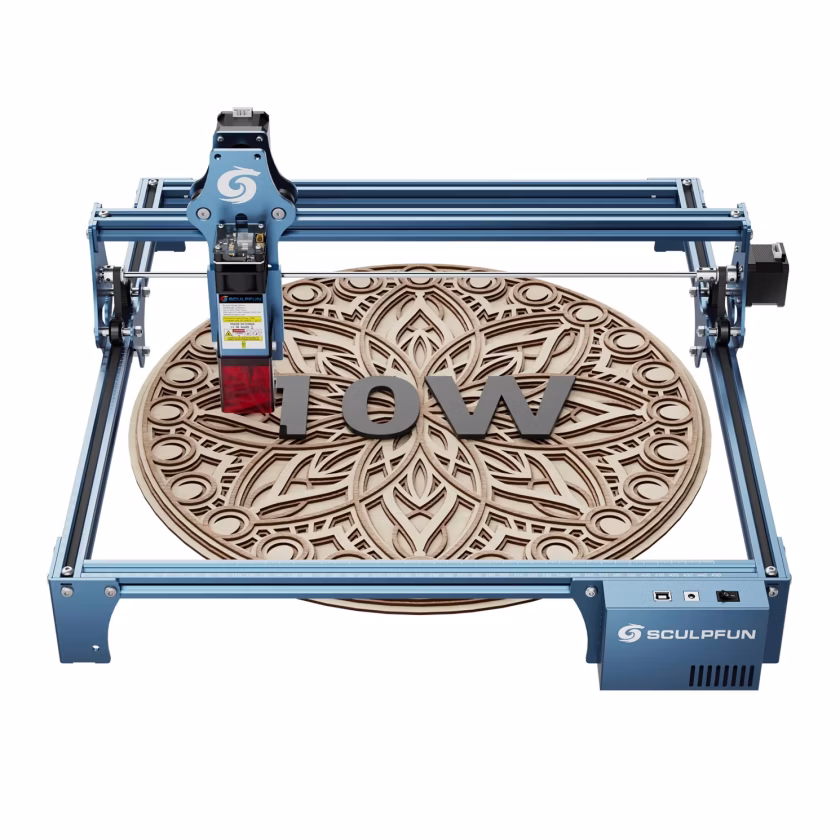

Sculpfun S30 Pro 10W vs Sculpfun S9 Pro 10W
What S30 Pro 10W does better (1) and where S9 Pro 10W wins (3) — every spec side by side.
vs
5.7Power & cutting6.3
8.1Precision7.6
6.6Work area8.2
Why is S30 Pro 10W better than S9 Pro 10W?
- Positioning accuracy0.005 mm vs 0.01 mm2×
Why is S9 Pro 10W better than S30 Pro 10W?
- Work area (surface)1,463 cm² vs 1,640 cm²+12%
- Work area depth (Y)385 mm vs 410 mm+6%
- Work area width (X)380 mm vs 400 mm+5%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | 450 nm |
| Laser power | ||
| Laser output power | 10 W | 10 W |
| Work area | ||
| Work area | 380 × 385 mm | 400 × 410 mm |
| Work area width (X) | 380 mm | 400 mm |
| Work area depth (Y) | 385 mm | 410 mm |
| Work area (surface) | 1,463 cm² | 1,640 cm² |
| Speed & cutting | ||
| Max cutting depth – wood / plywood (one pass) | — | 15 mm |
| Precision | ||
| Laser spot size | 0.08 mm | — |
| Positioning accuracy | 0.005 mm | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | — |
| Flame / fire detection | No | — |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | — |
| Built-in camera | No | — |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, Bluetooth, SD / USB drive | USB |
| Wi-Fi | Yes | — |
| USB | Yes | Yes |
| Bluetooth | Yes | — |
| SD / TF card | Yes | — |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Weight | — | 3 kg |
| Rated power consumption | 84 W | — |
| Input voltage | — | 100–240 V |
