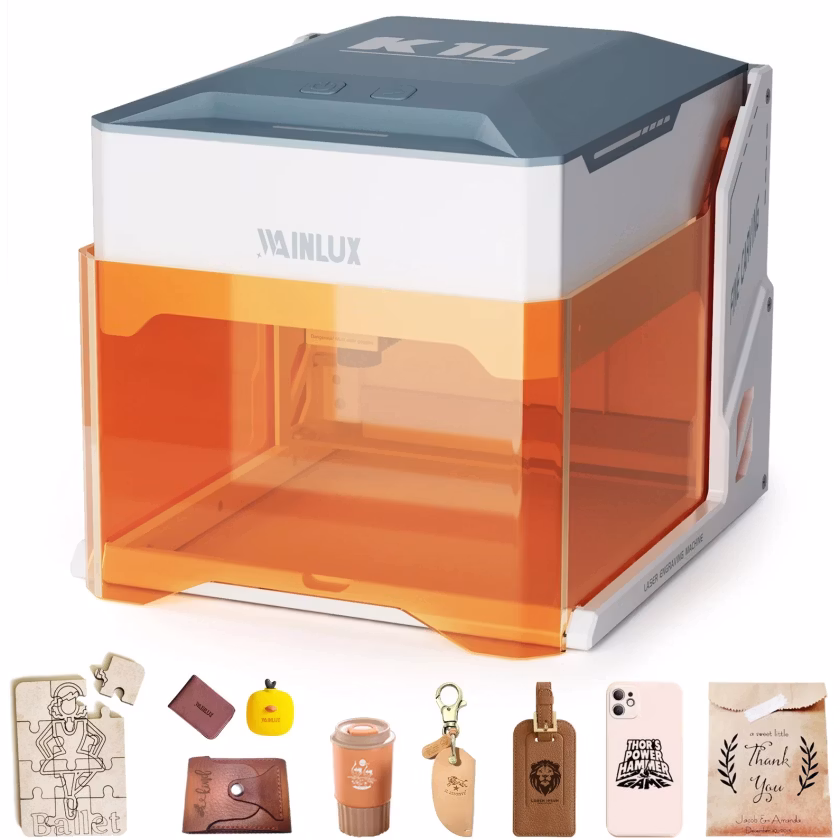

Sculpfun C2 7W vs Wainlux K10 Mini
What C2 7W does better (4) and where K10 Mini wins (2) — every spec side by side.
Why is C2 7W better than K10 Mini?
- Work area (surface)900 cm² vs 64 cm²14.1×
- Air assistYes · K10 Mini: No
- Work area width (X)300 mm vs 80 mm3.8×
- Work area depth (Y)300 mm vs 80 mm3.8×
Why is K10 Mini better than C2 7W?
- Enclosed (fully covered)No · C2 7W: Yes
- Wi-FiNo · C2 7W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | — |
| Laser power | ||
| Laser output power | 7 W | — |
| Work area | ||
| Work area | 300 × 300 mm | 80 × 80 mm |
| Work area width (X) | 300 mm | 80 mm |
| Work area depth (Y) | 300 mm | 80 mm |
| Work area (surface) | 900 cm² | 64 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 333 mm/s | — |
| Max cutting depth – wood / plywood (one pass) | 8 mm | — |
| Max cutting depth – acrylic | 5 mm | — |
| Precision | ||
| Laser spot size | 0.04 mm | — |
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Flame / fire detection | No | No |
| Emergency stop button | Yes | — |
| Exhaust fan | — | Yes |
| Laser shield / filter cover | Yes | Yes |
| Features | ||
| Air assist | Yes | No |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | No | Yes |
| USB | Yes | Yes |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | — | JPG, BMP, PNG |
| Size & power | ||
| Width | 456 mm | — |
| Depth | 442 mm | — |
| Height | 143 mm | — |
| Weight | 1.6 kg | — |
| Input voltage | — | 100–240 V |
