- Solis Duo 30W vs F1 Ultra 20W

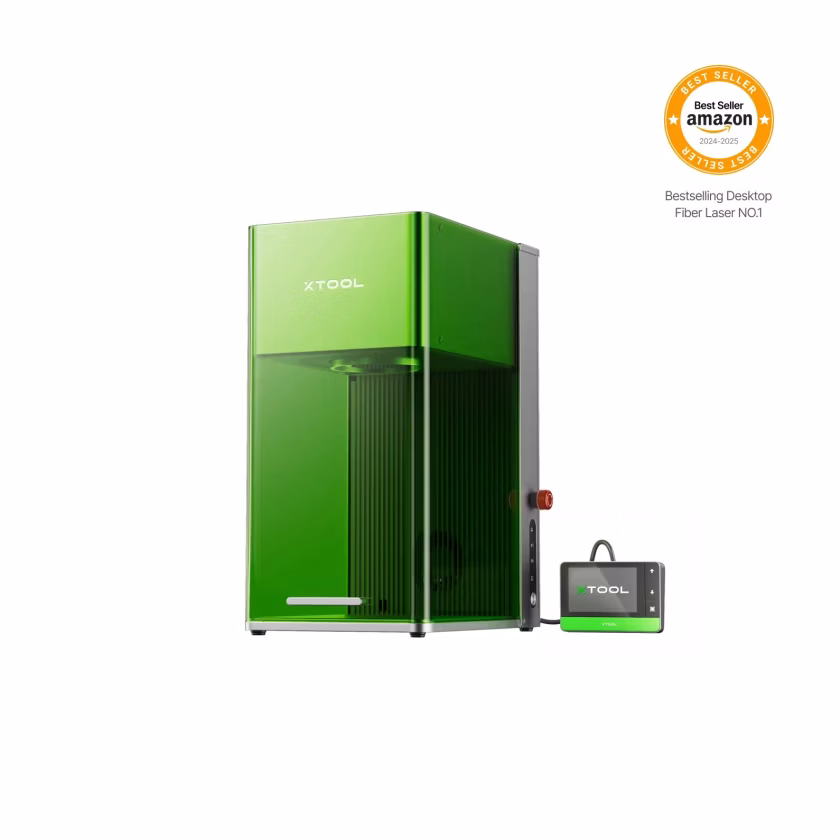

OMTech Solis Duo 30W vs xTool F1 Ultra 20W
What Solis Duo 30W does better (4) and where F1 Ultra 20W wins (1) — every spec side by side.
vs
4.0Power & cutting2.7
4.9Speed4.9
7.0Precision9.7
9.4Work area8.2
9.4Safety8.8
9.5Features & ease of use8.8
Why is Solis Duo 30W better than F1 Ultra 20W?
- Laser output power30 W vs 20 W+50%
- Work area (surface)625 cm² vs 484 cm²+29%
- Work area width (X)250 mm vs 220 mm+14%
- Work area depth (Y)250 mm vs 220 mm+14%
Why is F1 Ultra 20W better than Solis Duo 30W?
- Weight25.1 kg vs 14.7 kg+71%
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm), Blue diode (≈455 nm) | Fibre (1064 nm), Blue diode (≈455 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | Yes | Yes |
| Wavelength | 1,064 nm | — |
| Laser power | ||
| Laser output power | 30 W | 20 W |
| Work area | ||
| Work area | 250 × 250 mm | 220 × 220 mm |
| Work area width (X) | 250 mm | 220 mm |
| Work area depth (Y) | 250 mm | 220 mm |
| Work area (surface) | 625 cm² | 484 cm² |
| Conveyor / roll feeder support | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 10,000 mm/s |
| Precision | ||
| Laser spot size | — | 0.03 mm |
| Positioning accuracy | 0.002 mm | — |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Flame / fire detection | — | Yes |
| Built-in fume filter / purifier | — | Yes |
| Features | ||
| Built-in camera | Yes | Yes |
| Autofocus / auto height | Yes | Yes |
| Touchscreen / control panel | Yes | Yes |
| Offline engraving (no computer) | — | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Compatible software | LightBurn | LightBurn, xTool Creative Space |
| LightBurn compatible | Yes | Yes |
| File formats | — | SVG, DXF, PNG, JPG, BMP |
| Size & power | ||
| Width | — | 273 mm |
| Depth | — | 373 mm |
| Height | — | 492 mm |
| Weight | 25.1 kg | 14.7 kg |
| Rated power consumption | 360 W | — |
