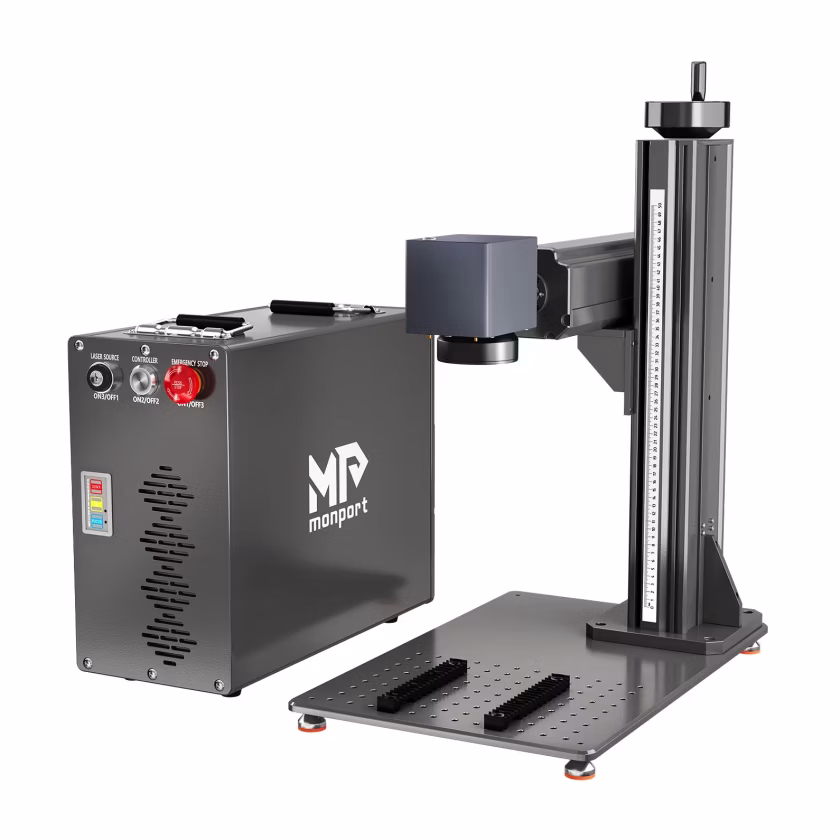

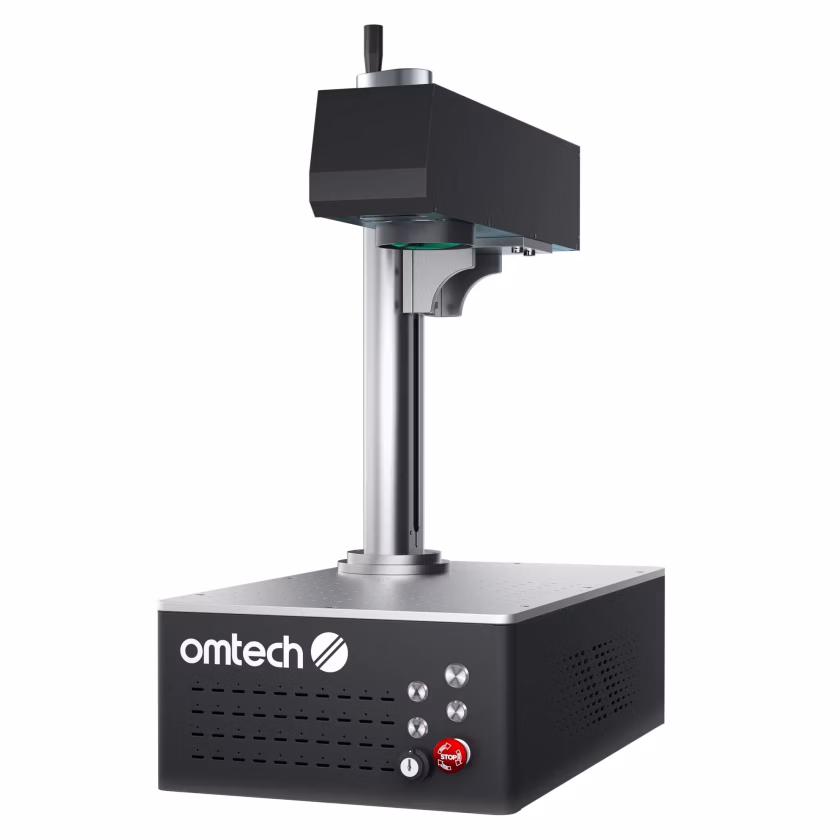

Monport GT Split 50W vs OMTech MOPA 30W
What GT Split 50W does better (2) and where MOPA 30W wins (1) — every spec side by side.
vs
5.5Power & cutting4.0
4.9Speed4.9
3.6Precision3.6
5.1Work area5.1
4.7Safety2.2
5.6Features & ease of use2.2
Why is GT Split 50W better than MOPA 30W?
- Laser output power50 W vs 30 W+67%
- Autofocus / auto heightYes · MOPA 30W: No
Why is MOPA 30W better than GT Split 50W?
- Weight34 kg vs 28 kg+21%
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm) | Fibre (1064 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| MOPA fibre source (adjustable pulse) | — | Yes |
| Wavelength | 1,064 nm | 1,064 nm |
| Laser power | ||
| Laser output power | 50 W | 30 W |
| Work area | ||
| Work area | 150 × 150 mm | 150 × 150 mm |
| Work area width (X) | 150 mm | 150 mm |
| Work area depth (Y) | 150 mm | 150 mm |
| Work area (surface) | 225 cm² | 225 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 10,000 mm/s |
| Precision | ||
| Positioning accuracy | 0.01 mm | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | — | Class 4 (open beam) |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | — |
| Connectivity & software | ||
| Connections | USB | USB |
| USB | Yes | Yes |
| Compatible software | LightBurn | EZCAD2 |
| LightBurn compatible | Yes | — |
| File formats | — | AI, BMP, DXF, GIF, JPG, PLT, PNG, TIF |
| Size & power | ||
| Width | — | 555 mm |
| Depth | — | 335 mm |
| Height | — | 720 mm |
| Weight | 34 kg | 28 kg |
| Rated power consumption | — | 60 W |
