- GPro Vision Split MOPA 100W vs Lumos Ultra 100W

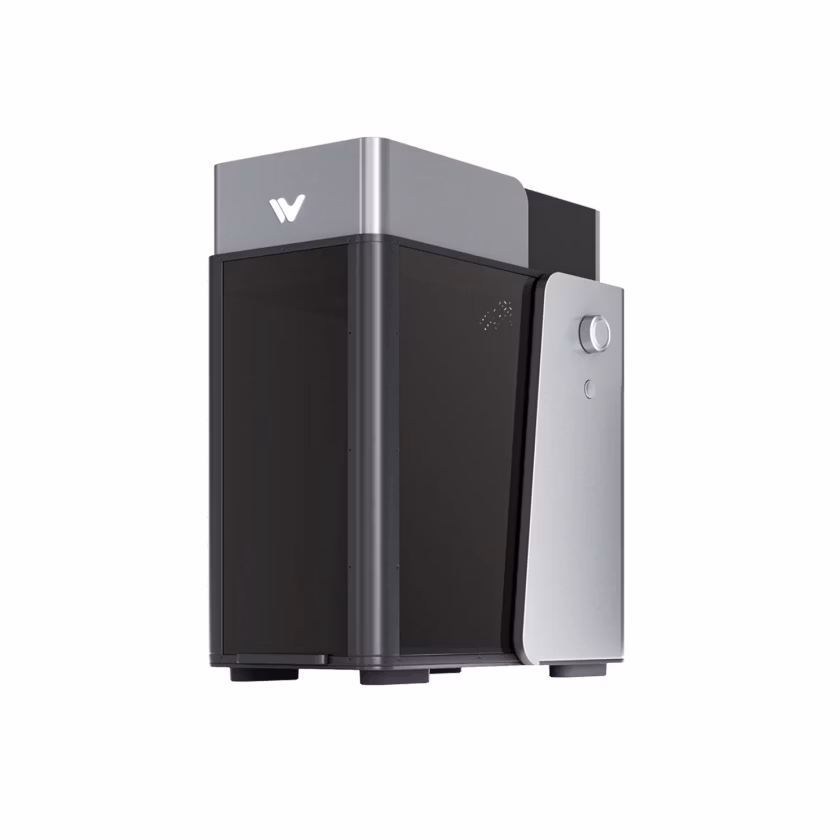

Monport GPro Vision Split MOPA 100W vs WeCreat Lumos Ultra 100W
What GPro Vision Split MOPA 100W does better (1) and where Lumos Ultra 100W wins (5) — every spec side by side.
vs
8.9Power & cutting8.9
4.9Speed9.6
8.5Work area9.0
4.7Safety7.9
5.6Features & ease of use3.4
Why is GPro Vision Split MOPA 100W better than Lumos Ultra 100W?
- Autofocus / auto heightYes · Lumos Ultra 100W: No
Why is Lumos Ultra 100W better than GPro Vision Split MOPA 100W?
- Max engraving / travel speed10,000 mm/s vs 16,000 mm/s+60%
- Work area (surface)404 cm² vs 441 cm²+9%
- Two laser sourcesNo · GPro Vision Split MOPA 100W: Yes
- Work area width (X)201 mm vs 210 mm+4%
- Work area depth (Y)201 mm vs 210 mm+4%
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm) | Fibre (1064 nm), UV (355 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | Yes |
| MOPA fibre source (adjustable pulse) | Yes | Yes |
| Wavelength | 1,064 nm | — |
| Laser power | ||
| Laser output power | 100 W | 100 W |
| Work area | ||
| Work area | 201 × 201 mm | 210 × 210 mm |
| Work area width (X) | 201 mm | 210 mm |
| Work area depth (Y) | 201 mm | 210 mm |
| Work area (surface) | 404 cm² | 441 cm² |
| Max workpiece height | — | 160 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 16,000 mm/s |
| Precision | ||
| Laser spot size | — | 0.1 mm |
| Positioning accuracy | — | 0.002 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Emergency stop button | — | Yes |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | — |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Compatible software | LightBurn | LightBurn, WeCreat MakeIt |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | — | 450 mm |
| Depth | — | 270 mm |
| Height | — | 443 mm |
| Weight | — | 20 kg |
| Rated power consumption | — | 240 W |
| Input voltage | — | 100–240 V |
