- GM Pro Integrated 30W vs Lumos Flex 15W

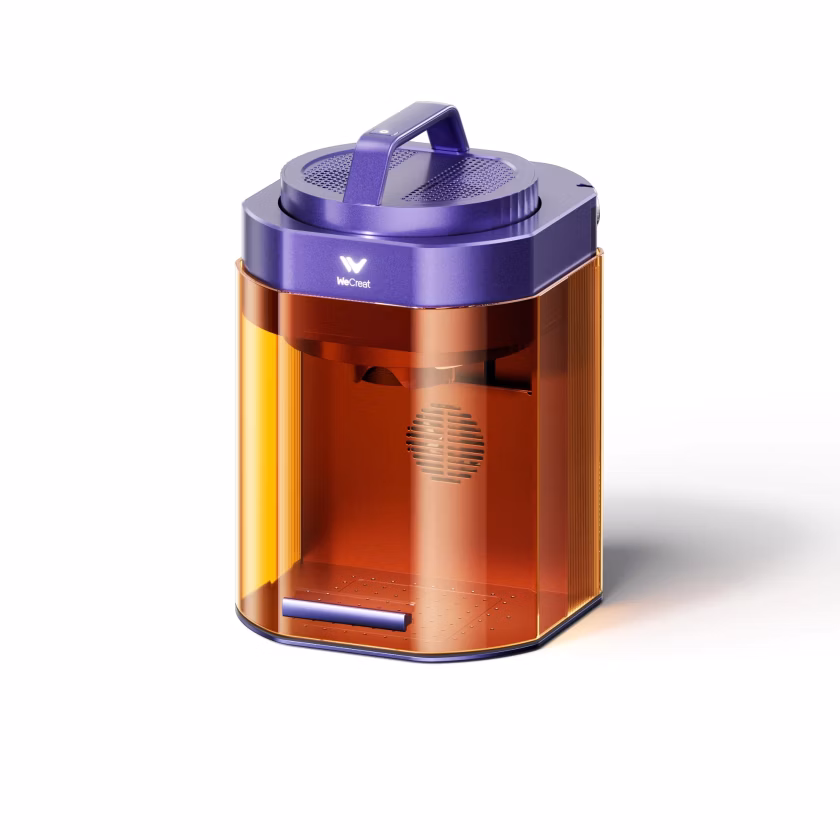

Monport GM Pro Integrated 30W vs WeCreat Lumos Flex 15W
What GM Pro Integrated 30W does better (5) and where Lumos Flex 15W wins (4) — every spec side by side.
vs
4.0Power & cutting2.0
4.9Speed4.9
3.6Precision2.1
5.1Work area4.0
4.7Safety8.6
5.6Features & ease of use9.8
Why is GM Pro Integrated 30W better than Lumos Flex 15W?
- Laser output power30 W vs 15 W2×
- Work area (surface)225 cm² vs 135 cm²+67%
- Positioning accuracy0.01 mm vs 0.1 mm10×
- Work area width (X)150 mm vs 116 mm+29%
- Work area depth (Y)150 mm vs 116 mm+29%
Why is Lumos Flex 15W better than GM Pro Integrated 30W?
- Enclosed (fully covered)No · GM Pro Integrated 30W: Yes
- Built-in cameraNo · GM Pro Integrated 30W: Yes
- Weight17.1 kg vs 3.1 kg5.5×
- Two laser sourcesNo · GM Pro Integrated 30W: Yes
Specifications
Side by side
| General | ||
| Laser sources | Fibre (1064 nm) | Fibre (1064 nm), Blue diode (≈455 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | Yes |
| Laser power | ||
| Laser output power | 30 W | 15 W |
| Work area | ||
| Work area | 150 × 150 mm | 116 × 116 mm |
| Work area width (X) | 150 mm | 116 mm |
| Work area depth (Y) | 150 mm | 116 mm |
| Work area (surface) | 225 cm² | 135 cm² |
| Max workpiece height | — | 100 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 10,000 mm/s |
| Precision | ||
| Laser spot size | — | 0.1 mm |
| Positioning accuracy | 0.01 mm | 0.1 mm |
| Safety | ||
| Enclosed (fully covered) | No | Yes |
| Emergency stop button | — | Yes |
| Features | ||
| Built-in camera | No | Yes |
| Autofocus / auto height | Yes | Yes |
| Rotary attachment support | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | — |
| USB | Yes | — |
| Compatible software | LightBurn | — |
| LightBurn compatible | Yes | — |
| Size & power | ||
| Width | — | 242 mm |
| Depth | — | 268 mm |
| Height | — | 350 mm |
| Weight | 17.1 kg | 3.1 kg |
| Rated power consumption | — | 168 W |
| Input voltage | — | 100–240 V |
