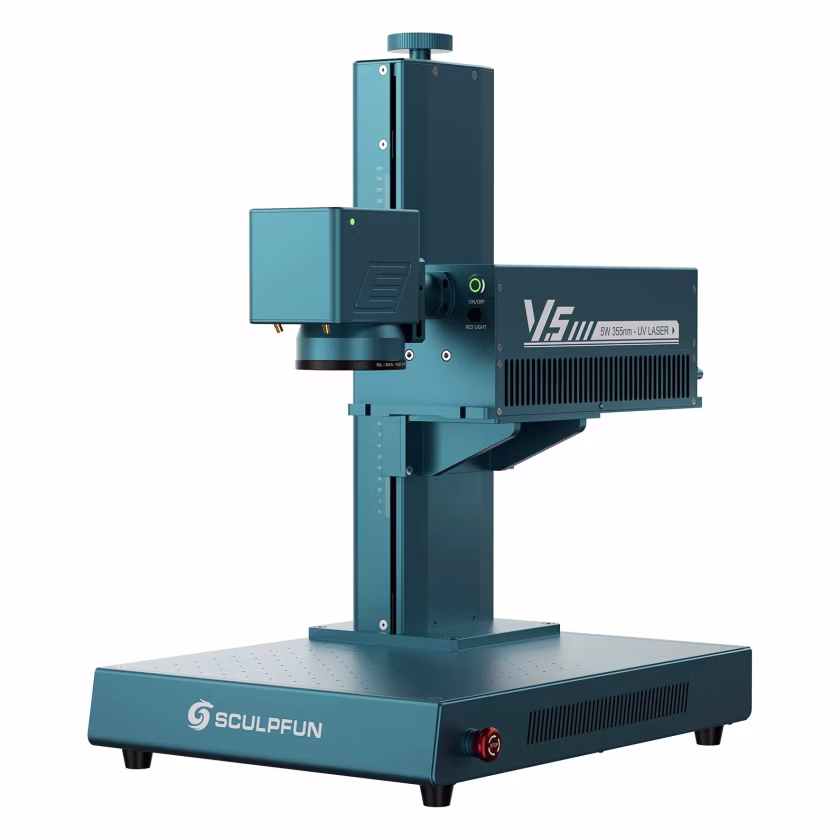

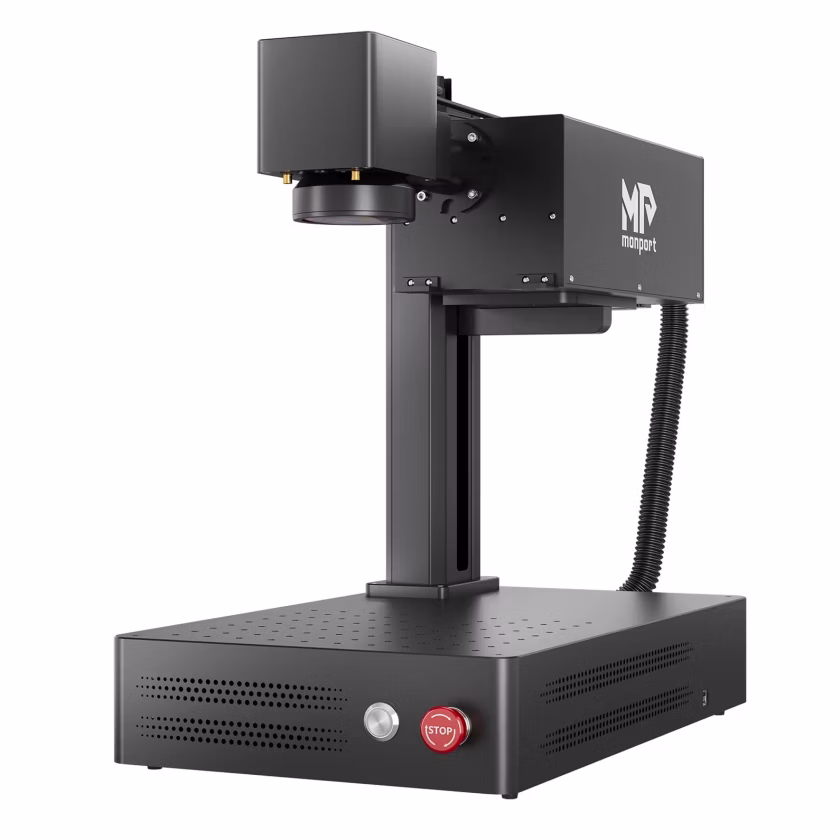

Monport 2D Inner 6W vs Sculpfun V5
What 2D Inner 6W does better (2) and where V5 wins (0) — every spec side by side.
vs
5.2Power & cutting3.2
3.6Speed3.6
7.5Precision7.5
6.4Work area6.4
3.0Safety5.7
3.2Features & ease of use5.9
Dimensions
Size comparison
2D Inner 6WV5
| 2D Inner 6W | V5 | Difference | |
|---|---|---|---|
| Height | 545 mm | 638 mm | −93 mm |
| Width | 290 mm | 387 mm | −97 mm |
| Depth | 500 mm | 592 mm | −92 mm |
| Weight | 15.6 kg | 26.7 kg | −11.1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is 2D Inner 6W better than V5?
- Laser output power6 W vs 5 W+20%
- Weight15.6 kg vs 26.7 kg+71%
Why is V5 better than 2D Inner 6W?
V5 has no measurable advantages in this pair.
Specifications
Side by side
| General | ||
| Laser sources | UV (355 nm) | UV (355 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| Wavelength | 355 nm | 355 nm |
| Laser power | ||
| Laser output power | 6 W | 5 W |
| Work area | ||
| Work area | 150 × 150 mm | 150 × 150 mm |
| Work area width (X) | 150 mm | 150 mm |
| Work area depth (Y) | 150 mm | 150 mm |
| Work area (surface) | 225 cm² | 225 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 10,000 mm/s | 10,000 mm/s |
| Precision | ||
| Positioning accuracy | 0.001 mm | 0.001 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | Class 4 (open beam) | — |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Water cooling | Yes | — |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | BMP, JPG, PNG, GIF, TIF, TIFF | — |
| Size & power | ||
| Width | 290 mm | 387 mm |
| Depth | 500 mm | 592 mm |
| Height | 545 mm | 638 mm |
| Weight | 15.6 kg | 26.7 kg |
| Rated power consumption | 400 W | — |
