- Ray7S 7.5W vs TS2 20W

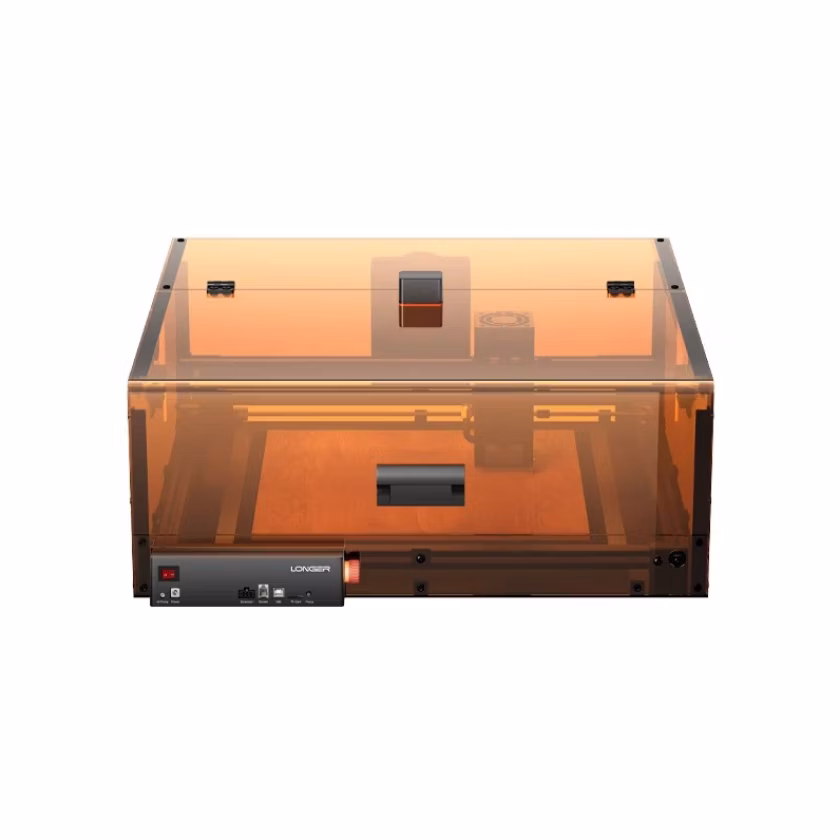

Longer Ray7S 7.5W vs Two Trees TS2 20W
What Ray7S 7.5W does better (1) and where TS2 20W wins (5) — every spec side by side.
vs
4.6Power & cutting7.7
8.7Precision2.1
5.3Work area8.5
8.3Safety3.2
6.9Features & ease of use7.9
Why is Ray7S 7.5W better than TS2 20W?
- Enclosed (fully covered)Yes · TS2 20W: No
Why is TS2 20W better than Ray7S 7.5W?
- Laser output power7.5 W vs 20 W2.7×
- Work area (surface)946 cm² vs 1,681 cm²+78%
- Autofocus / auto heightNo · Ray7S 7.5W: Yes
- Work area width (X)305 mm vs 410 mm+34%
- Work area depth (Y)310 mm vs 410 mm+32%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 7.5 W | 20 W |
| Work area | ||
| Work area | 305 × 310 mm | 410 × 410 mm |
| Work area width (X) | 305 mm | 410 mm |
| Work area depth (Y) | 310 mm | 410 mm |
| Work area (surface) | 946 cm² | 1,681 cm² |
| Work-area extension kit | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | 600 mm/s | — |
| Precision | ||
| Laser spot size | 0.06 mm | — |
| Positioning accuracy | — | 0.21 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | No |
| Laser safety class | Class 1 (eye-safe, enclosed) | — |
| Flame / fire detection | No | No |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | Yes |
| Rotary attachment support | — | Yes |
| Offline engraving (no computer) | Yes | Yes |
| Connectivity & software | ||
| Connections | Wi-Fi | USB, Wi-Fi, SD / USB drive |
| Wi-Fi | Yes | Yes |
| USB | — | Yes |
| SD / TF card | — | Yes |
| Phone app control | — | Yes |
| Compatible software | — | LightBurn, LaserGRBL |
| LightBurn compatible | — | Yes |
