- Master 50W vs P2S 55W

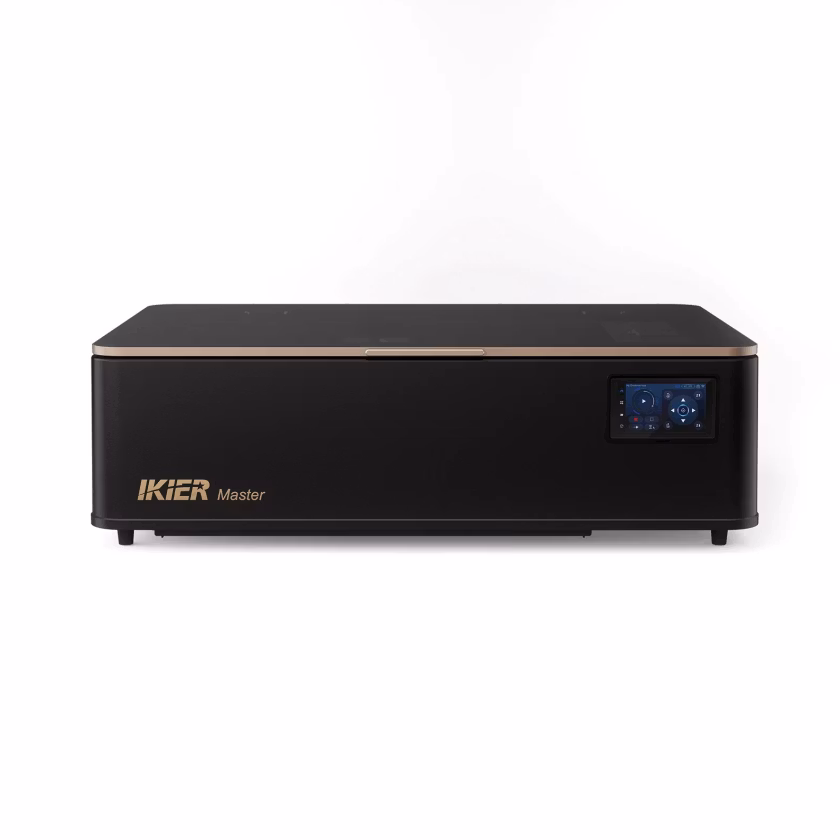

Ikier Master 50W vs xTool P2S 55W
What Master 50W does better (2) and where P2S 55W wins (8) — every spec side by side.
vs
4.4Power & cutting5.7
2.5Precision3.4
3.6Work area4.6
4.7Safety8.6
7.6Features & ease of use7.1
Why is Master 50W better than P2S 55W?
- Autofocus / auto heightYes · P2S 55W: No
- Weight28 kg vs 45 kg+61%
Why is P2S 55W better than Master 50W?
- Work area (surface)1,500 cm² vs 1,848 cm²+23%
- Max cutting depth – wood / plywood (one pass)13 mm vs 18 mm+38%
- Laser output power50 W vs 55 W+10%
- Pass-through slotNo · Master 50W: Yes
- Wi-FiNo · Master 50W: Yes
- Max cutting depth – acrylic18 mm vs 20 mm+11%
- Work area width (X)500 mm vs 600 mm+20%
- Work area depth (Y)300 mm vs 308 mm+3%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 50 W | 55 W |
| Work area | ||
| Work area | 500 × 300 mm | 600 × 308 mm |
| Work area width (X) | 500 mm | 600 mm |
| Work area depth (Y) | 300 mm | 308 mm |
| Work area (surface) | 1,500 cm² | 1,848 cm² |
| Max workpiece height | — | 71 mm |
| Pass-through slot | No | Yes |
| Conveyor / roll feeder support | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | — | 600 mm/s |
| Max cutting depth – wood / plywood (one pass) | 13 mm | 18 mm |
| Max cutting depth – acrylic | 18 mm | 20 mm |
| Precision | ||
| Laser spot size | 0.2 mm | 0.2 mm |
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Flame / fire detection | — | Yes |
| Emergency stop button | Yes | Yes |
| Lid interlock | Yes | — |
| Exhaust fan | — | Yes |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | Yes | Yes |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | Yes |
| Water cooling | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | Wi-Fi |
| Wi-Fi | No | Yes |
| USB | Yes | Yes |
| Ethernet (LAN) | — | Yes |
| Compatible software | LightBurn, AtomStack Studio | LightBurn, xTool Creative Space |
| LightBurn compatible | Yes | Yes |
| File formats | — | SVG, DXF, PNG, JPG, BMP |
| Size & power | ||
| Width | — | 1,000 mm |
| Depth | — | 639 mm |
| Height | — | 268 mm |
| Weight | 28 kg | 45 kg |
