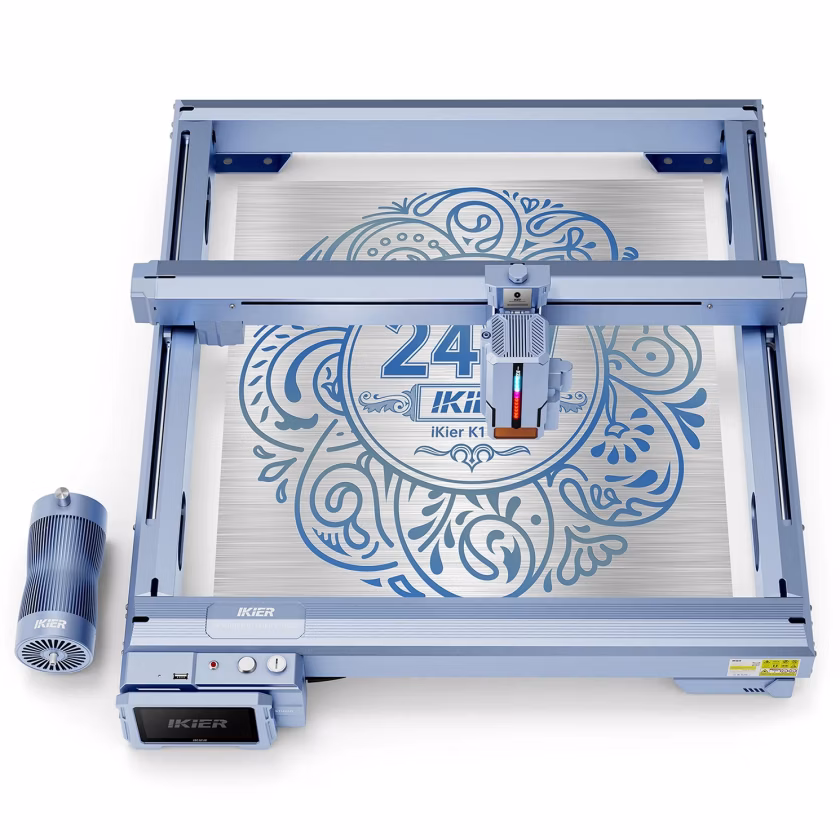

Ikier K1 Pro 24W vs Sculpfun S9 Pro 10W
What K1 Pro 24W does better (4) and where S9 Pro 10W wins (1) — every spec side by side.
vs
8.4Power & cutting6.3
6.8Precision7.6
8.5Work area8.2
Why is K1 Pro 24W better than S9 Pro 10W?
- Laser output power24 W vs 10 W2.4×
- Autofocus / auto heightYes · S9 Pro 10W: No
- Work area (surface)1,681 cm² vs 1,640 cm²+2%
- Work area width (X)410 mm vs 400 mm+2%
Why is S9 Pro 10W better than K1 Pro 24W?
- Weight12 kg vs 3 kg4×
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 450 nm |
| Laser power | ||
| Laser output power | 24 W | 10 W |
| Work area | ||
| Work area | 410 × 410 mm | 400 × 410 mm |
| Work area width (X) | 410 mm | 400 mm |
| Work area depth (Y) | 410 mm | 410 mm |
| Work area (surface) | 1,681 cm² | 1,640 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 800 mm/s | — |
| Max cutting depth – wood / plywood (one pass) | — | 15 mm |
| Precision | ||
| Laser spot size | 0.08 mm | — |
| Positioning accuracy | 0.01 mm | 0.01 mm |
| Linear rails | Yes | — |
| Safety | ||
| Enclosed (fully covered) | No | — |
| Flame / fire detection | Yes | — |
| Tilt / movement sensor | Yes | — |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | Yes | — |
| Built-in camera | No | — |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | Yes | — |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | USB | USB |
| Wi-Fi | Yes | — |
| USB | Yes | Yes |
| SD / TF card | Yes | — |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | SVG, DXF, JPG, PNG, BMP, TIF | — |
| Size & power | ||
| Width | 650 mm | — |
| Depth | 750 mm | — |
| Height | 222 mm | — |
| Weight | 12 kg | 3 kg |
| Input voltage | 100–240 V | 100–240 V |
