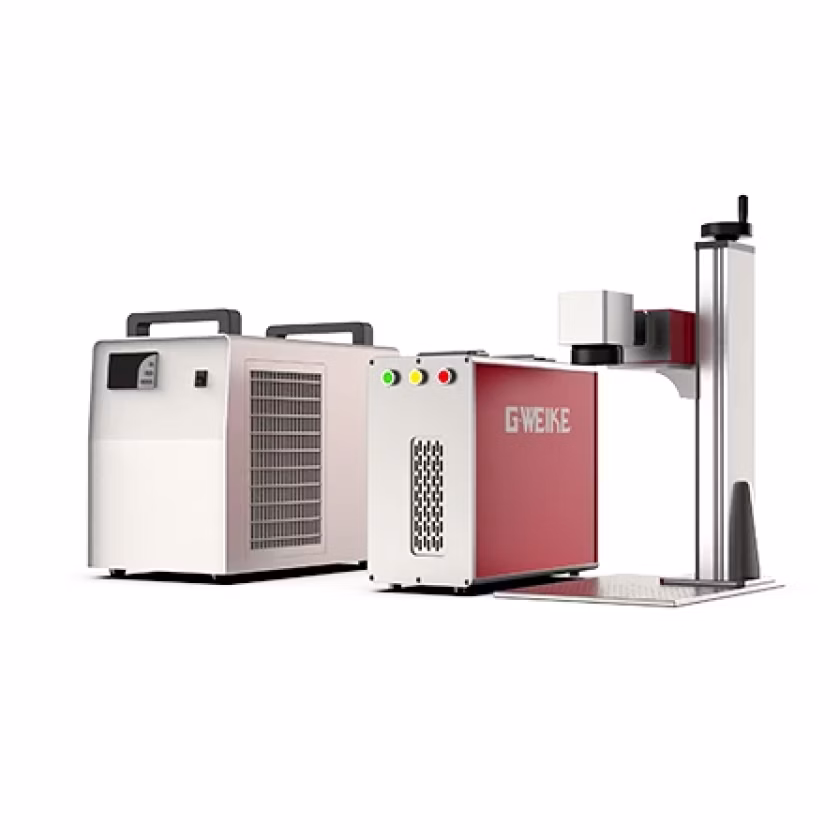

Gweike G7 10W vs Monport 2D Inner 10W
What G7 10W does better (1) and where 2D Inner 10W wins (3) — every spec side by side.
vs
7.8Power & cutting7.8
7.5Precision7.5
4.3Work area6.4
5.7Safety3.0
8.6Features & ease of use3.2
Why is G7 10W better than 2D Inner 10W?
- Autofocus / auto heightYes · 2D Inner 10W: No
Why is 2D Inner 10W better than G7 10W?
- Work area (surface)121 cm² vs 225 cm²+86%
- Work area width (X)110 mm vs 150 mm+36%
- Work area depth (Y)110 mm vs 150 mm+36%
Specifications
Side by side
| General | ||
| Laser sources | UV (355 nm), Fibre (1064 nm) | UV (355 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| Wavelength | 355 nm | 355 nm |
| Laser power | ||
| Laser output power | 10 W | 10 W |
| Work area | ||
| Work area | 110 × 110 mm | 150 × 150 mm |
| Work area width (X) | 110 mm | 150 mm |
| Work area depth (Y) | 110 mm | 150 mm |
| Work area (surface) | 121 cm² | 225 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | — | 15,001 mm/s |
| Precision | ||
| Positioning accuracy | 0.001 mm | 0.001 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Laser safety class | — | Class 4 (open beam) |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | — | Yes |
| Water cooling | — | Yes |
| Connectivity & software | ||
| Connections | — | USB |
| USB | — | Yes |
| Compatible software | LightBurn, EZCAD2 | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | — | BMP, JPG, PNG, GIF, TIF, TIFF |
| Size & power | ||
| Width | — | 290 mm |
| Depth | — | 500 mm |
| Height | — | 545 mm |
| Weight | — | 15.6 kg |
| Input voltage | 110–220 V | — |
