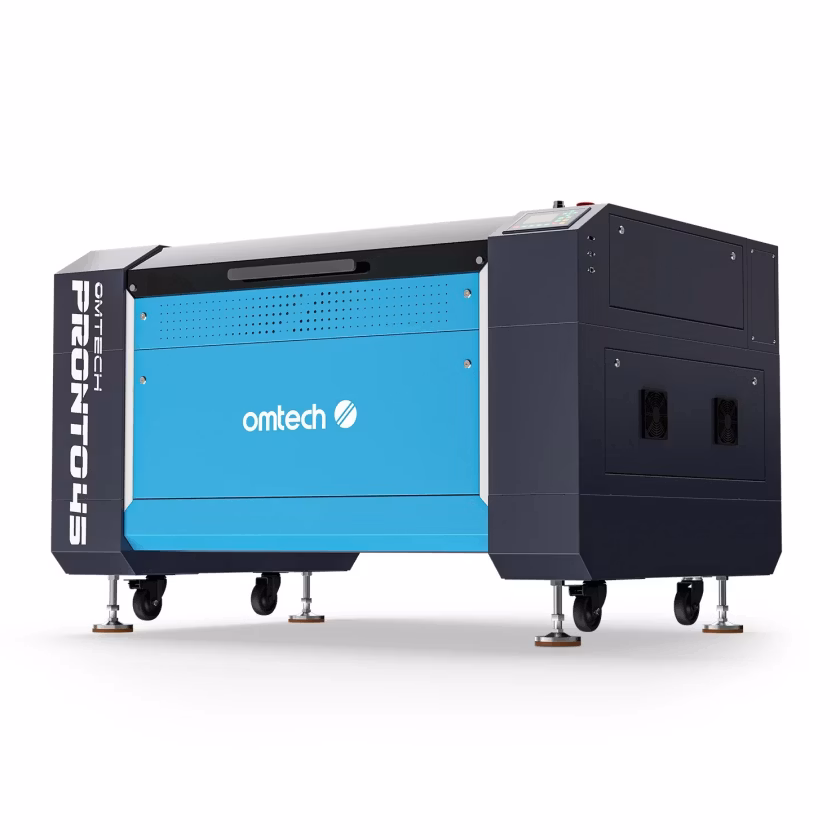

Glowforge Plus HD vs OMTech Pronto 45 100W
What Plus HD does better (2) and where Pronto 45 100W wins (1) — every spec side by side.
vs
8.0Safety9.2
Why is Plus HD better than Pronto 45 100W?
- Built-in cameraYes · Pronto 45 100W: No
- Wi-FiYes · Pronto 45 100W: No
Why is Pronto 45 100W better than Plus HD?
- Max workpiece height51 mm vs 221 mm4.4×
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | — | 100 W |
| Work area | ||
| Work area | — | 711 × 508 mm |
| Work area width (X) | — | 711 mm |
| Work area depth (Y) | — | 508 mm |
| Work area (surface) | — | 3,612 cm² |
| Max workpiece height | 51 mm | 221 mm |
| Pass-through slot | — | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | — | 600 mm/s |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Laser safety class | Class 1 (eye-safe, enclosed) | — |
| Flame / fire detection | — | Yes |
| Features | ||
| Built-in camera | Yes | No |
| Autofocus / auto height | — | No |
| Rotary attachment support | — | Yes |
| Water cooling | — | Yes |
| Connectivity & software | ||
| Connections | Wi-Fi | USB, Ethernet |
| Wi-Fi | Yes | No |
| USB | — | Yes |
| Ethernet (LAN) | — | Yes |
| Compatible software | — | RDWorks |
| File formats | — | AI, BMP, DXF, GIF, HPGL, JPG, PDF, PLT, PNG, SVG, TIFF |
| Size & power | ||
| Width | — | 1,651 mm |
| Depth | — | 1,120 mm |
| Height | — | 1,021 mm |
| Weight | — | 286.2 kg |
| Rated power consumption | — | 100 W |
