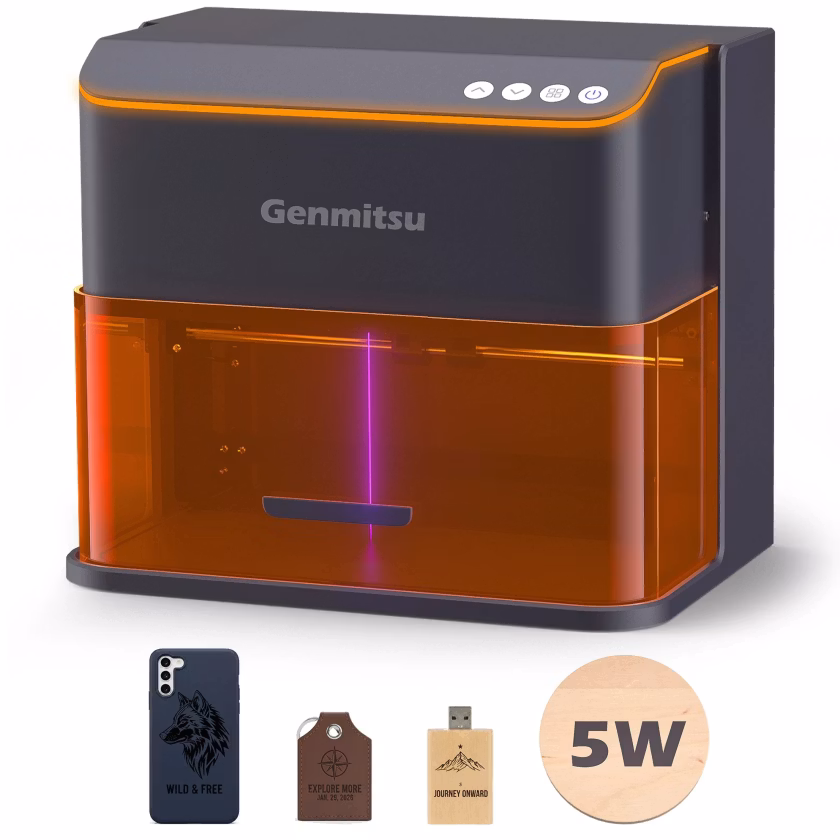

Genmitsu Kintix Hybrid 5W vs Sculpfun C2 14W
What Kintix Hybrid 5W does better (4) and where C2 14W wins (5) — every spec side by side.
vs
3.2Power & cutting5.2
9.5Speed5.3
7.2Precision9.4
3.7Work area4.8
7.4Safety5.6
6.2Features & ease of use4.6
Why is Kintix Hybrid 5W better than C2 14W?
- Max engraving / travel speed1,500 mm/s vs 333 mm/s4.5×
- Enclosed (fully covered)Yes · C2 14W: No
- Autofocus / auto heightYes · C2 14W: No
- Wi-FiYes · C2 14W: No
Why is C2 14W better than Kintix Hybrid 5W?
- Laser output power5 W vs 14 W2.8×
- Work area (surface)200 cm² vs 900 cm²4.5×
- Air assistNo · Kintix Hybrid 5W: Yes
- Work area depth (Y)100 mm vs 300 mm3×
- Work area width (X)200 mm vs 300 mm+50%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Galvo (scanning mirrors) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 455 nm | 455 nm |
| Laser power | ||
| Laser output power | 5 W | 14 W |
| Work area | ||
| Work area | 200 × 100 mm | 300 × 300 mm |
| Work area width (X) | 200 mm | 300 mm |
| Work area depth (Y) | 100 mm | 300 mm |
| Work area (surface) | 200 cm² | 900 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 1,500 mm/s | 333 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 8 mm |
| Max cutting depth – acrylic | — | 5 mm |
| Precision | ||
| Laser spot size | — | 0.04 mm |
| Positioning accuracy | 0.01 mm | — |
| Linear rails | Yes | — |
| Safety | ||
| Enclosed (fully covered) | Yes | No |
| Laser safety class | Class 1 (eye-safe, enclosed) | — |
| Flame / fire detection | No | No |
| Emergency stop button | Yes | Yes |
| Lid interlock | Yes | — |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | Yes | No |
| Rotary attachment support | — | Yes |
| Offline engraving (no computer) | Yes | — |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, SD / USB drive | USB |
| Wi-Fi | Yes | No |
| USB | Yes | Yes |
| SD / TF card | Yes | — |
| Phone app control | Yes | — |
| Compatible software | LightBurn | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, BMP, PNG, SVG, DXF, PLT, HPGL | — |
| Size & power | ||
| Width | — | 456 mm |
| Depth | — | 442 mm |
| Height | — | 143 mm |
| Weight | — | 1.6 kg |
| Rated power consumption | 60 W | — |
