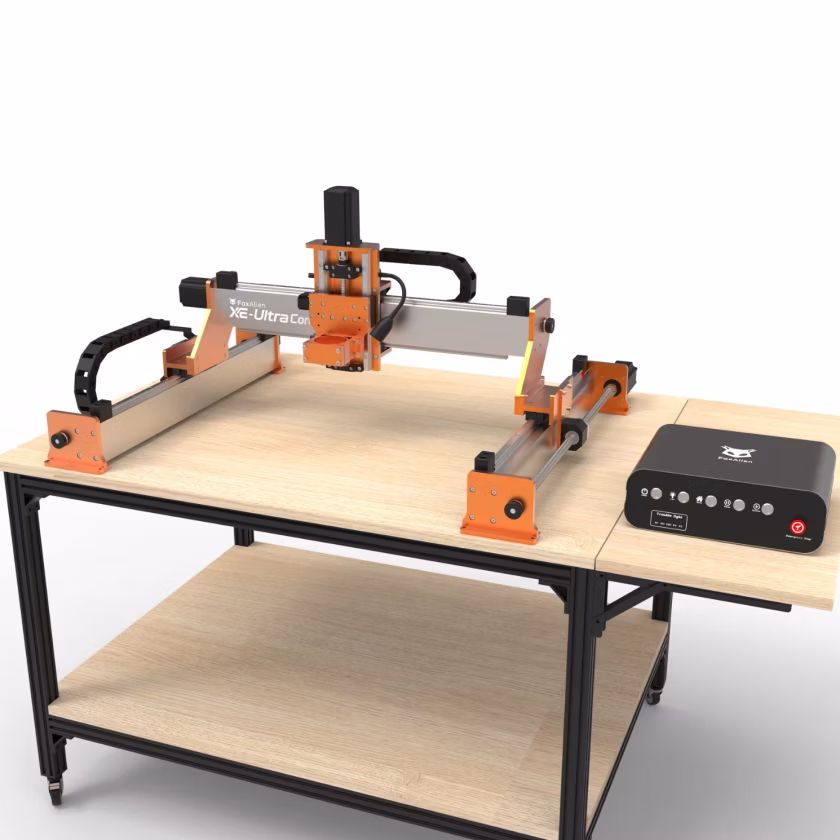

FoxAlien XE-Ultra Core vs Makera Z1
What XE-Ultra Core does better (4) and where Z1 wins (1) — every spec side by side.
vs
7.0Speed8.6
8.5Precision8.5
8.1Work area3.5
Why is XE-Ultra Core better than Z1?
- Work area (surface)1,936 cm² vs 400 cm²4.8×
- Work area width (X)440 mm vs 200 mm2.2×
- Work area depth (Y)440 mm vs 200 mm2.2×
- Z travel120 mm vs 100 mm+20%
Why is Z1 better than XE-Ultra Core?
- Max engraving / travel speed83 mm/s vs 100 mm/s+20%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Work area | ||
| Work area | 440 × 440 mm | 200 × 200 mm |
| Work area width (X) | 440 mm | 200 mm |
| Work area depth (Y) | 440 mm | 200 mm |
| Work area (surface) | 1,936 cm² | 400 cm² |
| Z travel | 120 mm | 100 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 83 mm/s | 100 mm/s |
| Precision | ||
| Closed-loop motors / servos | Yes | Yes |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | — | Yes |
| Features | ||
| Built-in camera | — | Yes |
| Offline engraving (no computer) | — | Yes |
| Laser module option (CNC) | — | Yes |
| Automatic tool changer | — | Yes |
| Tool length / Z probe | Yes | Yes |
| Connectivity & software | ||
| Connections | — | Wi-Fi, Bluetooth |
| Wi-Fi | — | Yes |
| Bluetooth | — | Yes |
| Phone app control | — | Yes |
| Compatible software | — | Fusion 360, Vectric VCarve |
| CNC milling | ||
| Spindle power | — | 200 W |
| Max spindle speed | — | 13,000 rpm |
| Size & power | ||
| Weight | — | 17 kg |
