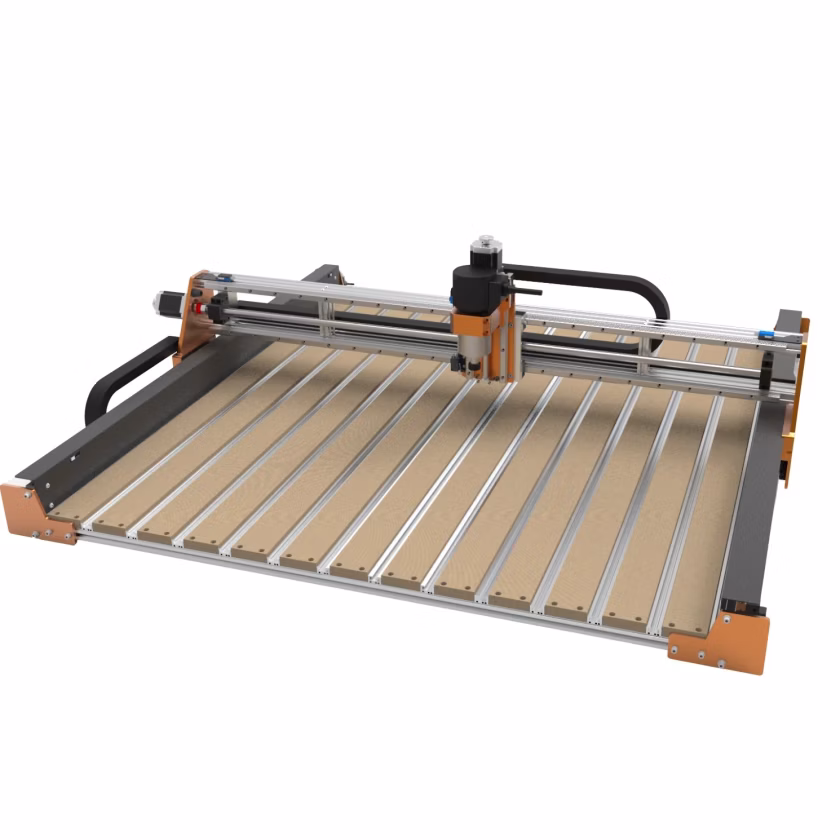

FoxAlien Vasto XXL V1 vs Makera Carvera
What Vasto XXL V1 does better (4) and where Carvera wins (1) — every spec side by side.
vs
4.9Power & cutting3.6
7.0Precision9.7
8.6Work area6.2
Why is Vasto XXL V1 better than Carvera?
- Work area (surface)10,000 cm² vs 864 cm²11.6×
- Spindle power400 W vs 200 W2×
- Work area width (X)1,000 mm vs 360 mm2.8×
- Work area depth (Y)1,000 mm vs 240 mm4.2×
Why is Carvera better than Vasto XXL V1?
- Z travel100 mm vs 140 mm+40%
Specifications
Side by side
| General | ||
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Work area | ||
| Work area | 1000 × 1000 mm | 360 × 240 mm |
| Work area width (X) | 1,000 mm | 360 mm |
| Work area depth (Y) | 1,000 mm | 240 mm |
| Work area (surface) | 10,000 cm² | 864 cm² |
| Z travel | 100 mm | 140 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 100 mm/s |
| Precision | ||
| Positioning accuracy | — | 0.01 mm |
| Closed-loop motors / servos | — | Yes |
| Linear rails | Yes | Yes |
| Ball screws | Yes | Yes |
| Safety | ||
| Enclosed (fully covered) | — | Yes |
| Features | ||
| Offline engraving (no computer) | — | Yes |
| Laser module option (CNC) | — | Yes |
| Automatic tool changer | — | Yes |
| Tool length / Z probe | — | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | Yes | Yes |
| Compatible software | — | Makera CAM |
| CNC milling | ||
| Spindle power | 400 W | 200 W |
| Max spindle speed | — | 15,000 rpm |
| Size & power | ||
| Weight | — | 50 kg |
