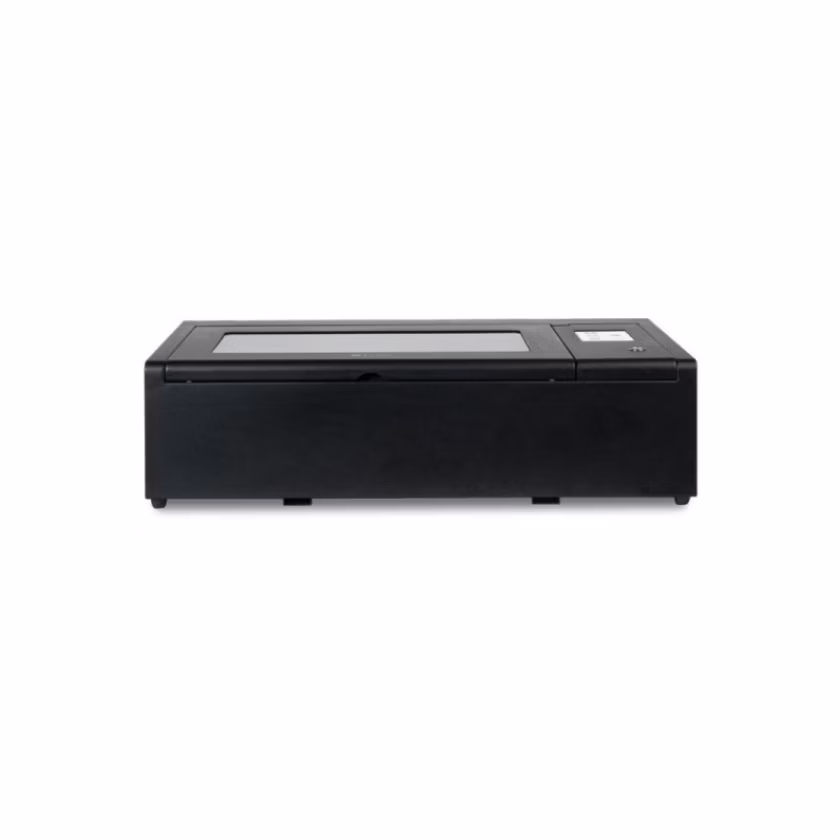

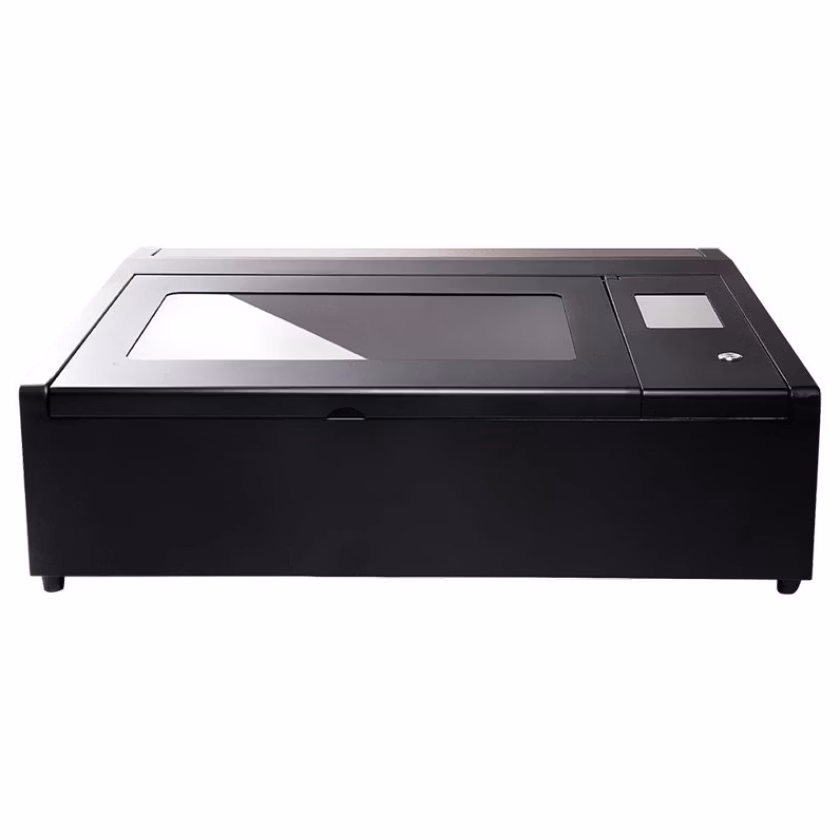

FLUX Beambox 40W vs FLUX Beambox Pro 50W
What Beambox 40W does better (1) and where Beambox Pro 50W wins (3) — every spec side by side.
vs
2.6Power & cutting3.4
2.8Speed2.8
3.2Work area4.8
4.7Safety4.7
9.5Features & ease of use9.5
Dimensions
Size comparison
Beambox 40WBeambox Pro 50W
| Beambox 40W | Beambox Pro 50W | Difference | |
|---|---|---|---|
| Height | 670 mm | 670 mm | = |
| Width | 250 mm | 250 mm | = |
| Depth | 830 mm | 1,030 mm | −200 mm |
| Weight | 40 kg | 55 kg | −15 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Beambox 40W better than Beambox Pro 50W?
- Weight40 kg vs 55 kg+38%
Why is Beambox Pro 50W better than Beambox 40W?
- Work area (surface)1,500 cm² vs 2,250 cm²+50%
- Laser output power40 W vs 50 W+25%
- Work area width (X)400 mm vs 600 mm+50%
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Laser power | ||
| Laser output power | 40 W | 50 W |
| Work area | ||
| Work area | 400 × 375 mm | 600 × 375 mm |
| Work area width (X) | 400 mm | 600 mm |
| Work area depth (Y) | 375 mm | 375 mm |
| Work area (surface) | 1,500 cm² | 2,250 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 305 mm/s | 305 mm/s |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Features | ||
| Built-in camera | Yes | Yes |
| Touchscreen / control panel | Yes | Yes |
| Connectivity & software | ||
| Connections | USB, Wi-Fi, Ethernet | USB, Wi-Fi, Ethernet |
| Wi-Fi | Yes | Yes |
| USB | Yes | Yes |
| Ethernet (LAN) | Yes | Yes |
| Compatible software | Beam Studio | Beam Studio |
| File formats | JPG, PNG, SVG, DXF | JPG, PNG, SVG, DXF |
| Size & power | ||
| Width | 250 mm | 250 mm |
| Depth | 830 mm | 1,030 mm |
| Height | 670 mm | 670 mm |
| Weight | 40 kg | 55 kg |
