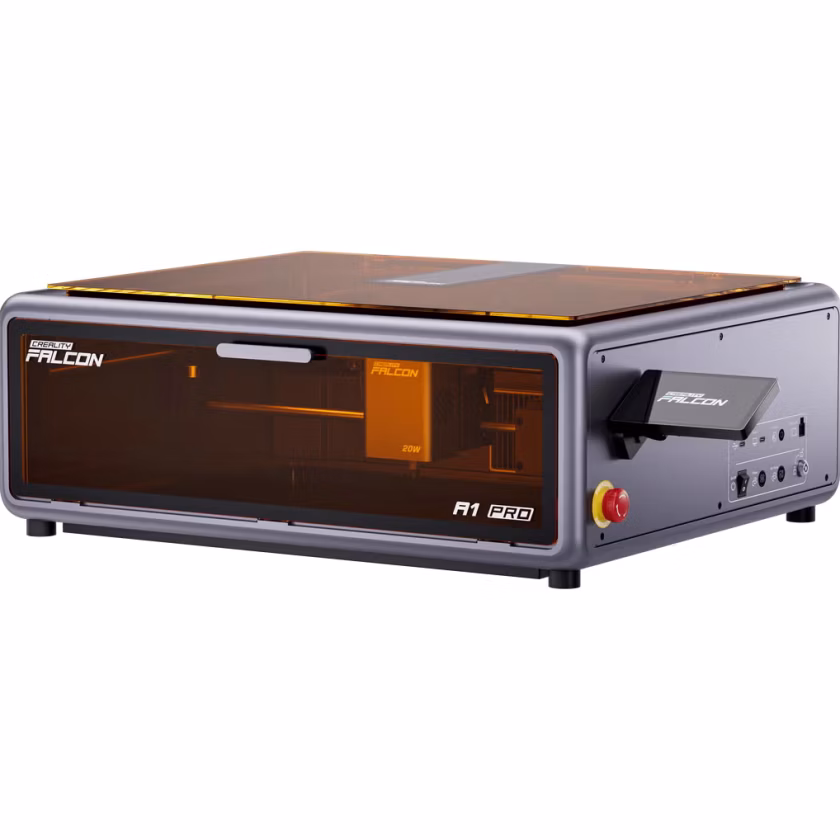

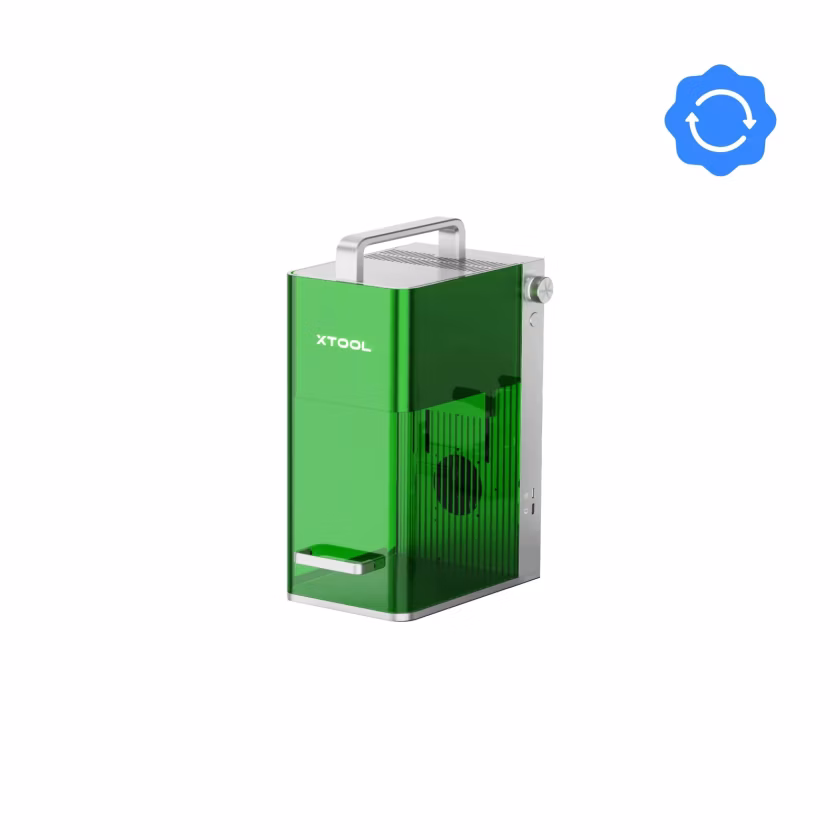

Creality Falcon A1 Pro vs xTool F1
What Falcon A1 Pro does better (3) and where F1 wins (2) — every spec side by side.
vs
7.7Power & cutting4.7
4.4Precision6.2
5.5Work area3.7
9.3Safety8.7
Dimensions
Size comparison
Falcon A1 ProF1
| Falcon A1 Pro | F1 | Difference | |
|---|---|---|---|
| Height | 211 mm | 334 mm | −123 mm |
| Width | 567 mm | 179 mm | +388 mm |
| Depth | 468 mm | 235 mm | +233 mm |
| Weight | 16.8 kg | 4.6 kg | +12.2 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Falcon A1 Pro better than F1?
- Work area (surface)959 cm² vs 132 cm²7.3×
- Work area depth (Y)358 mm vs 115 mm3.1×
- Work area width (X)268 mm vs 115 mm2.3×
Why is F1 better than Falcon A1 Pro?
- Laser spot size0.1 mm vs 0.08 mm+25%
- Weight16.8 kg vs 4.6 kg3.7×
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm), Infrared diode (1064 nm) |
| Motion system | Gantry (XY rails) | Galvo (scanning mirrors) |
| Two laser sources | — | Yes |
| Wavelength | 455 nm | 455 nm |
| Laser power | ||
| Laser output power | 20 W | — |
| Second laser output power | — | 10 W |
| Work area | ||
| Work area | 268 × 358 mm | 115 × 115 mm |
| Work area width (X) | 268 mm | 115 mm |
| Work area depth (Y) | 358 mm | 115 mm |
| Work area (surface) | 959 cm² | 132 cm² |
| Max workpiece height | — | 113 mm |
| Speed & cutting | ||
| Max engraving / travel speed | — | 4,000 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 6 mm |
| Precision | ||
| Laser spot size | 0.1 mm | 0.08 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Laser safety class | Class 1 (eye-safe, enclosed) | — |
| Flame / fire detection | — | No |
| Emergency stop button | — | Yes |
| Features | ||
| Air assist | — | No |
| Built-in camera | Yes | Yes |
| Autofocus / auto height | — | No |
| Touchscreen / control panel | Yes | — |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Compatible software | LightBurn, LaserGRBL, Falcon Design Space | LightBurn |
| LightBurn compatible | Yes | Yes |
| File formats | JPG, PNG, BMP, SVG, DXF | SVG, DXF, PNG, JPG, BMP |
| Size & power | ||
| Width | 567 mm | 179 mm |
| Depth | 468 mm | 235 mm |
| Height | 211 mm | 334 mm |
| Weight | 16.8 kg | 4.6 kg |
| Input voltage | 100–240 V | — |
