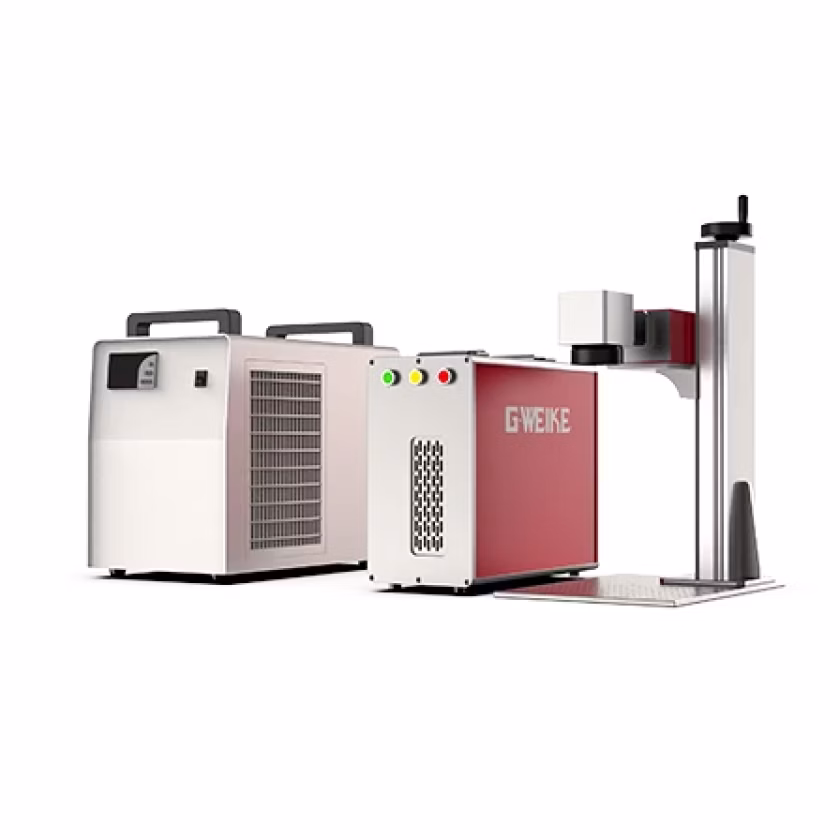

Cloudray Planar 10W vs Gweike G7 15W
What Planar 10W does better (3) and where G7 15W wins (2) — every spec side by side.
vs
6.6Power & cutting9.3
2.3Precision7.5
8.8Work area4.3
5.7Safety5.7
3.2Features & ease of use8.6
Why is Planar 10W better than G7 15W?
- Work area (surface)400 cm² vs 121 cm²3.3×
- Work area width (X)200 mm vs 110 mm+82%
- Work area depth (Y)200 mm vs 110 mm+82%
Why is G7 15W better than Planar 10W?
- Laser output power10 W vs 15 W+50%
- Autofocus / auto heightNo · Planar 10W: Yes
Specifications
Side by side
| General | ||
| Laser sources | UV (355 nm) | UV (355 nm), Fibre (1064 nm) |
| Motion system | Galvo (scanning mirrors) | Galvo (scanning mirrors) |
| Two laser sources | No | No |
| Wavelength | 355 nm | 355 nm |
| Laser power | ||
| Laser output power | 10 W | 15 W |
| Work area | ||
| Work area | 200 × 200 mm | 110 × 110 mm |
| Work area width (X) | 200 mm | 110 mm |
| Work area depth (Y) | 200 mm | 110 mm |
| Work area (surface) | 400 cm² | 121 cm² |
| Speed & cutting | ||
| Max engraving / travel speed | 15,000 mm/s | — |
| Max cutting depth – wood / plywood (one pass) | 10 mm | — |
| Precision | ||
| Laser spot size | 0.15 mm | — |
| Positioning accuracy | — | 0.001 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Features | ||
| Built-in camera | No | No |
| Autofocus / auto height | No | Yes |
| Rotary attachment support | Yes | — |
| Water cooling | Yes | — |
| Connectivity & software | ||
| Connections | USB | — |
| USB | Yes | — |
| Compatible software | LightBurn, EZCAD2 | LightBurn, EZCAD2 |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Rated power consumption | 675 W | — |
| Input voltage | — | 110–220 V |
