- EC 30W vs Pro 3655 Hybrid 150W

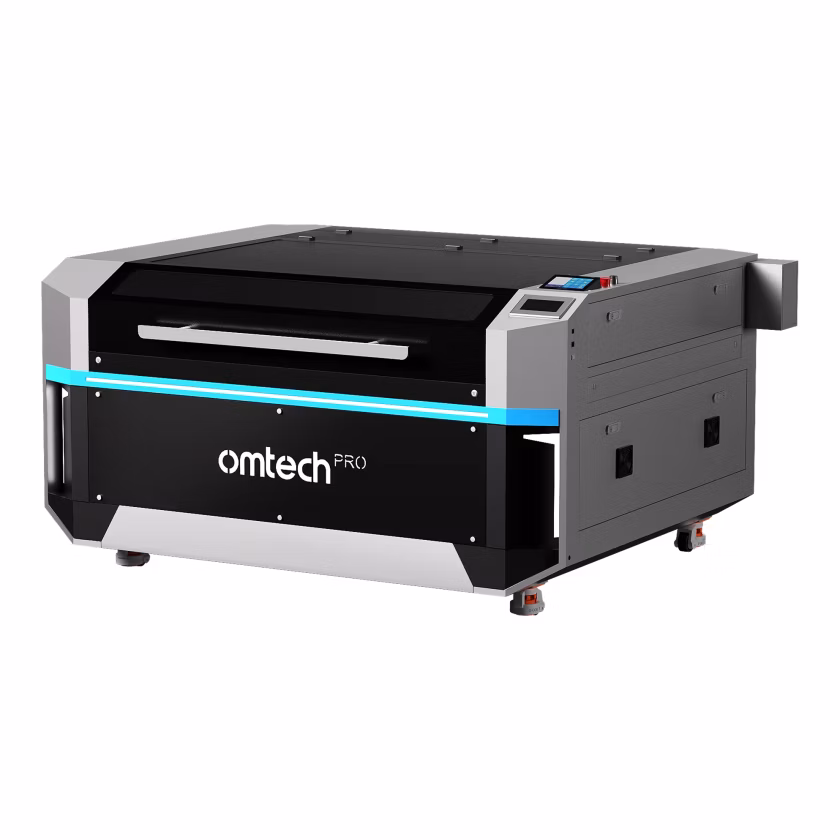

Cloudray EC 30W vs OMTech Pro 3655 Hybrid 150W
What EC 30W does better (0) and where Pro 3655 Hybrid 150W wins (7) — every spec side by side.
vs
2.2Power & cutting9.5
2.2Work area8.9
4.7Safety4.7
3.1Features & ease of use6.6
Why is EC 30W better than Pro 3655 Hybrid 150W?
EC 30W has no measurable advantages in this pair.
Why is Pro 3655 Hybrid 150W better than EC 30W?
- Laser output power30 W vs 150 W5×
- Work area (surface)441 cm² vs 11,730 cm²26.6×
- Autofocus / auto heightNo · EC 30W: Yes
- Work area width (X)210 mm vs 1,380 mm6.6×
- Work area depth (Y)210 mm vs 850 mm4×
- Pass-through slotNo · EC 30W: Yes
- Wi-FiNo · EC 30W: Yes
Specifications
Side by side
| General | ||
| Laser sources | CO2 (10.6 µm) | CO2 (10.6 µm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Laser power | ||
| Laser output power | 30 W | 150 W |
| Work area | ||
| Work area | 210 × 210 mm | 1380 × 850 mm |
| Work area width (X) | 210 mm | 1,380 mm |
| Work area depth (Y) | 210 mm | 850 mm |
| Work area (surface) | 441 cm² | 11,730 cm² |
| Pass-through slot | No | Yes |
| Speed & cutting | ||
| Max engraving / travel speed | — | 1,200 mm/s |
| Precision | ||
| Linear rails | — | Yes |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Emergency stop button | — | Yes |
| Exhaust fan | — | Yes |
| Features | ||
| Air assist | — | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | Yes |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | — | Yes |
| Water cooling | Yes | Yes |
| Connectivity & software | ||
| Connections | USB | USB, Wi-Fi, Ethernet |
| Wi-Fi | No | Yes |
| USB | Yes | Yes |
| Ethernet (LAN) | — | Yes |
| Compatible software | LightBurn | LightBurn |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | — | 2,096 mm |
| Depth | — | 1,643 mm |
| Height | — | 1,074 mm |
| Rated power consumption | 750 W | — |
