- Pixi Red 10W vs Ray2 7.5W

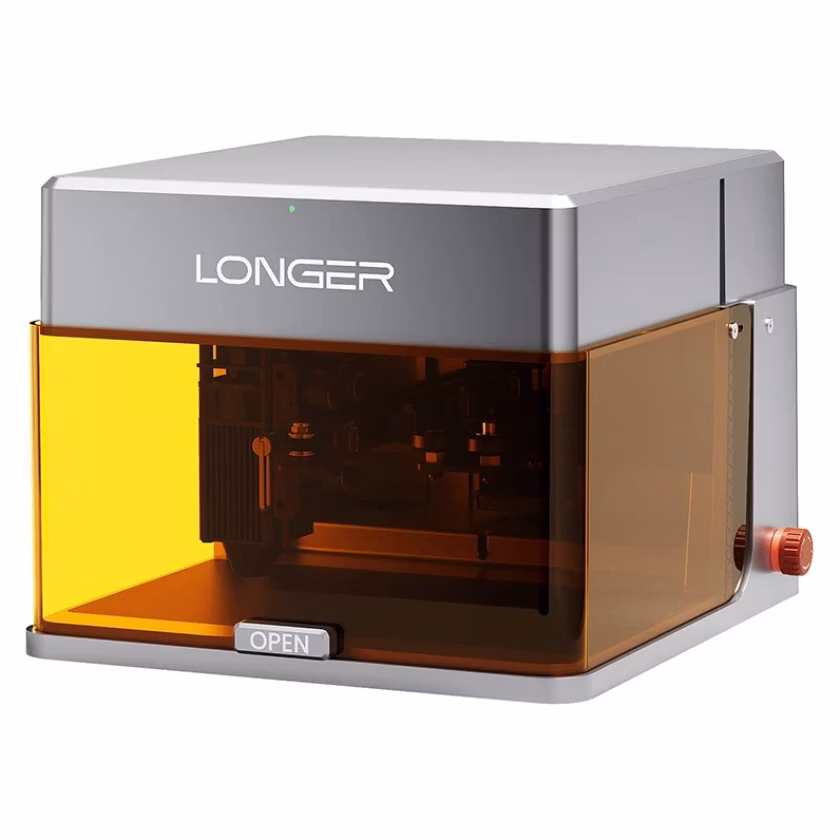

Algolaser Pixi Red 10W vs Longer Ray2 7.5W
What Pixi Red 10W does better (3) and where Ray2 7.5W wins (4) — every spec side by side.
vs
5.7Power & cutting4.6
2.4Speed4.4
9.4Precision6.2
2.3Work area2.6
8.6Safety8.2
8.2Features & ease of use5.0
Why is Pixi Red 10W better than Ray2 7.5W?
- Laser spot size0.04 mm vs 0.08 mm2×
- Laser output power10 W vs 7.5 W+33%
- Built-in cameraYes · Ray2 7.5W: No
Why is Ray2 7.5W better than Pixi Red 10W?
- Max engraving / travel speed100 mm/s vs 200 mm/s2×
- Work area (surface)100 cm² vs 143 cm²+43%
- Work area width (X)100 mm vs 130 mm+30%
- Work area depth (Y)100 mm vs 110 mm+10%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 450 nm | — |
| Laser power | ||
| Laser output power | 10 W | 7.5 W |
| Work area | ||
| Work area | 100 × 100 mm | 130 × 110 mm |
| Work area width (X) | 100 mm | 130 mm |
| Work area depth (Y) | 100 mm | 110 mm |
| Work area (surface) | 100 cm² | 143 cm² |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 100 mm/s | 200 mm/s |
| Max cutting depth – wood / plywood (one pass) | — | 10 mm |
| Precision | ||
| Laser spot size | 0.04 mm | 0.08 mm |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Laser safety class | — | Class 1 (eye-safe, enclosed) |
| Flame / fire detection | No | No |
| Built-in fume filter / purifier | Yes | — |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | Yes | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | — |
| Touchscreen / control panel | Yes | — |
| Connectivity & software | ||
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 265 mm | — |
| Depth | 214 mm | — |
| Height | 196 mm | — |
| Weight | 3.8 kg | — |
