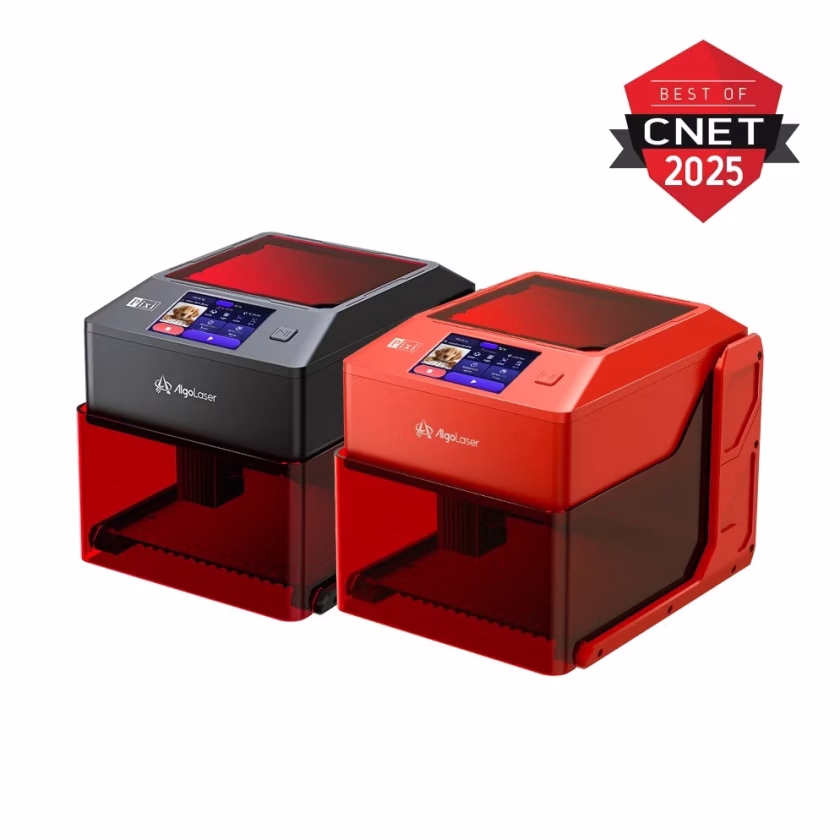

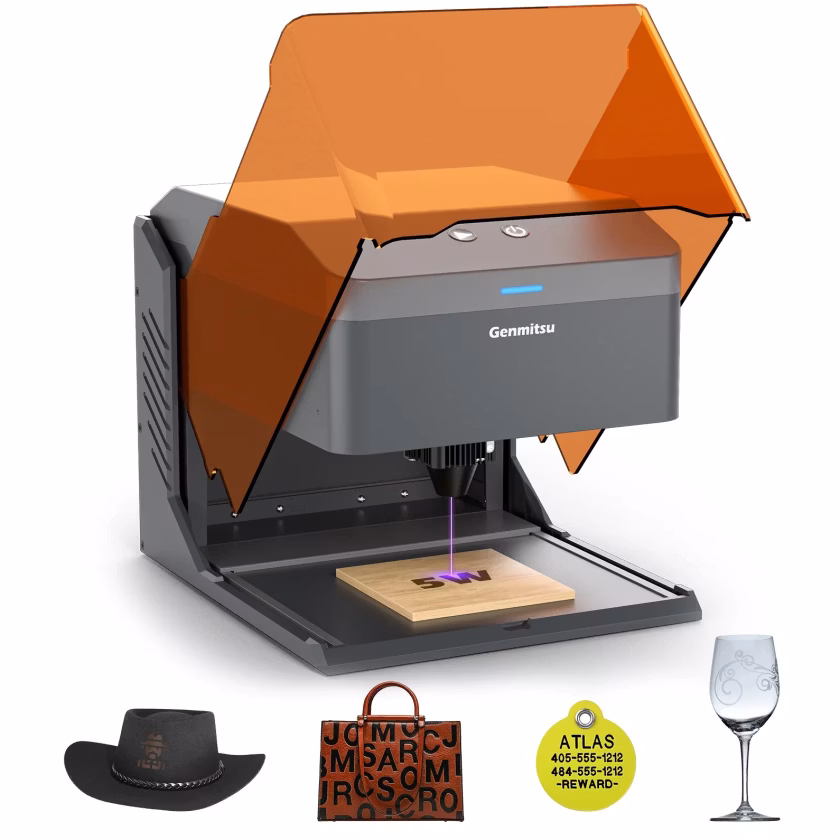

Algolaser Pixi 5W vs Genmitsu Kiosk 10W
What Pixi 5W does better (1) and where Kiosk 10W wins (3) — every spec side by side.
Dimensions
Size comparison
Pixi 5WKiosk 10W
| Pixi 5W | Kiosk 10W | Difference | |
|---|---|---|---|
| Height | 196 mm | 220 mm | −24 mm |
| Width | 265 mm | 235 mm | +30 mm |
| Depth | 214 mm | 280 mm | −66 mm |
| Weight | 3.8 kg | 2.8 kg | +1 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Pixi 5W better than Kiosk 10W?
- Built-in cameraYes · Kiosk 10W: No
Why is Kiosk 10W better than Pixi 5W?
- Laser output power5 W vs 10 W2×
- Max engraving / travel speed100 mm/s vs 200 mm/s2×
- Weight3.8 kg vs 2.8 kg+36%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | 450 nm | — |
| Laser power | ||
| Laser output power | 5 W | 10 W |
| Work area | ||
| Work area | 100 × 100 mm | 100 × 100 mm |
| Work area width (X) | 100 mm | 100 mm |
| Work area depth (Y) | 100 mm | 100 mm |
| Work area (surface) | 100 cm² | 100 cm² |
| Max workpiece height | — | 70 mm |
| Work-area extension kit | Yes | — |
| Speed & cutting | ||
| Max engraving / travel speed | 100 mm/s | 200 mm/s |
| Precision | ||
| Laser spot size | 0.04 mm | — |
| Positioning accuracy | — | 0.01 mm |
| Safety | ||
| Enclosed (fully covered) | No | No |
| Flame / fire detection | No | No |
| Emergency stop button | — | No |
| Tilt / movement sensor | — | Yes |
| Built-in fume filter / purifier | Yes | — |
| Features | ||
| Air assist | Yes | Yes |
| Built-in camera | Yes | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | Yes | Yes |
| Touchscreen / control panel | Yes | — |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi, SD / USB drive |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| SD / TF card | — | Yes |
| Compatible software | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| LightBurn compatible | Yes | Yes |
| Size & power | ||
| Width | 265 mm | 235 mm |
| Depth | 214 mm | 280 mm |
| Height | 196 mm | 220 mm |
| Weight | 3.8 kg | 2.8 kg |
