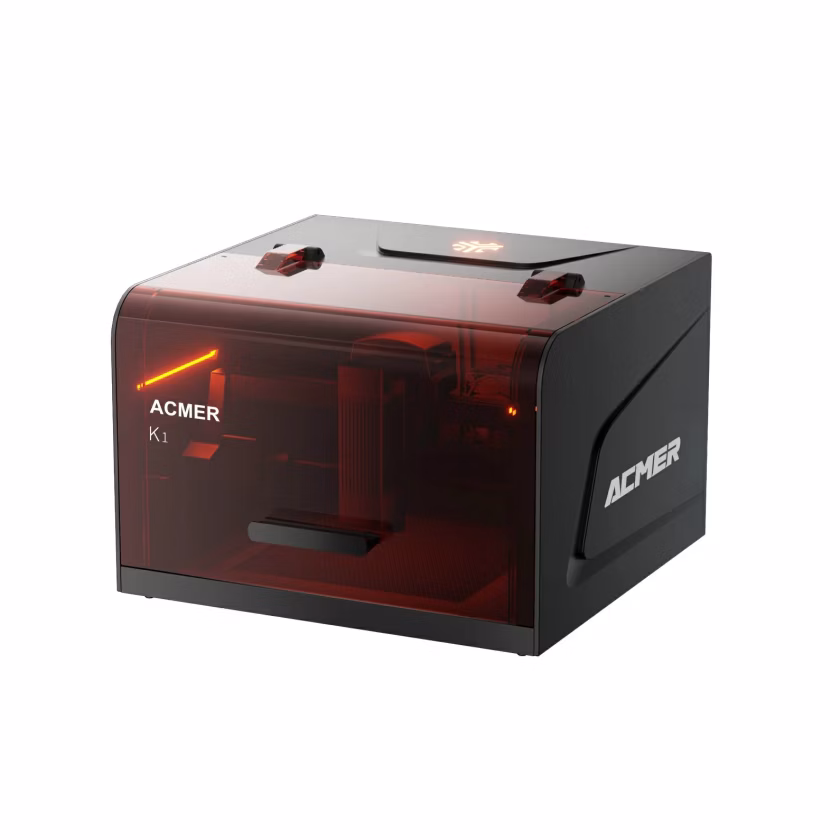

Acmer K1 12W vs Genmitsu Kortek 10W
What K1 12W does better (2) and where Kortek 10W wins (3) — every spec side by side.
vs
6.7Power & cutting5.7
3.5Speed2.6
3.9Work area4.2
9.6Safety8.3
2.9Features & ease of use7.4
Why is K1 12W better than Kortek 10W?
- Laser output power12 W vs 10 W+20%
- Max engraving / travel speed167 mm/s vs 117 mm/s+43%
Why is Kortek 10W better than K1 12W?
- Work area (surface)225 cm² vs 300 cm²+33%
- Air assistNo · K1 12W: Yes
- Work area depth (Y)150 mm vs 200 mm+33%
Specifications
Side by side
| General | ||
| Laser sources | Blue diode (≈455 nm) | Blue diode (≈455 nm), Infrared diode (1064 nm) |
| Motion system | Gantry (XY rails) | Gantry (XY rails) |
| Two laser sources | No | No |
| Wavelength | — | 455 nm |
| Laser power | ||
| Laser output power | 12 W | 10 W |
| Work area | ||
| Work area | 150 × 150 mm | 150 × 200 mm |
| Work area width (X) | 150 mm | 150 mm |
| Work area depth (Y) | 150 mm | 200 mm |
| Work area (surface) | 225 cm² | 300 cm² |
| Max workpiece height | — | 60 mm |
| Speed & cutting | ||
| Max engraving / travel speed | 167 mm/s | 117 mm/s |
| Precision | ||
| Positioning accuracy | 0.04 mm | — |
| Safety | ||
| Enclosed (fully covered) | Yes | Yes |
| Laser safety class | — | Class 1 (eye-safe, enclosed) |
| Flame / fire detection | No | No |
| Laser shield / filter cover | — | Yes |
| Features | ||
| Air assist | No | Yes |
| Built-in camera | No | No |
| Autofocus / auto height | No | No |
| Rotary attachment support | — | Yes |
| Connectivity & software | ||
| Connections | — | USB, Wi-Fi |
| Wi-Fi | — | Yes |
| USB | — | Yes |
| Phone app control | — | Yes |
| Compatible software | LightBurn | — |
| LightBurn compatible | Yes | — |
| Size & power | ||
| Width | 286 mm | — |
| Depth | 273 mm | — |
| Height | 190 mm | — |
| Weight | 2.4 kg | — |
| Rated power consumption | — | 60 W |
